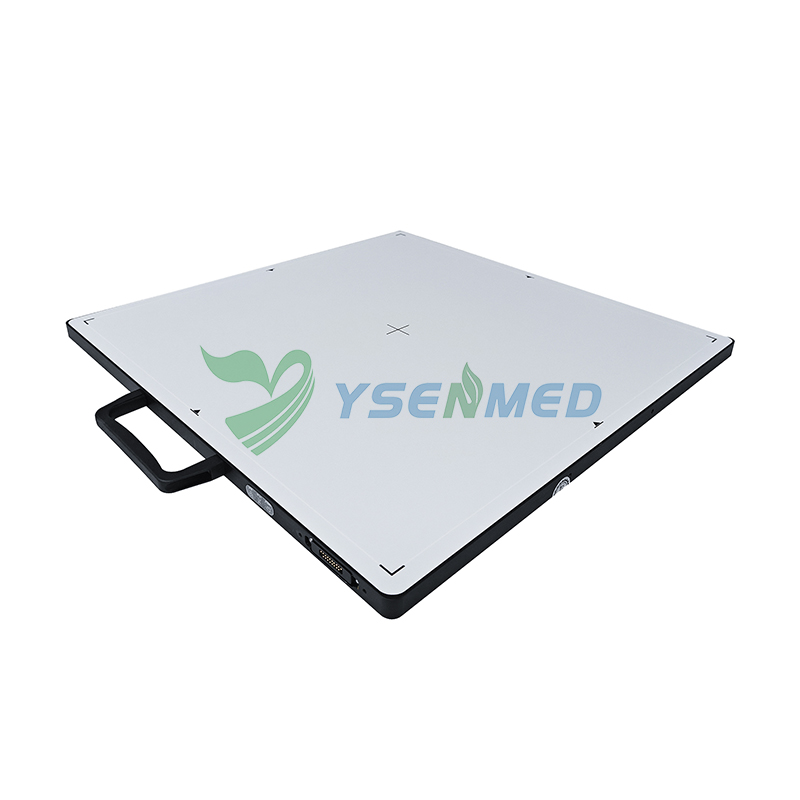

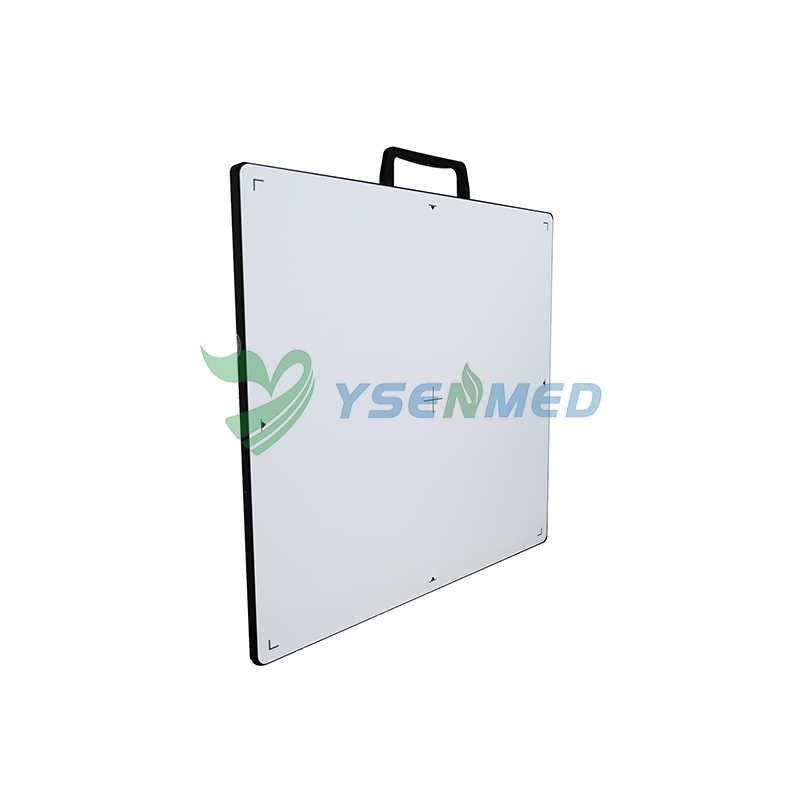

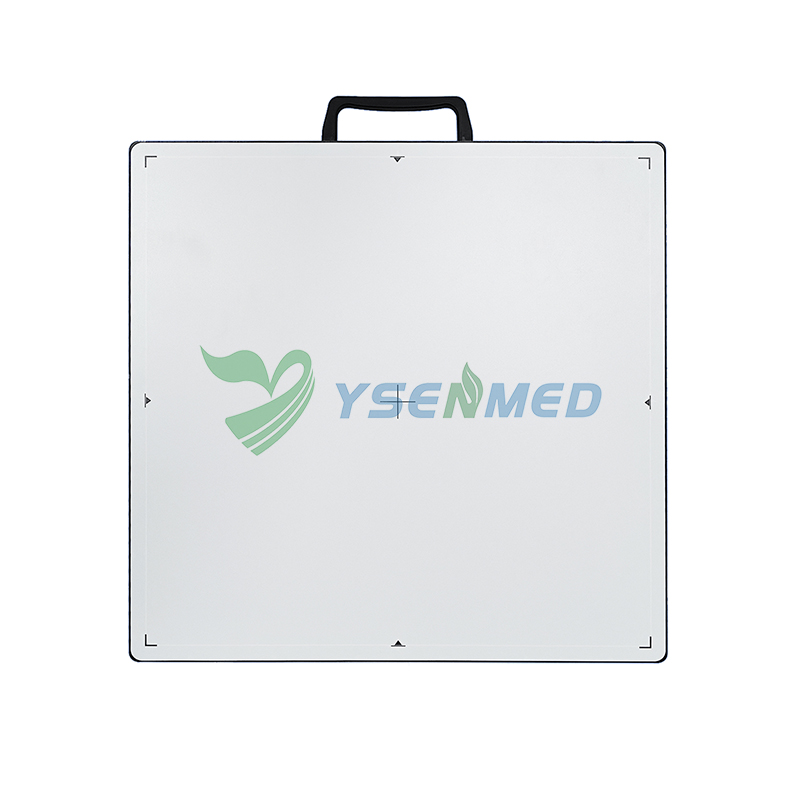

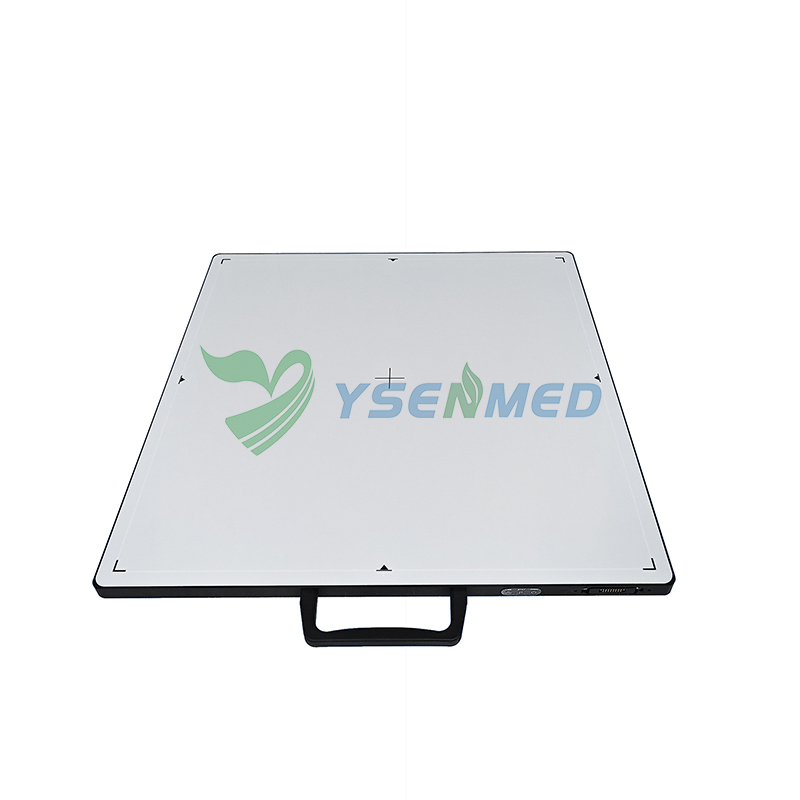

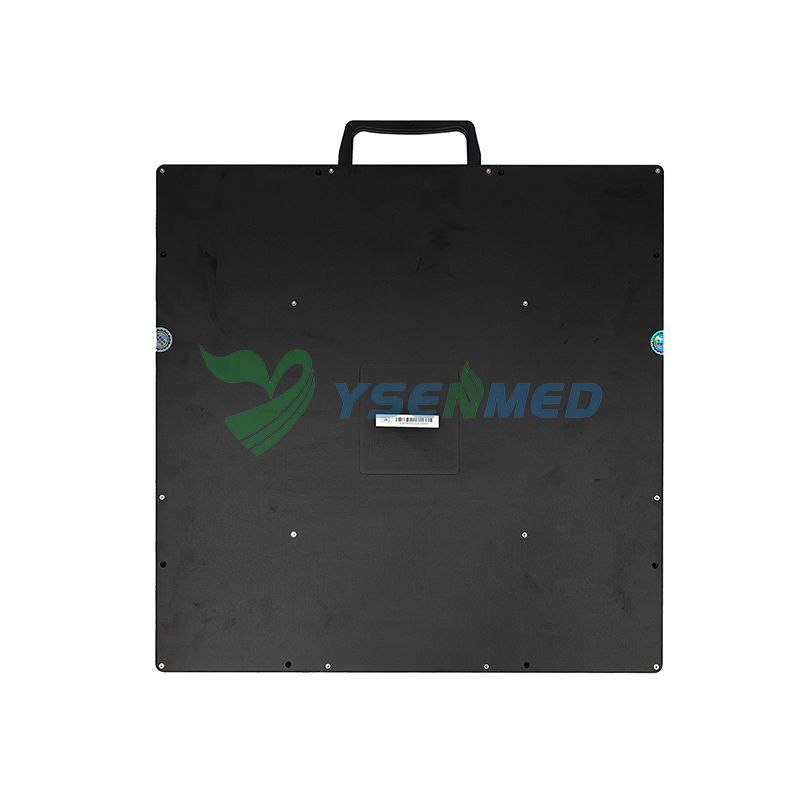

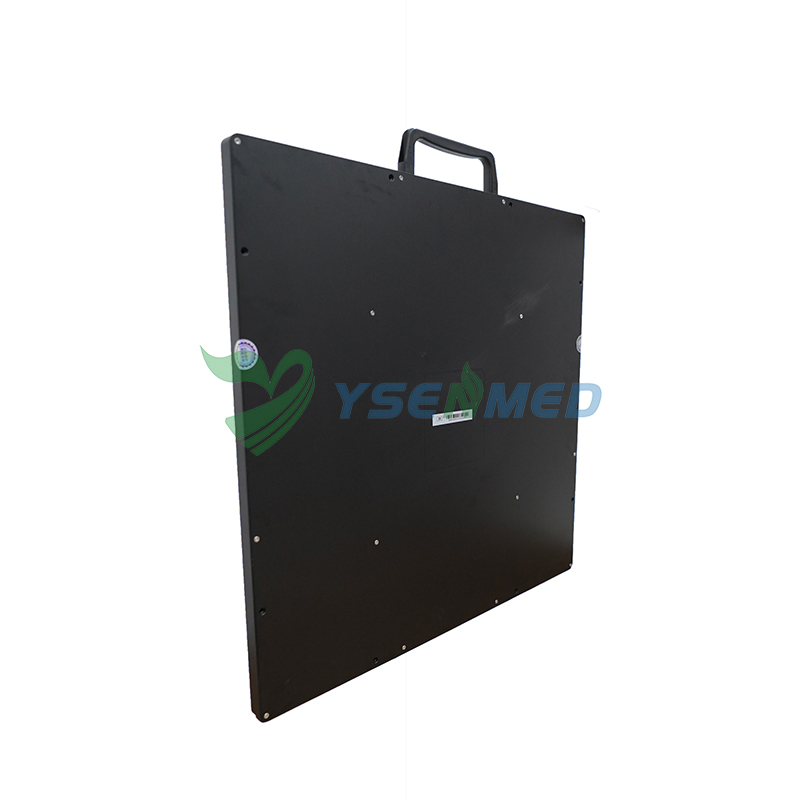

YSENMED Veterinary Wired Flat Panel Detector

Model:YSFPD4343R VET

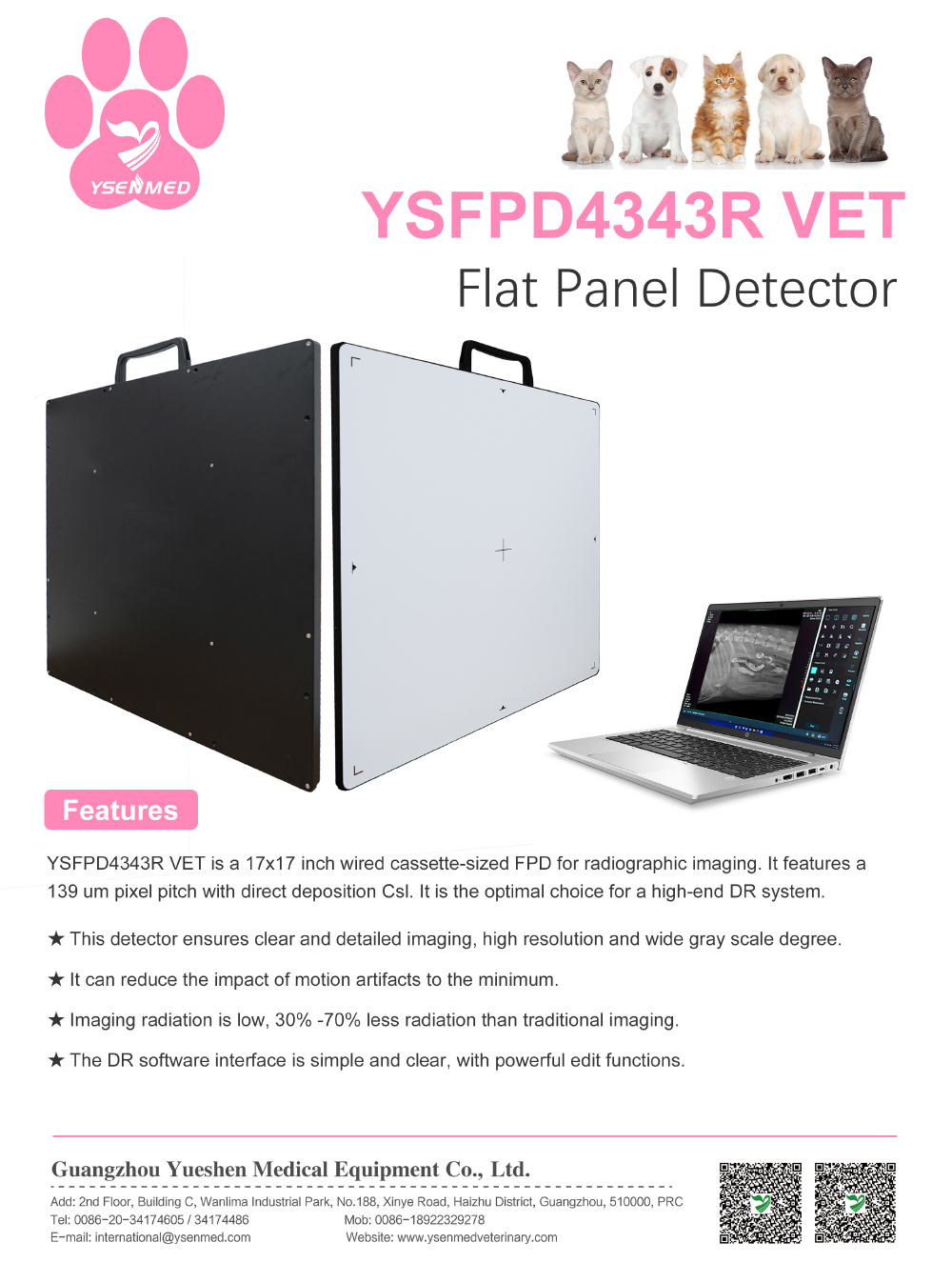

Features
YSFPD4343R VET is a 17x17 inch wired cassette-sized FPD for radiographic imaging. It features a139 um pixel pitch with direct deposition Csl. It is the optimal choice for a high-end DR system.
This detector ensures clear and detailed imaging, high resolution and wide gray scale degree.
It can reduce the impact of motion artifacts to the minimum.
Imaging radiation is low, 30%-70% less radiation than traditional imaging.
The DR software interface is simple and clear, with powerful edit functions.

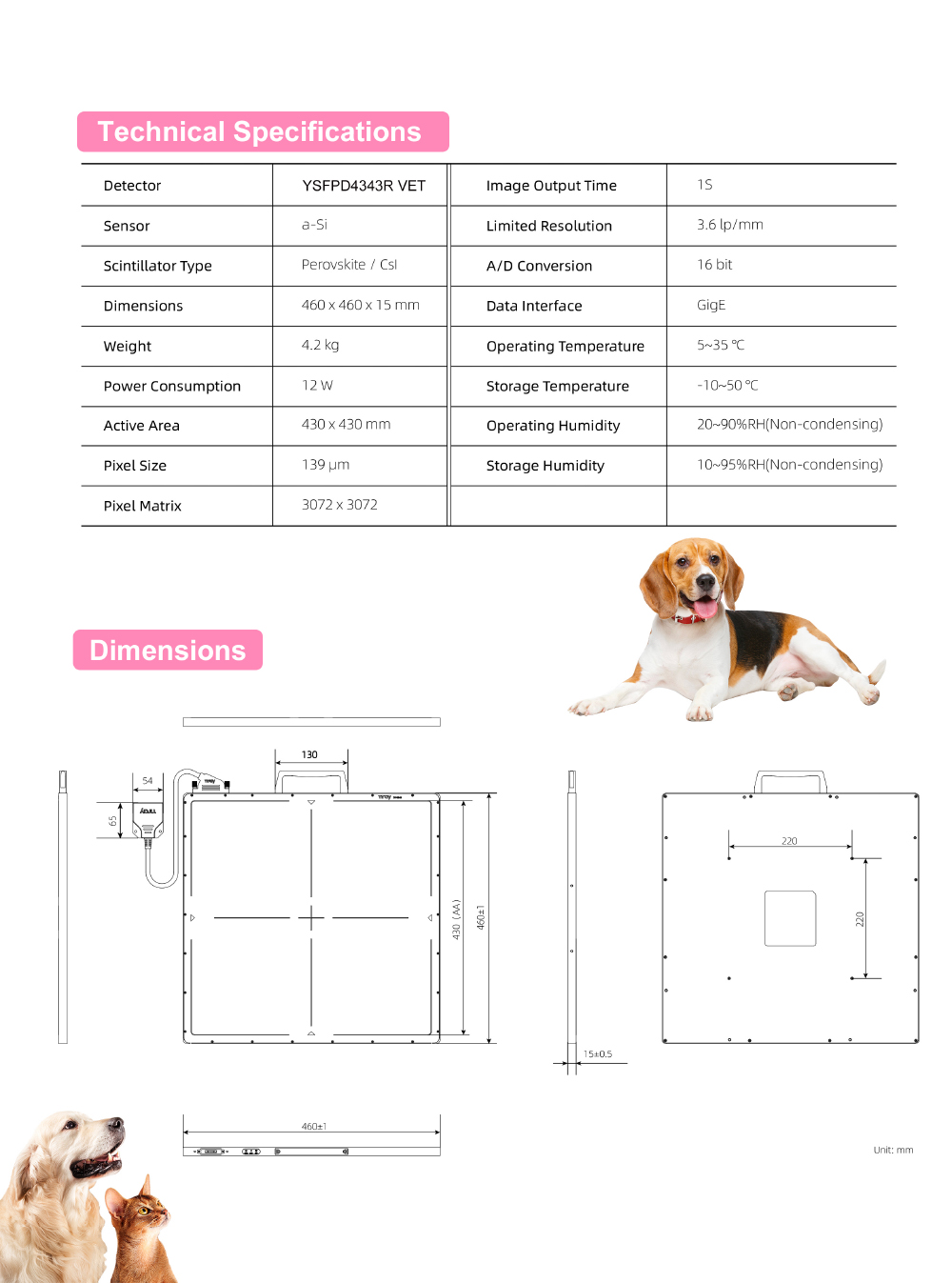

Technical Specifications
Detector YSFPD4343R VET
Image Output Time 1S
Sensor a-Si
Limited Resolution 3.6 lp/mm
Scintillator Type Perovskite / csl
A/D Conversion 16 bit
Dimensions 460x460x15 mm
Data Interface GigE
Weight 4.2 kg
Operating Temperature 5~35 °C
Power consumption 12 W
Storage Temperature -10~50 °C
Active Area 430x430 mm
Operating Humidity 20~90%RH(Non-condensing)
Pixel Size 139 μm
Storage Humidity 10~95%RH(Non-condensing)
Pixel Matrix 3072x3072
