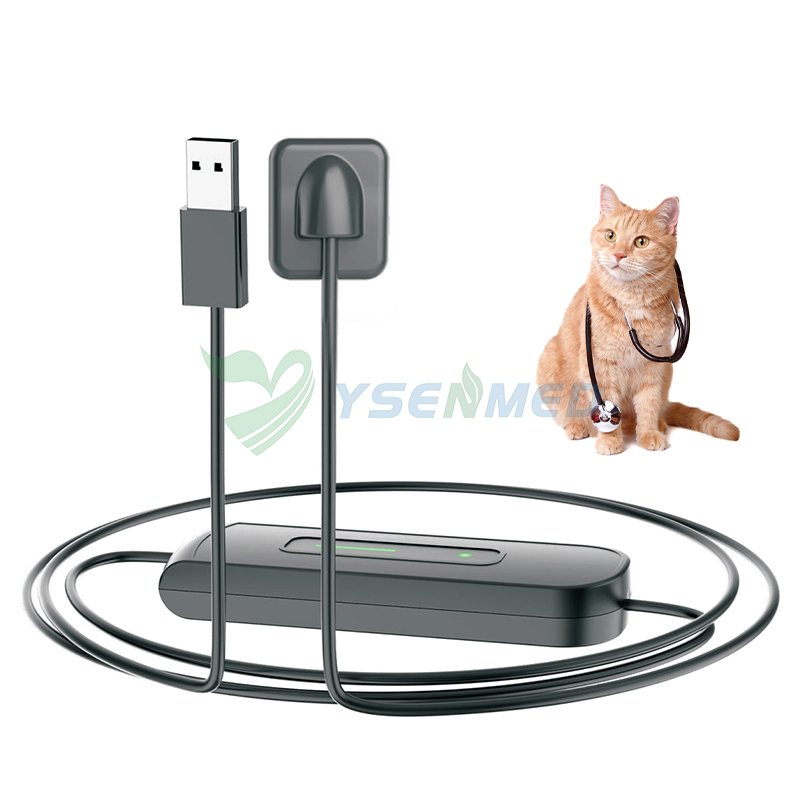

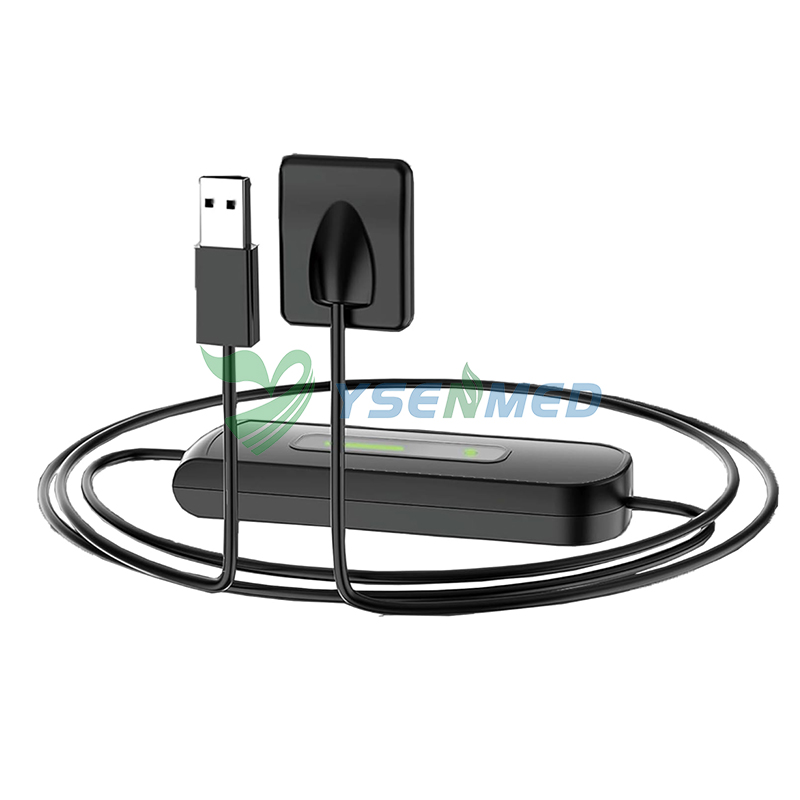

Veterinary digital dental intraoral x-ray sensor
Model:YSRVG-2530V

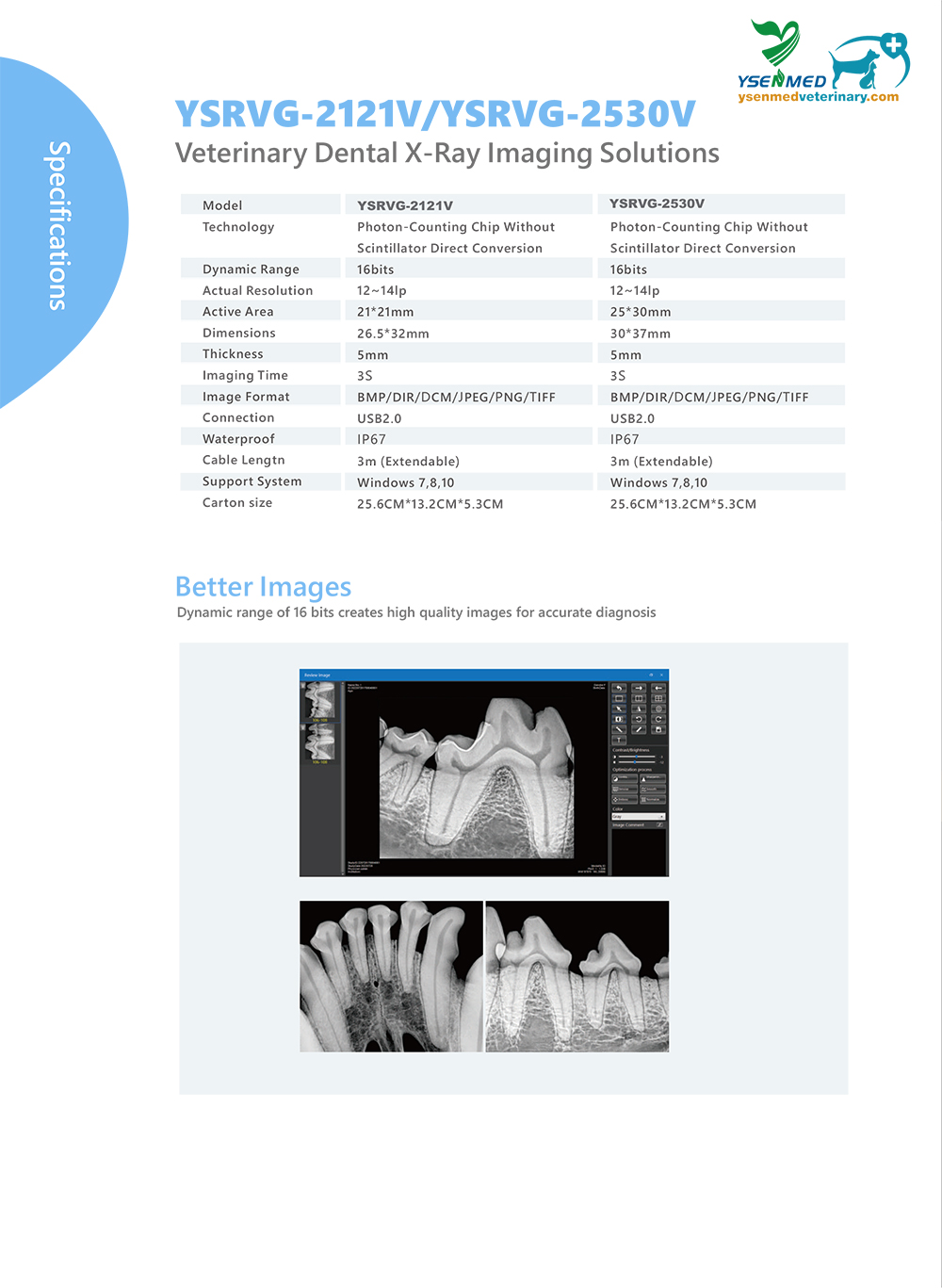

Specifications
Model YSRVG-2121V YSRVG-2530V
Technology Photon-Counting Chip Without Scintillator Direct Conversion Photon-Counting Chip Without Scintillator Direct Conversion
Dynamic Range 16bits 16bits
Actual Resolution 12~14Ip 12~14Ip
Active Area 21*21mm 25*30mm
Dimensions 26.5*32mm 30*37mm
Thickness 5mm 5mm
Imaging Time 3s 3s
Image Format BMP/DIR/DCM/JPEG/PNG/TIFF BMP/DIR/DCM/JPEG/PNG/TIFF
Connection USB2.0 USB2.0
Waterproof IP67 IP67
Cable Length 3m(Extendable) 3m(Extendable)
Support System Windows 7,8,10 Windows 7,8,10
carton size 25.6CM*13.2CM*5.3CM 25.6CM*13.2CM*5.3CM

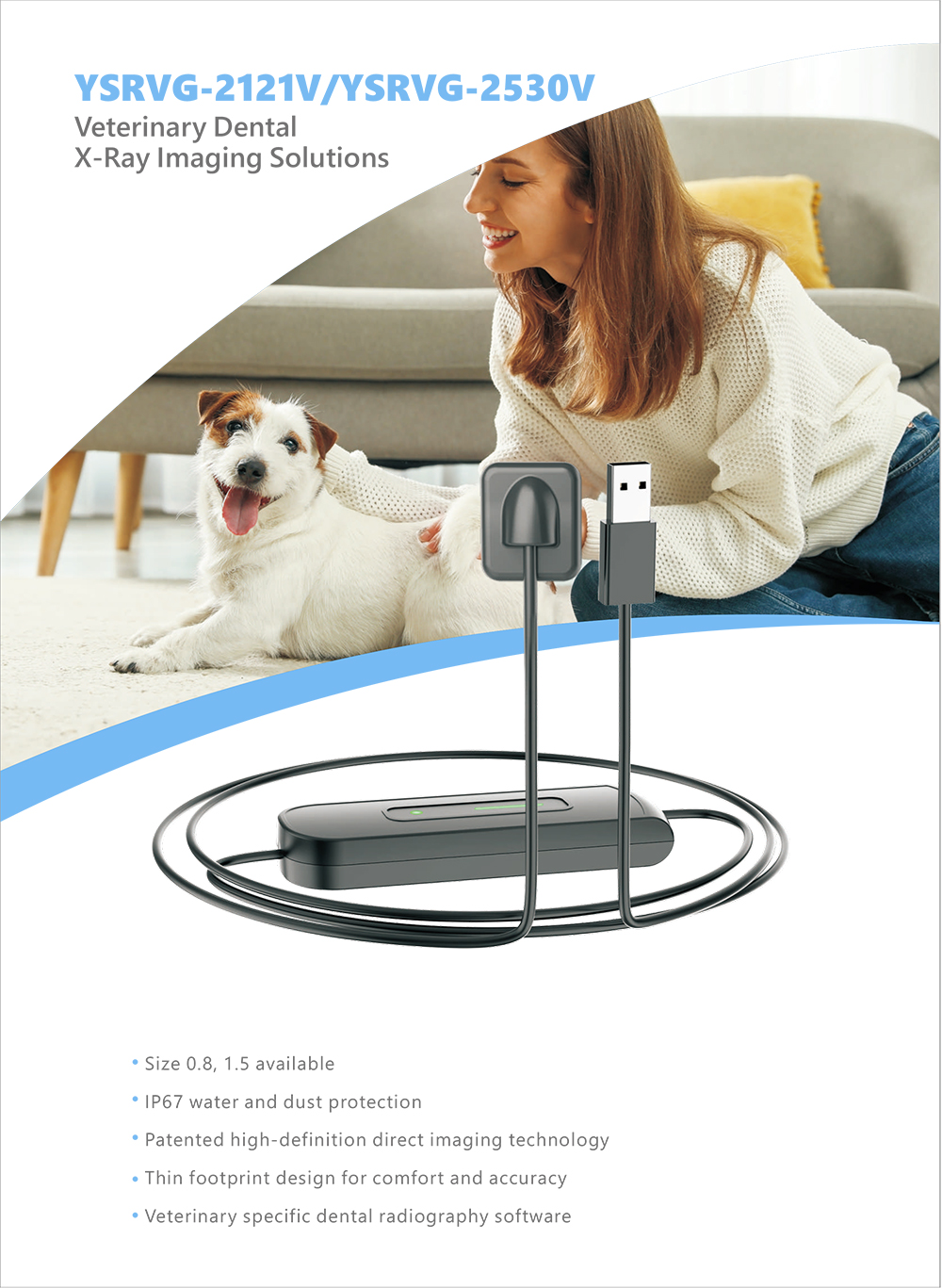

Features
Size 0.8, 1.5 available
IP67 water and dust protection
Patented high-definition direct imaging technology
Thin footprint design for comfort and accuracy
Veterinary specific dental radiography software
