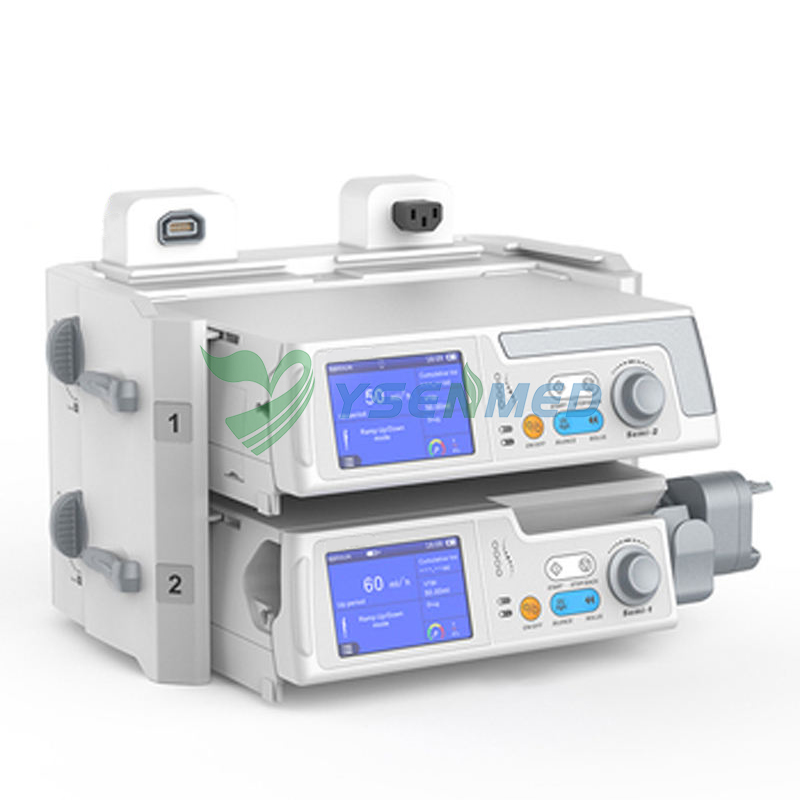

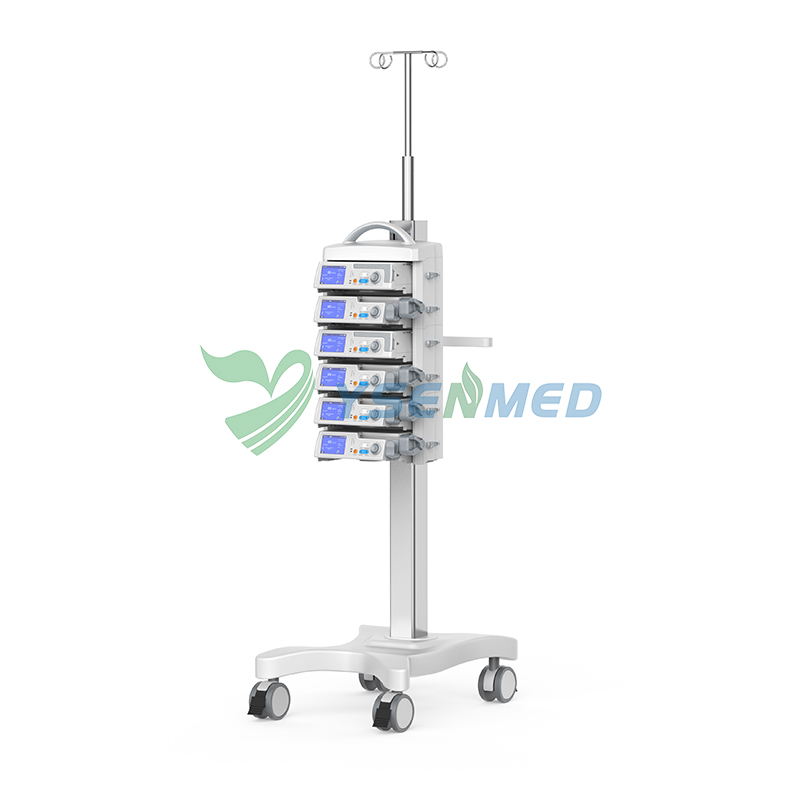

Syringe Pump Station/

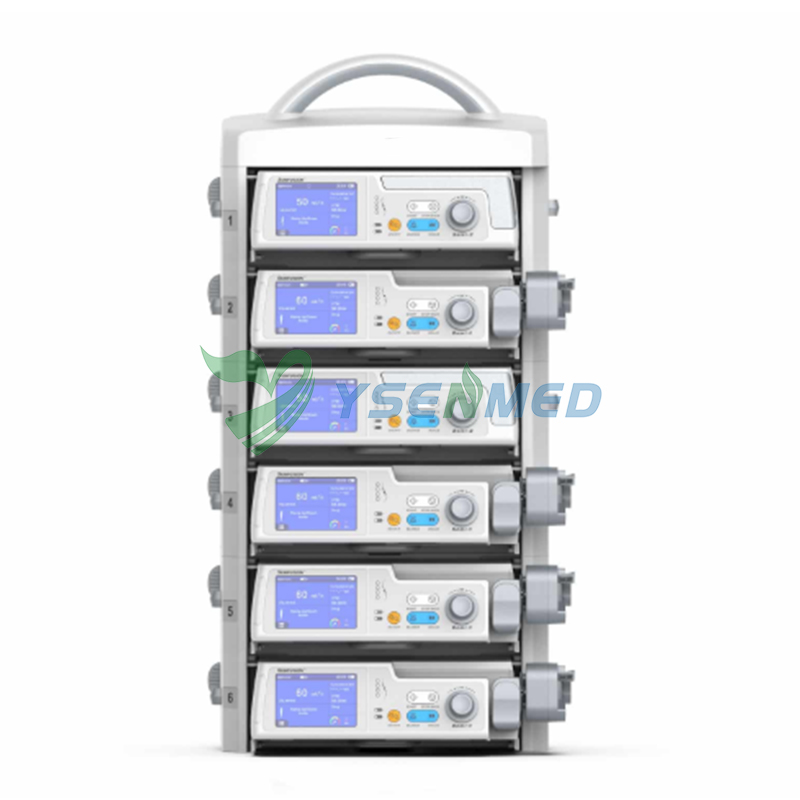

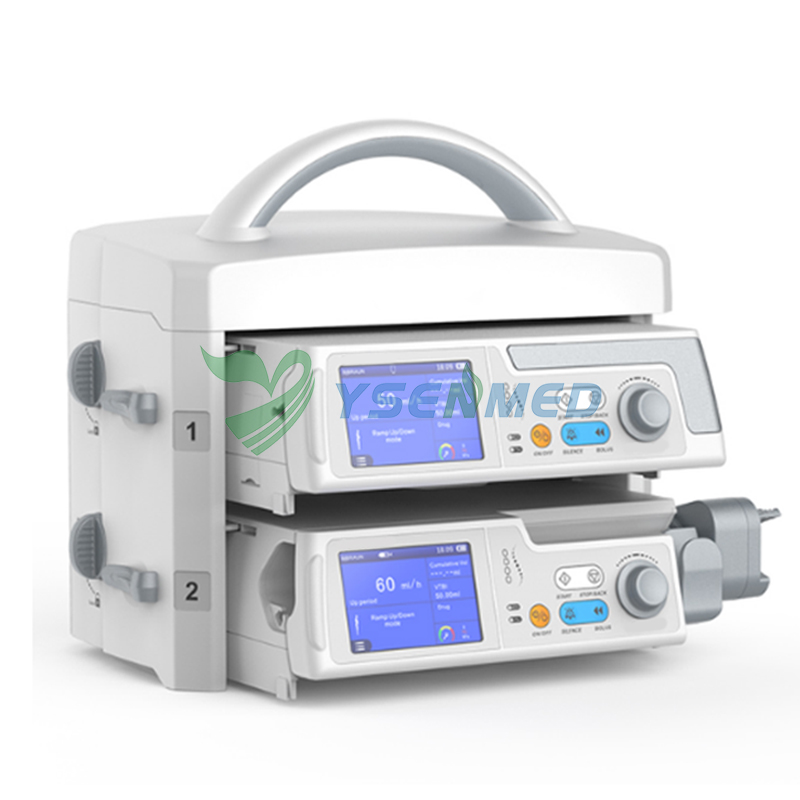

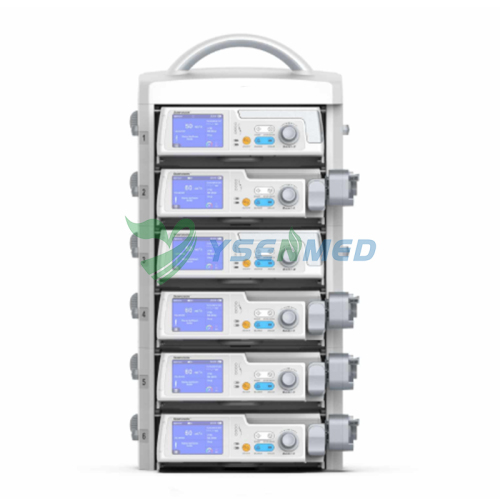

2 channel/4 channel/6 channel/8 channel
Model:YSZS-S1+YSZS-PI3

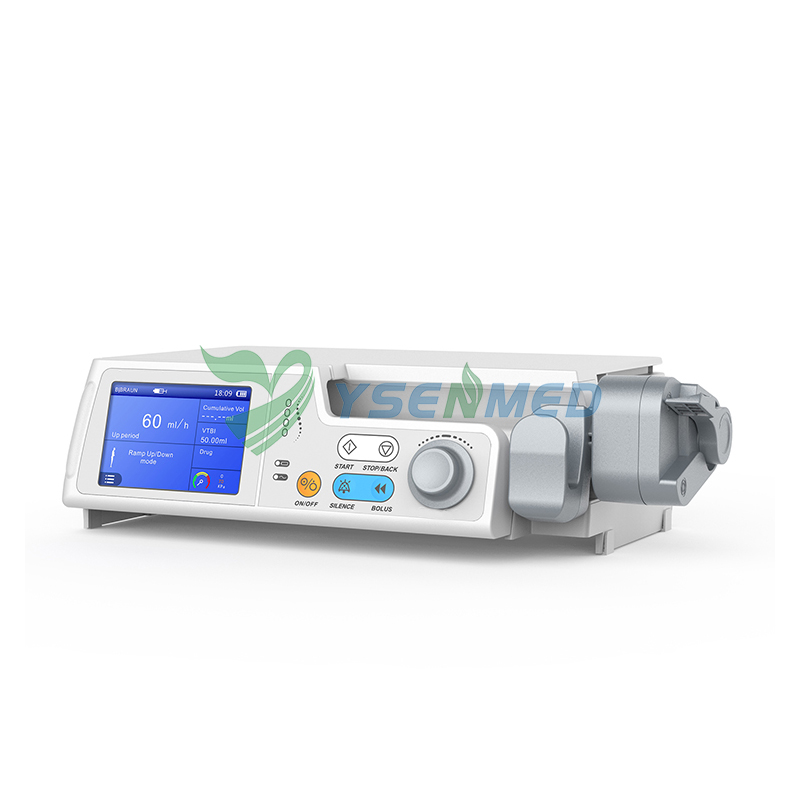

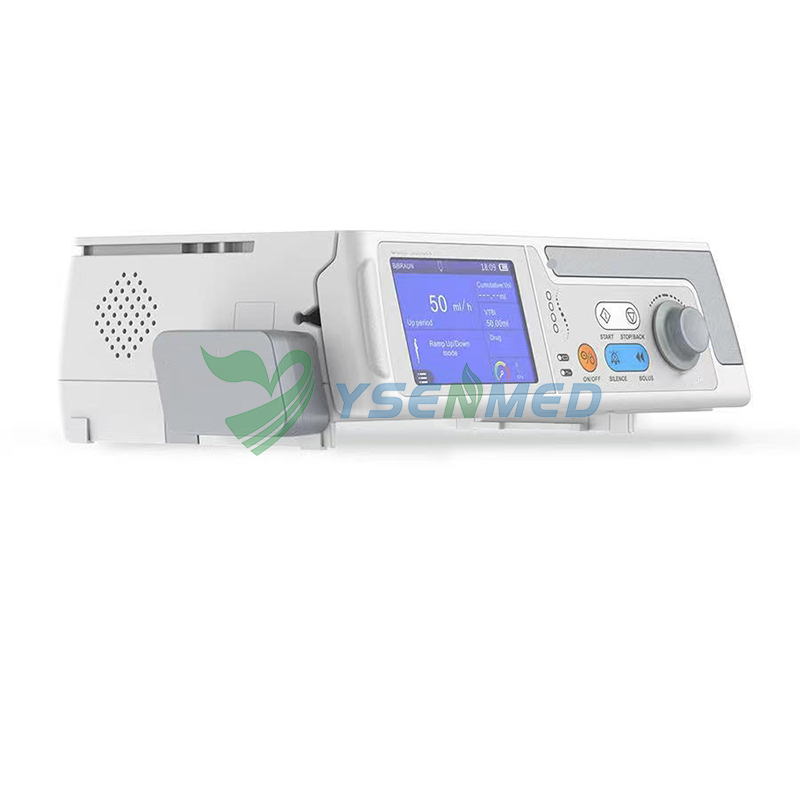

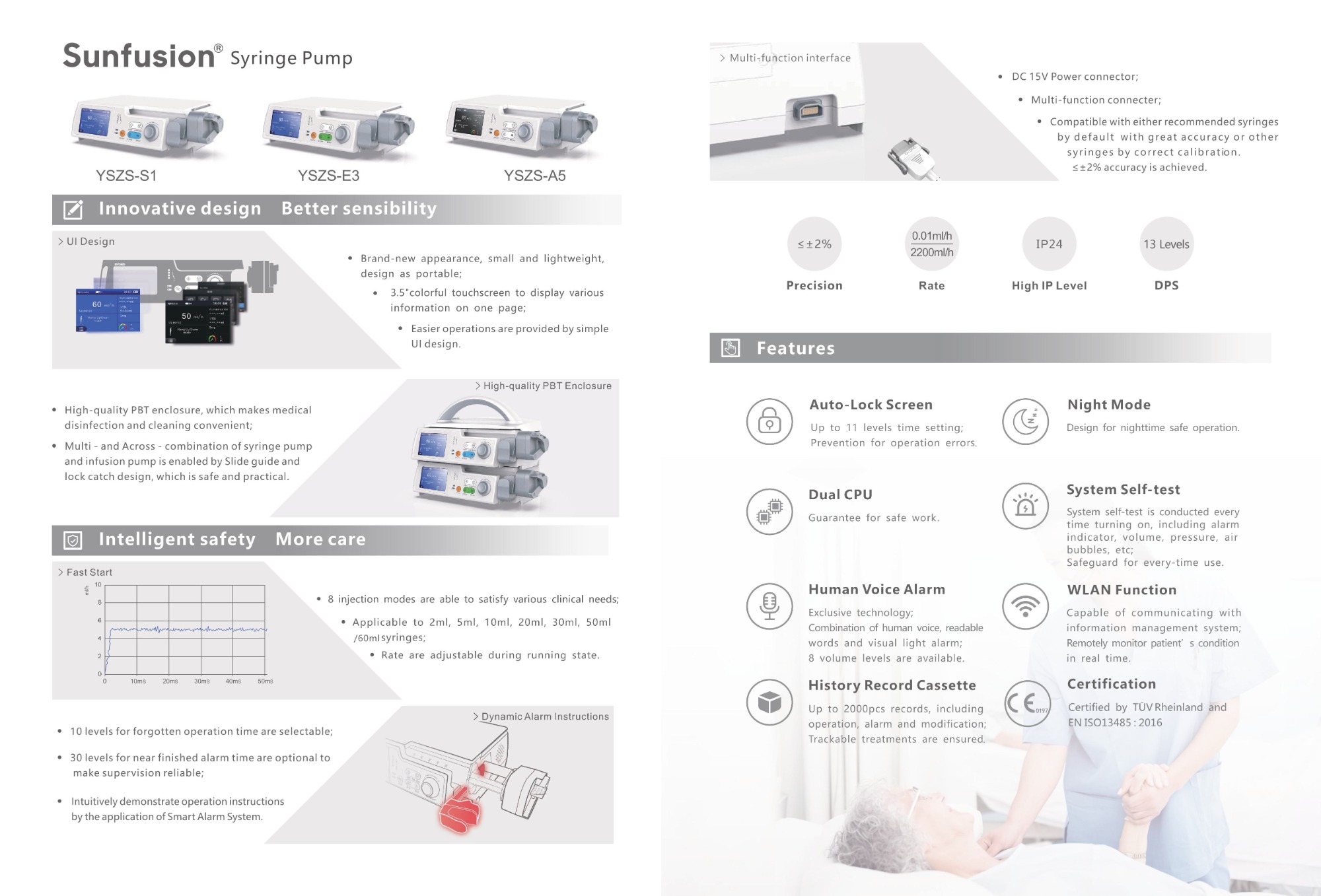

Key Features of Sunfusion Series Syringe Pump
Independent handle design makes quick installation and disassembly
3.5 color touch screen and key pad operation be freely choosing
Full-range syringes compatibility, compatible for 2ml, 5ml, 10ml, 20ml, 30ml, 50ml, 60ml syringes
Change infusion rate without pause
Intelligent Visual and audible alarm system and dynamic alarm guidance
Flow compensation to avoid error caused by pipeline fatigue
Equipment maintenance cycle alert, regularly alert maintenance to make accuracy and safety of the device.

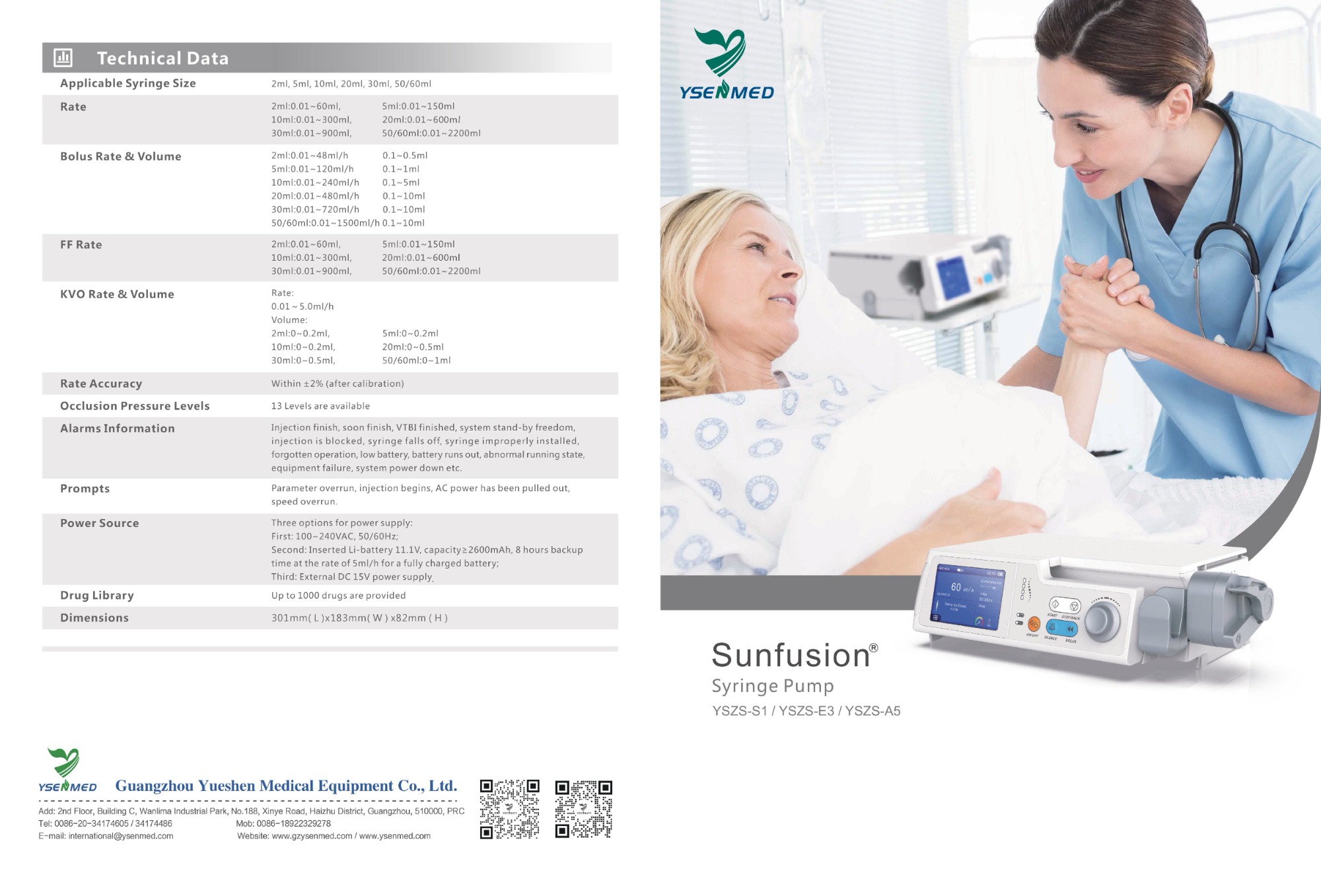

Technical Specifications of Sunfusion Series Syringe Pump
Model YSZS-S1 YSZS-E3
Screen 3.5" Blue LCD, touch screen 3.5" Blue LCD, touch screen
WiFi module NO Yes
Compatible dock station YSZS-PI3 YSZS-PI3 + ID3
UI Multiple Language (Chinese, English, Russian, Spanish, Turkish, Romanian and Bulgarian, can be customized)
Night mode, Backlight adjustable, Volume adjustable
Syringe set 2ml,5ml,10ml,20ml,30ml,50/60ml universal syringes
INFUSION rate range 0.01 to 2200 ml/h, with 0.01ml/h increasement
Volume to be infused (VTBI) 0.01-9999.99ml (0.01 ml/step)
Nominal flow rate accuracy within ± 2% (after calibration)
KVO Rate 0.1~5.0ml/h (0.01ml step)
IP level IP24
Alarm Audible and visible
Simulated display alarm reason (Unique)
Female voice alarm system (Patent)
