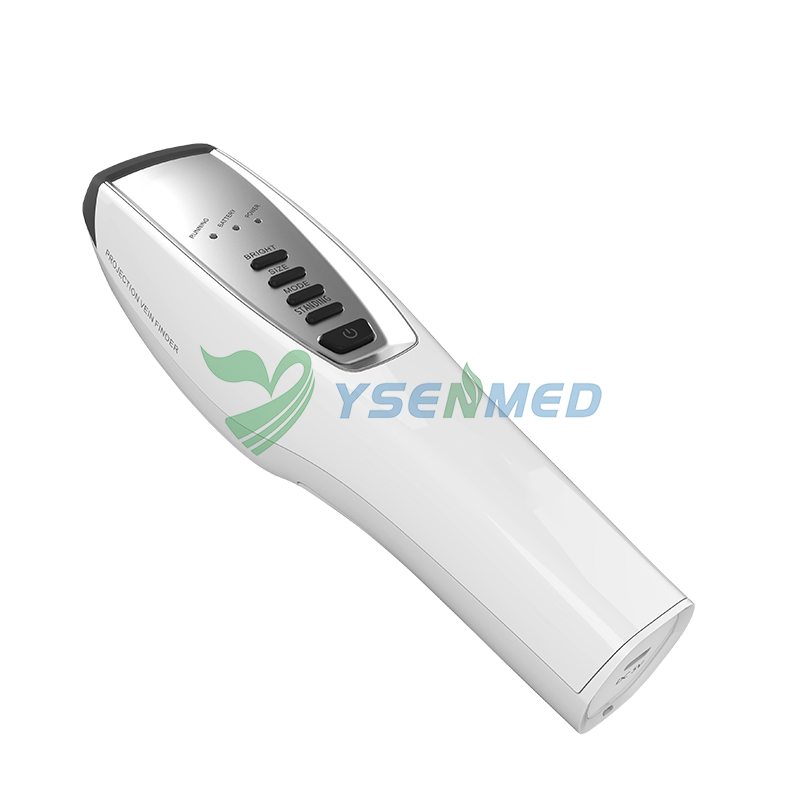

Medical Projection Vein Finder Vein Viewer
Model:YSVV800P

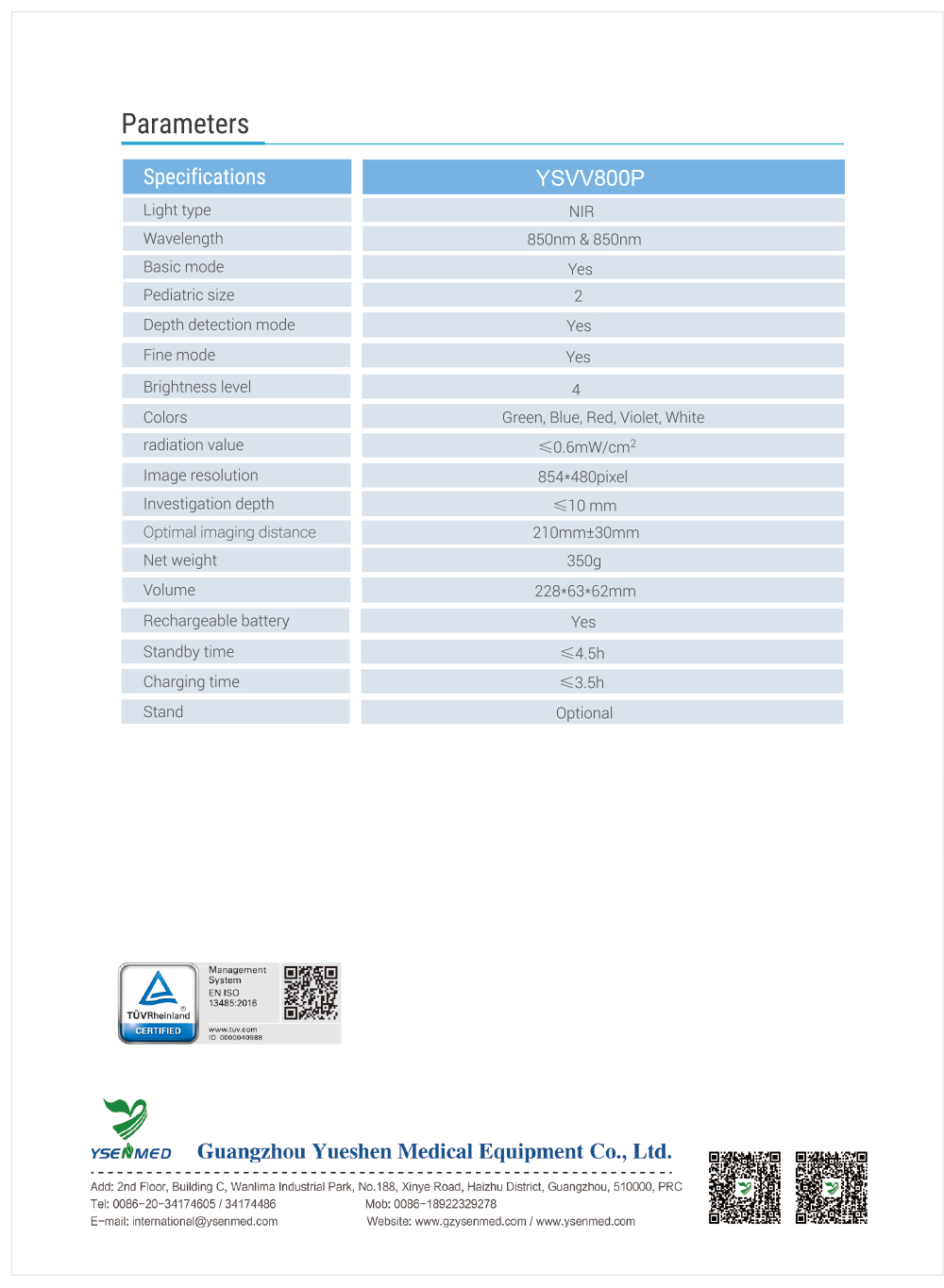

Parameters
Specifications YSVV800P
Light type NIR
Wavelength 850nm & 850nm
Basic mode Yes
Pediatric size 2
Depth detection mode Yes
Fine mode Yes
Brightness level 4
Colors Green, Blue, Red, Violet, white
radiation value ≤0.6mW/cm2
Image resolution 854*480pixel
Investigation depth ≤10 mm
Optimal imaging distance 210mm±30mm
Net weight 350g
Volume 228*63*62mm
Rechargeable battery Yes
Standby time ≤4.5h
Charging time ≤3.5h

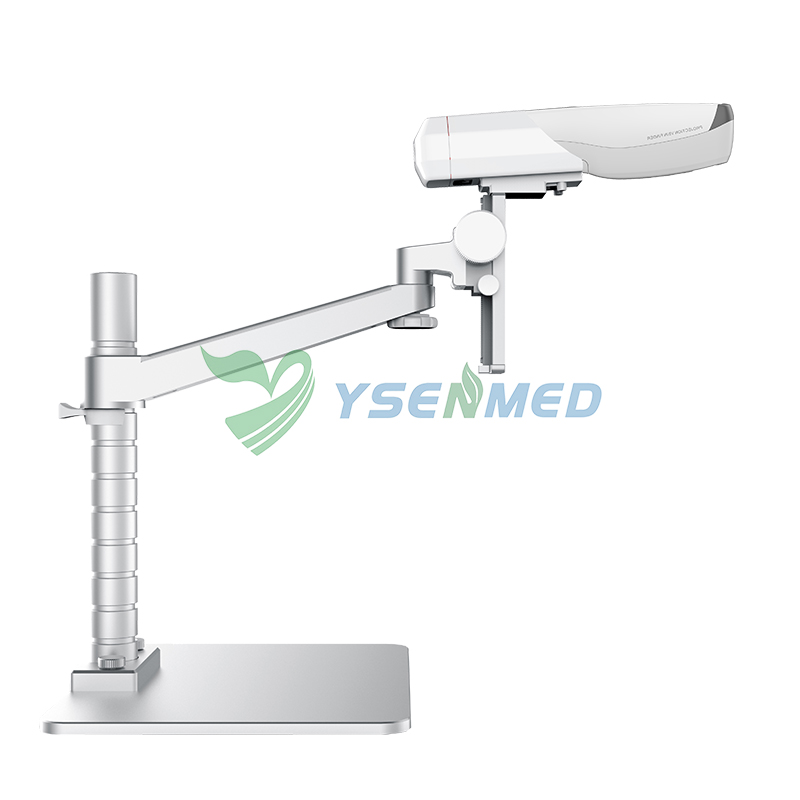

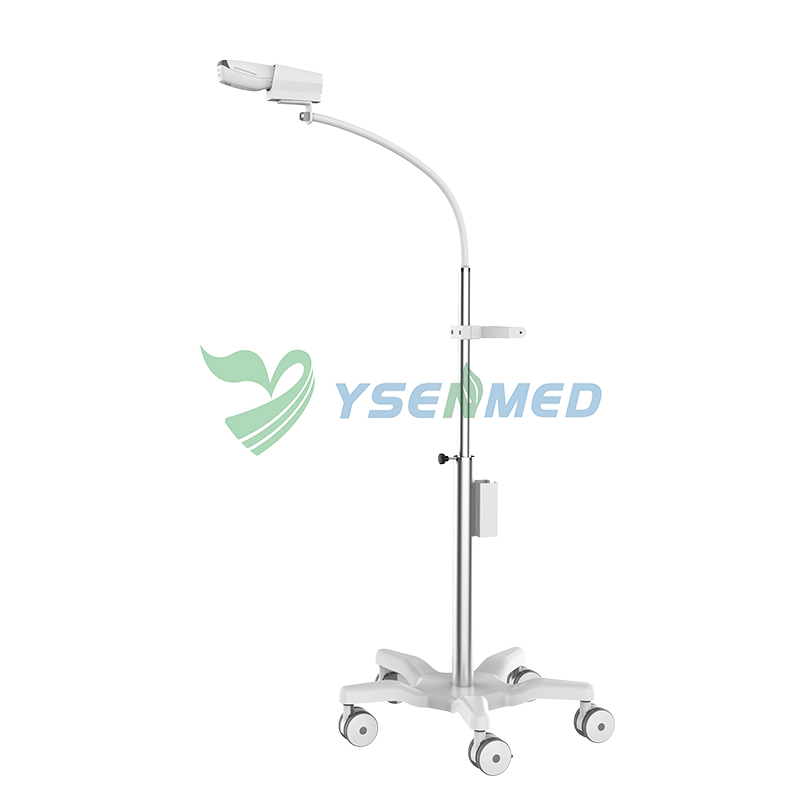

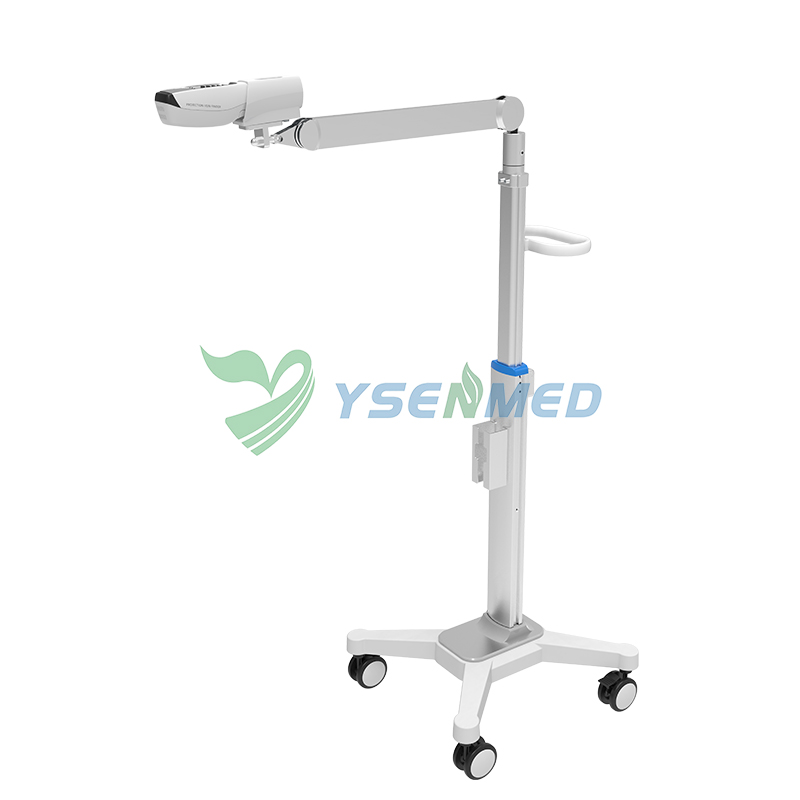

Stand Optional

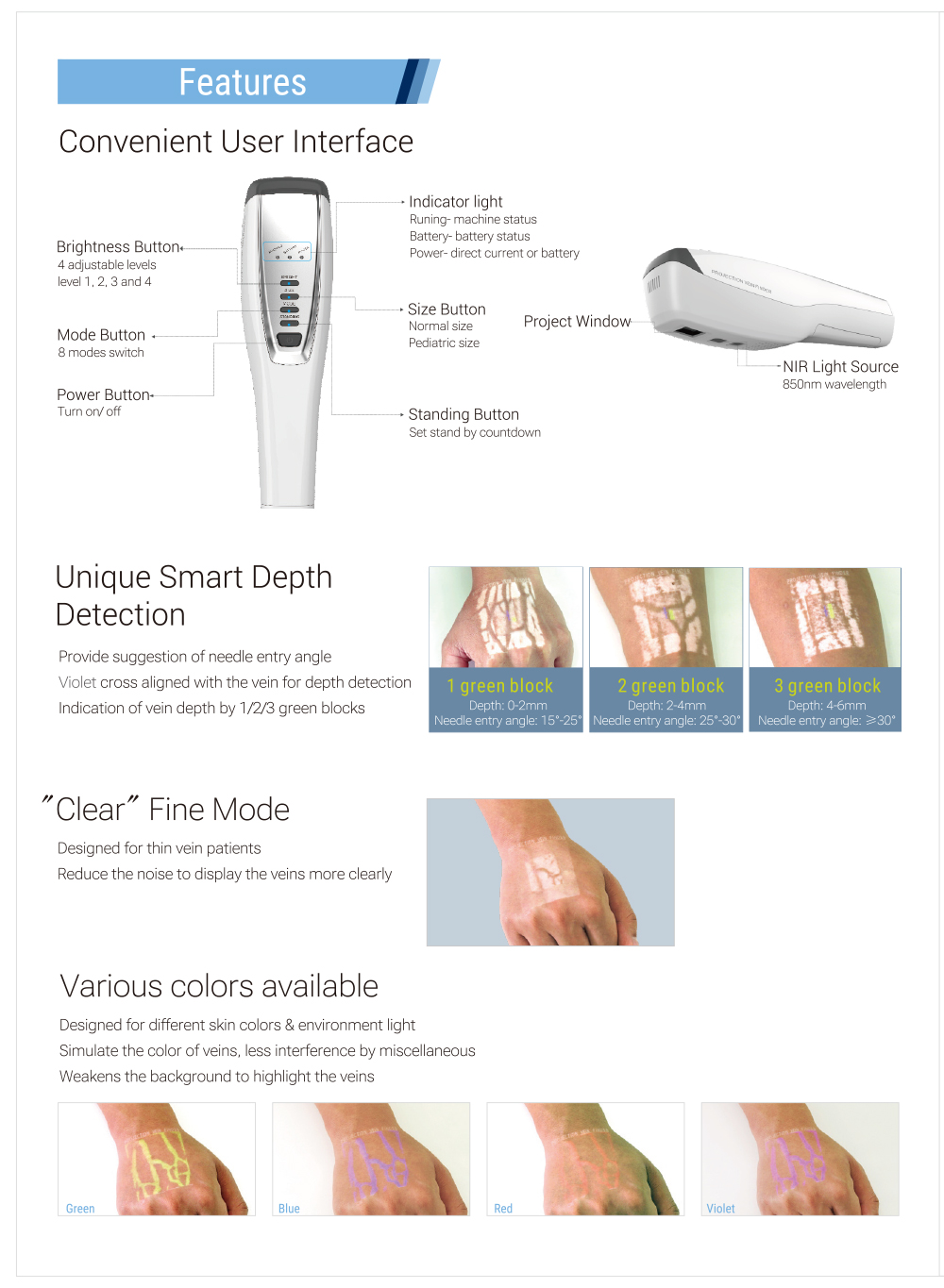

Features

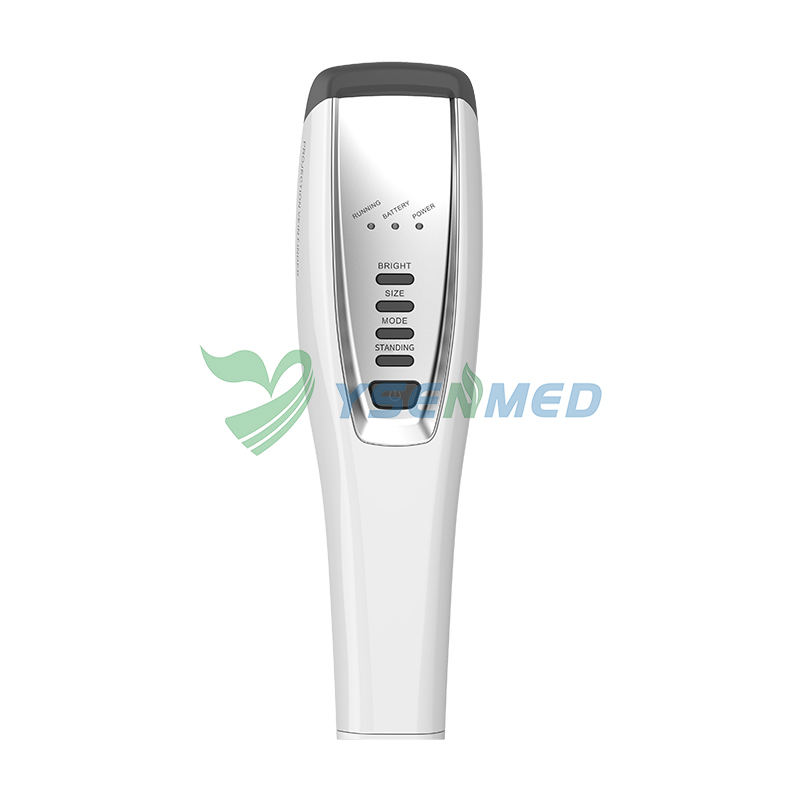

Convenient User Interface
Brightness Button
4 adjustable levels
level 1, 2, 3 and 4
Mode Button
8 modes switch
Power Button
Turn on/off
Indicator light
Running-machine status
Battery-battery status
Power-direct current or battery
Size Button
Normal size
Pediatric size
Standing Button
Set stand by countdown
Project Window
NIR Light Source
850nm wavelength
Unique Smart Depth Detection
Provide suggestion of needle entry angle
Violet cross aligned with the vein for depth detection
Indication of vein depth by 1/2/3 green blocks
1 green block
Depth: 0-2mm
Needle entry angle: 15°-25°
2 green block
Depth: 2-4mm
Needle entry angle: 25°-30°
3 green block
Depth: 4-6mm
Needle entry angle: ≥30°
“Clear” Fine Mode
Designed for thin vein patients
Reduce the noise to display the veins more clearly
Various colors available
Designed for different skin colors & environment light
Simulate the color of veins, less interference by miscellaneous
Weakens the background to highlight the veins

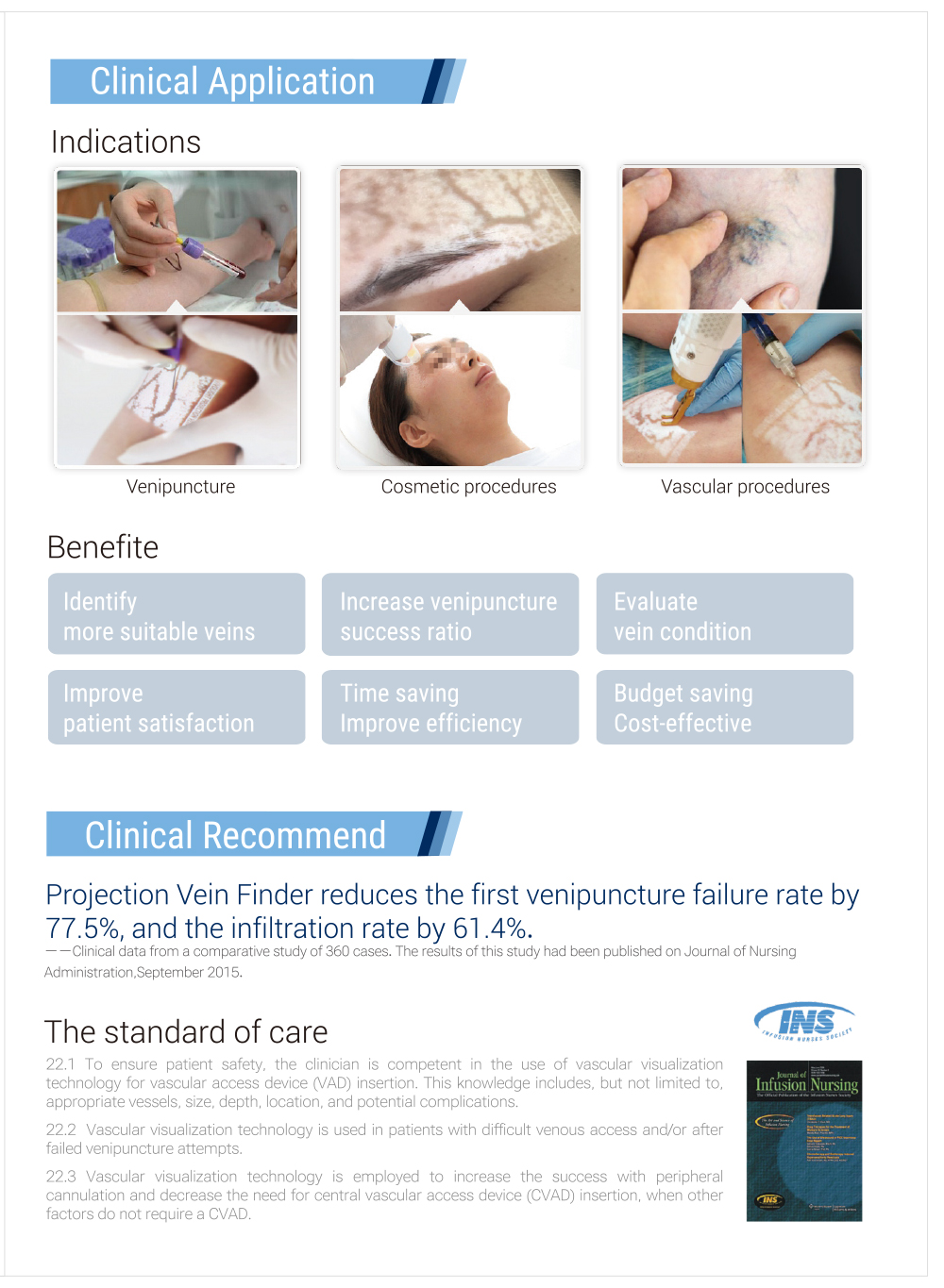

Clinical Application
Indications
Venipuncture, Cosmetic procedures, Vascular procedures
Benefit
Identify more suitable veins
Increase venipuncture success ratio
Evaluate vein condition
Improve patient satisfaction
Time saving
Improve efficiency
Budget saving
