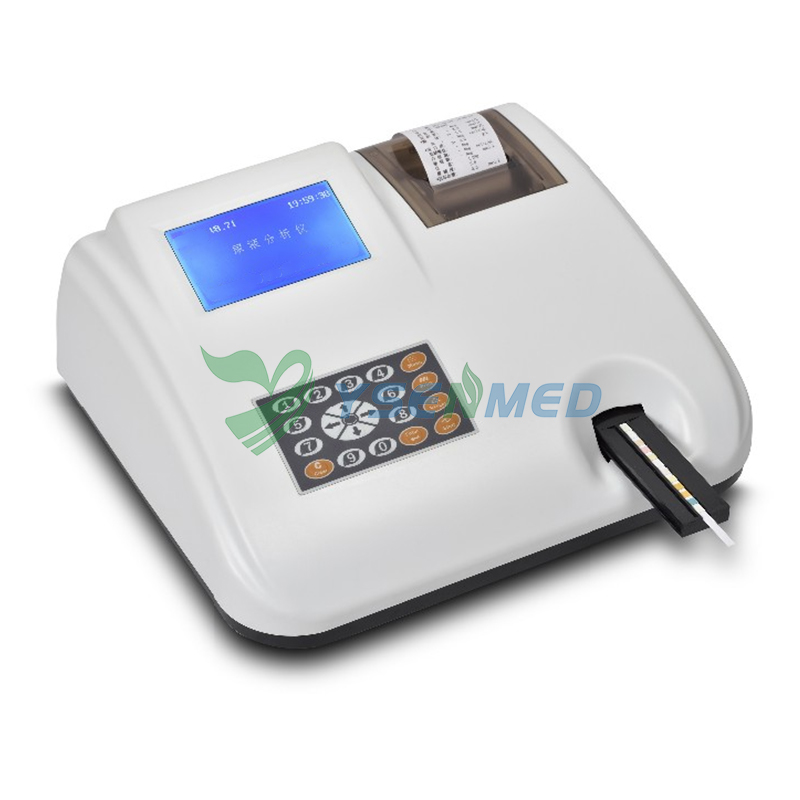

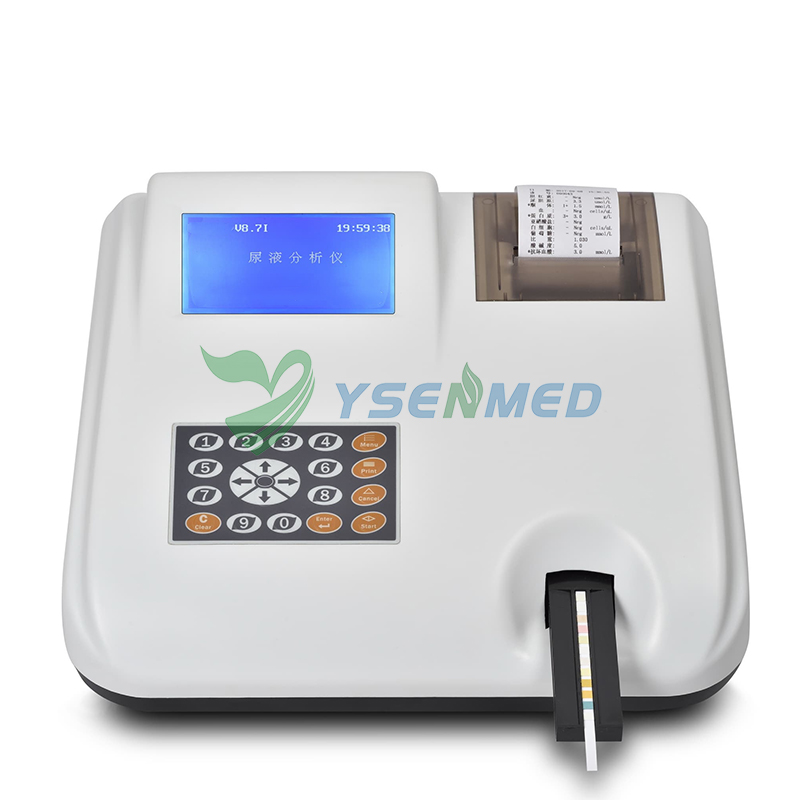

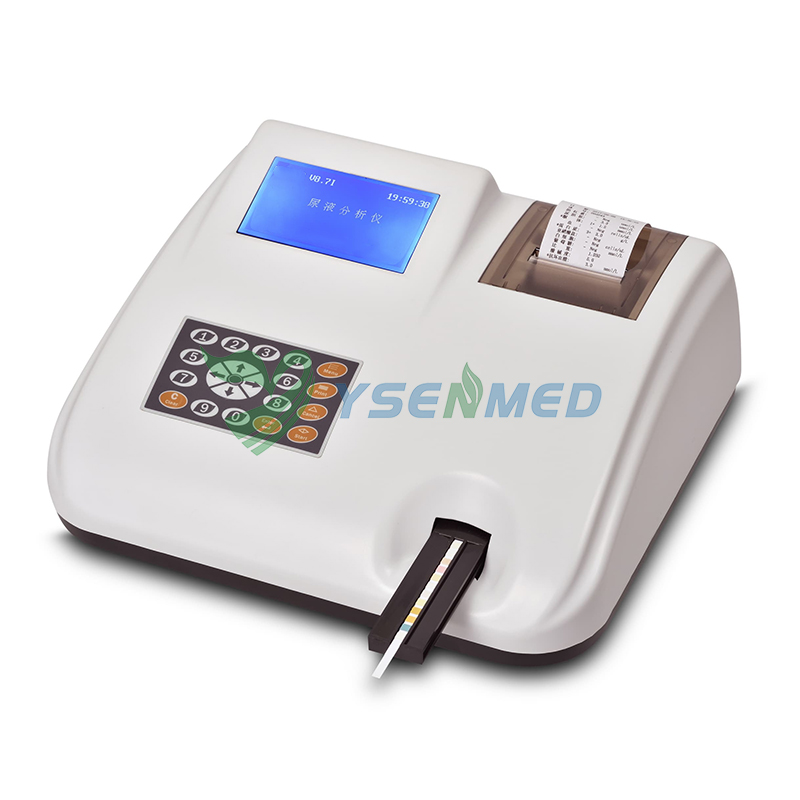

YSTE-UA200B Medical Urine Analyzer
Model:YSTE-UA200B
Urinalysis is an important clinical examination. It is a diagnostic method for examining disease. Pregnant women also need to test urine. 10, 11, 12 panels urine strips can be apply to machine read. YSTE-UA200B is good choice for urinalysis test.

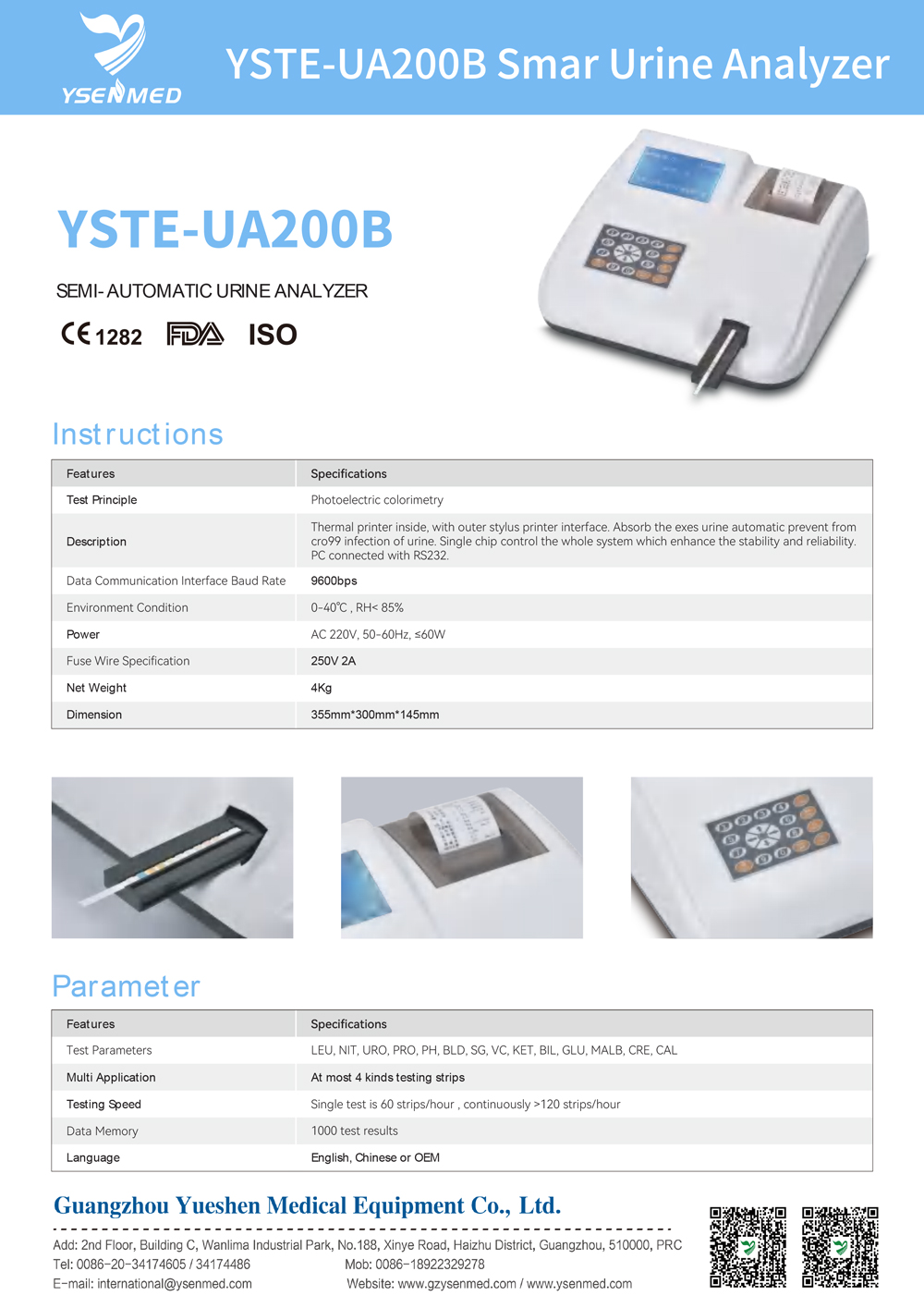

Instructions
Features Specifications
Test Principle Photoelectric colorimetry
Description Thermal printer inside, with outer stylus printer interface. Absorb the exes urine automatic prevent from cro99 infection of urine. Single chip control the whole system which enhance the stability and reliability. PC connected with RS232.
Data Communication Interface Baud Rate 9600bps
Environment Condition 0-40°C, RH<85%
Power AC 220V, 50-60Hz, ≤60W
Fuse Wire Specification 250V 2A
Net Weight 4Kg
Dimension 355mm*300mm*145mm
Parameter
Features Specifications
Test Parameters LEU, NIT, URO, PRO, PH, BLD, SG, VC, KET, BIL, GLU, MALB, CRE, CAL
Multi Application At most 4 kinds testing strips
Testing Speed Single test is 60 strips/hour, continuously>120 strips/hour
Data Memory 1000 test results
Language English, Chinese or OEM
