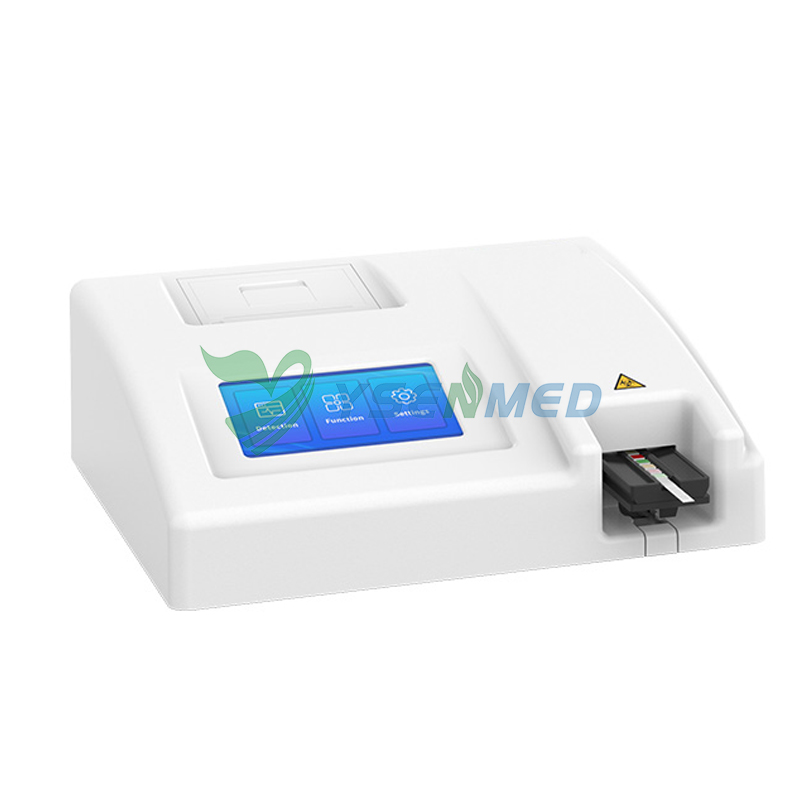

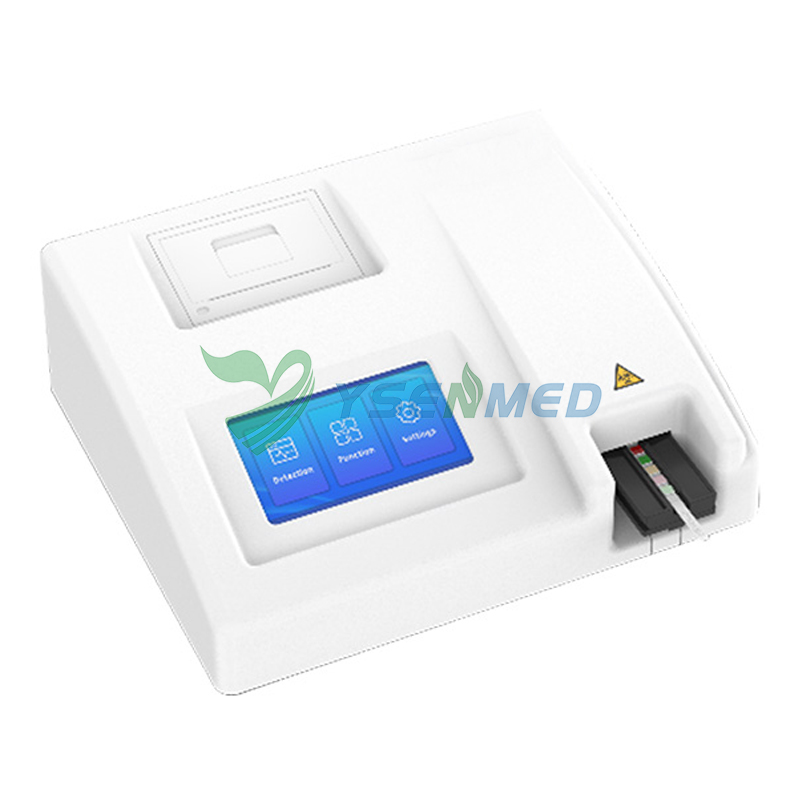

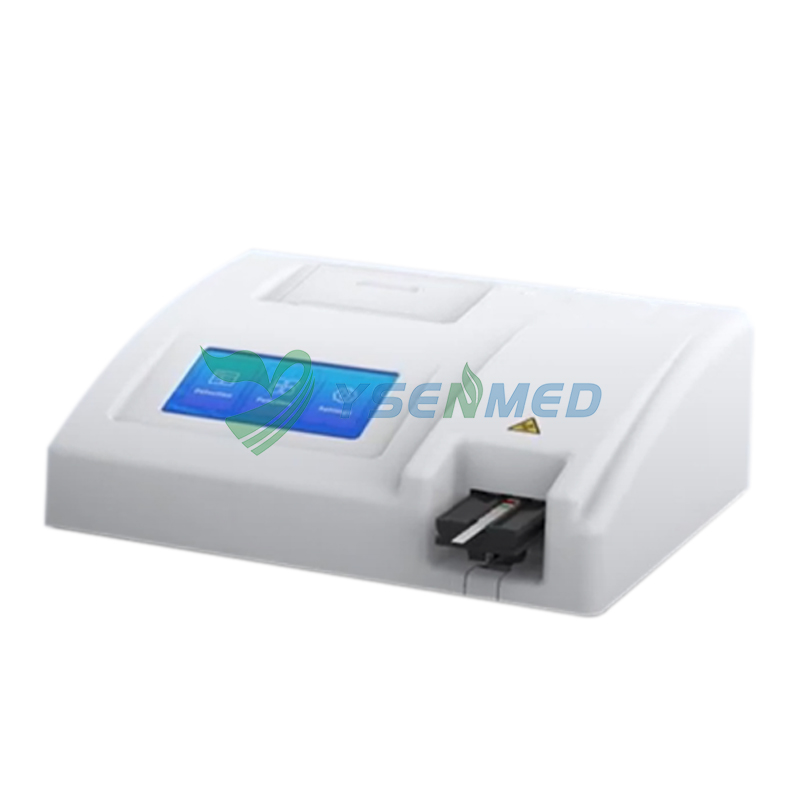

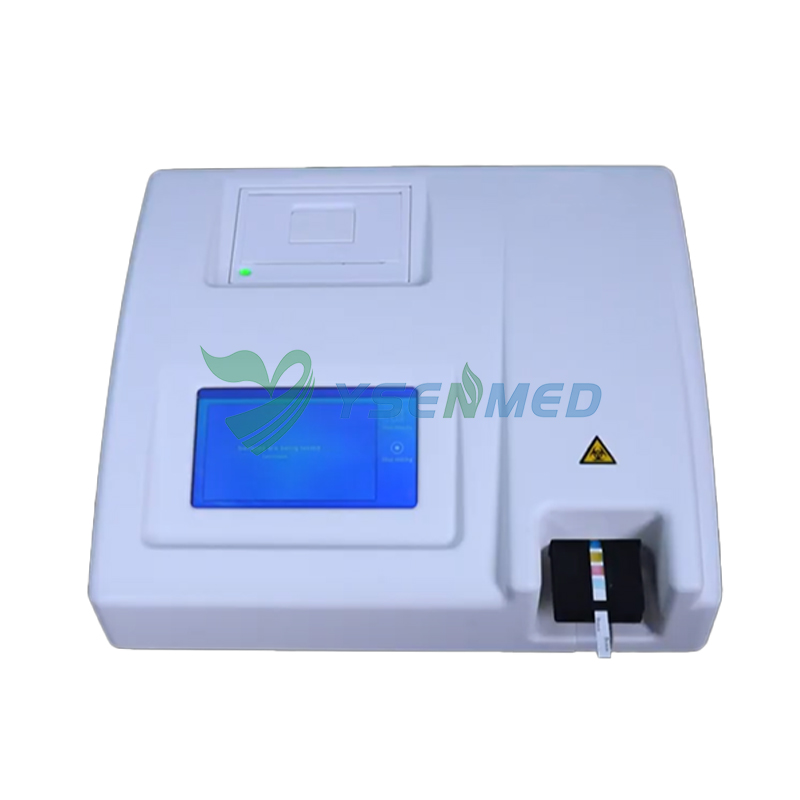

YSTE-UA100S Medical Urine Analyzer
Model:YSTE-UA100S

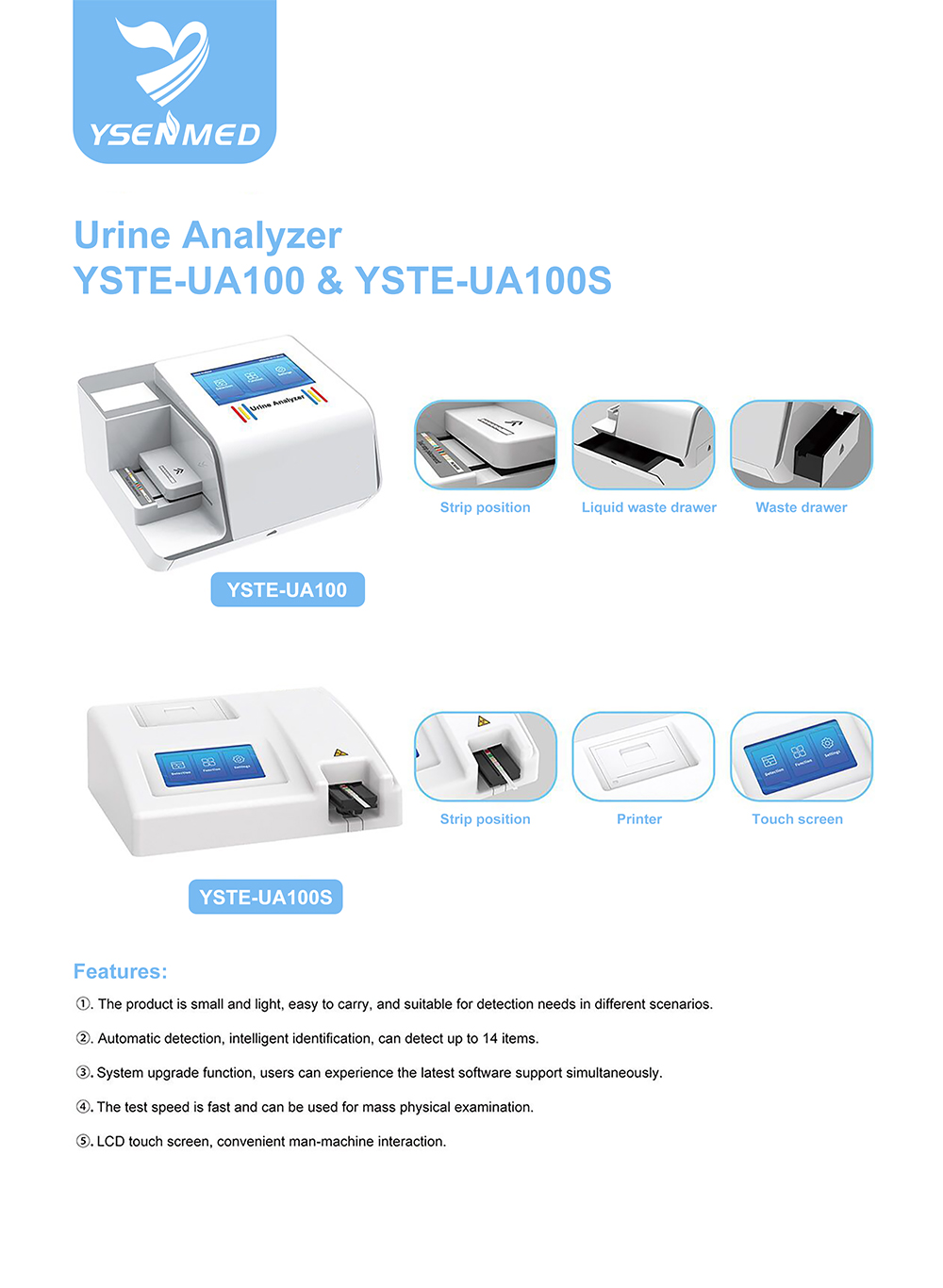

Features
The product is small and light, easy to carry, and suitable for detection needs in different scenarios.
Automatic detection, intelligent identification, can detect up to 14 items.
System upgrade function, users can experience the latest software support simultaneously.
The test speed is fast and can be used for mass physical examination.
LCD touch screen, convenient man-machine interaction.

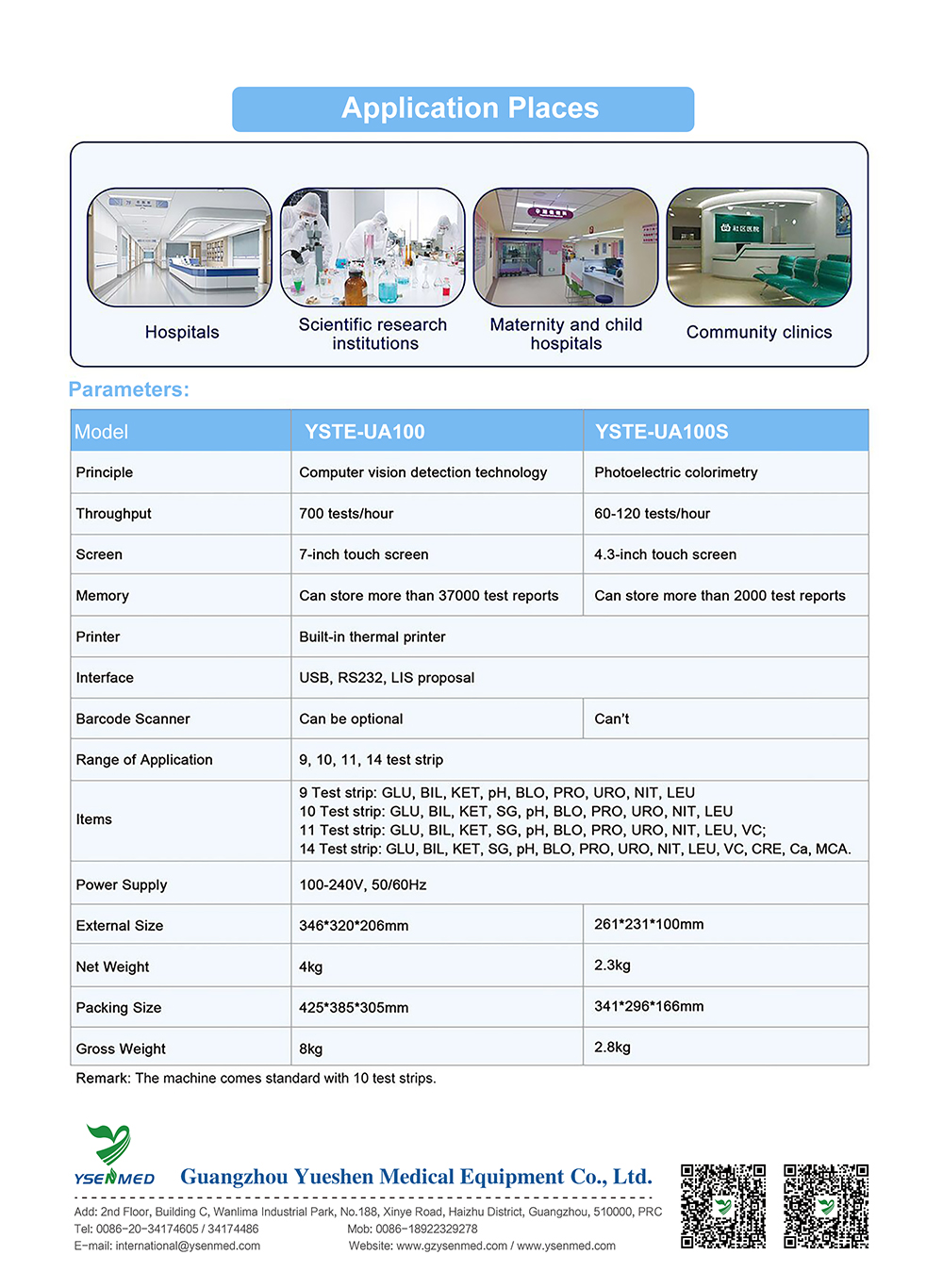

Parameters
Model YSTE-UA100 YSTE-UA100S
Principle Computer vision detection technology Photoelectric colorimetry
Throughput 700 tests/hour 60-120 tests/hour
Screen 7-inch touch screen 4.3-inch touch screen
Memory Can store more than 37000 test reports Can store more than 2000 test reports
Printer Built-in thermal printer

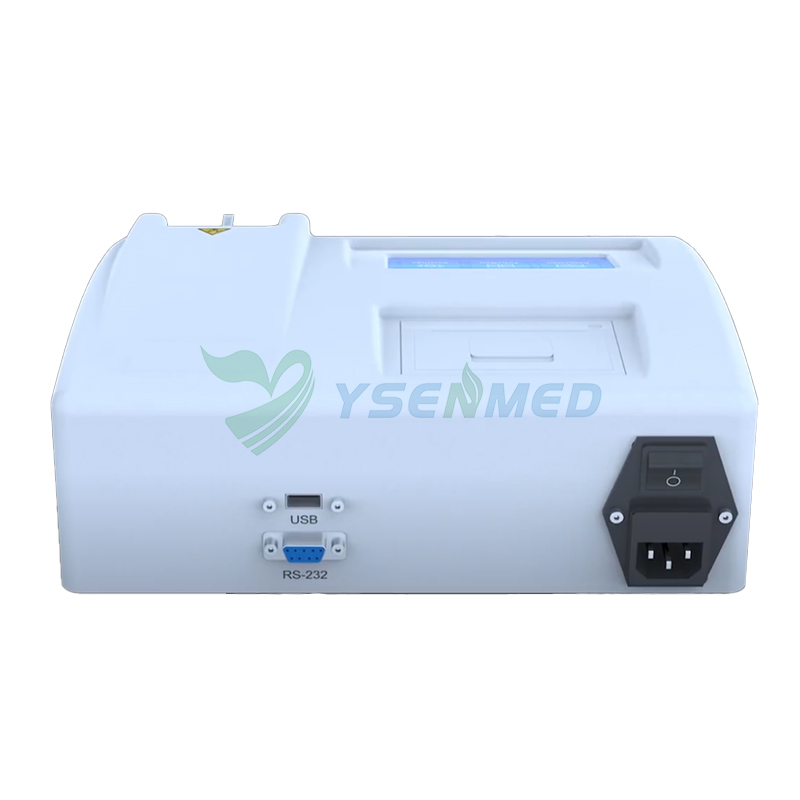

Interface USB, RS232, LIS proposal
Barcode Scanner Can be optional Can't
Range of Application 9, 10, 11, 14 test strip
Items 9 Test strip: GLU, BIL, KET, pH, BLO, PRO, URO, NIT, LEU
10 Test strip: GLU, BIL, KET, SG, pH, BLO, PRO, URO, NIT, LEU
11 Test strip: GLU, BIL, KET, SG, pH, BLO, PRO, URO, NIT, LEU, VC;
14 Test strip: GLU, BIL, KET, SG, pH, BLO, PRO, URO, NIT, LEU, VC, CRE, Ca, MCA.
Power supply 100-240V, 50/60Hz
External Size 346*320*206mm 261*231*100mm
Net Weight 4kg 2.3kg
Packing Size 425*385*305mm 341*296*166mm
Gross Weight 8kg 2.8kg
Application Places
Hospitals, Scientific research institutions, Maternity and child hospitals,
