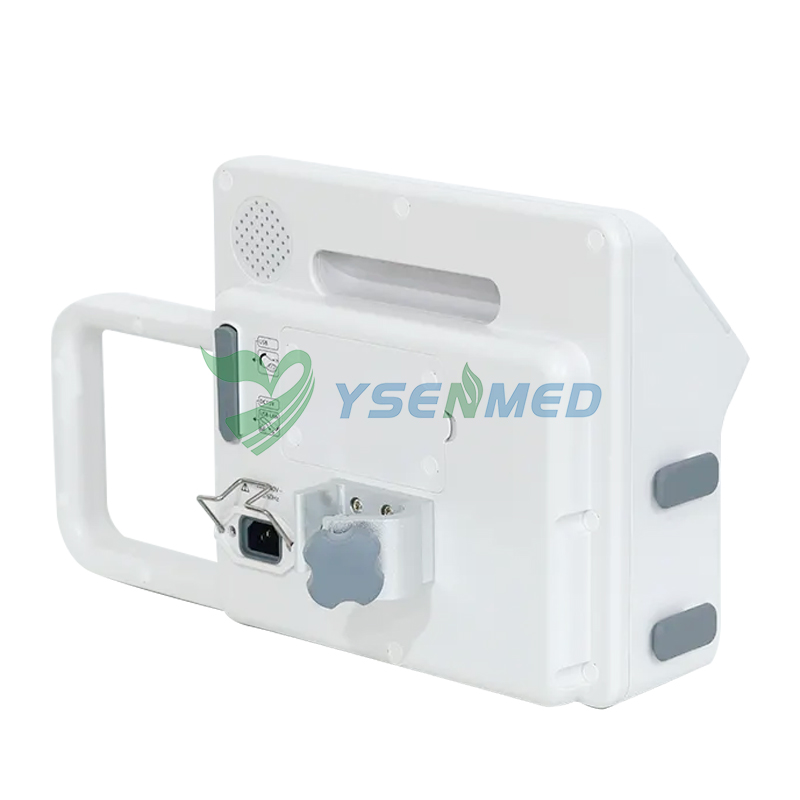

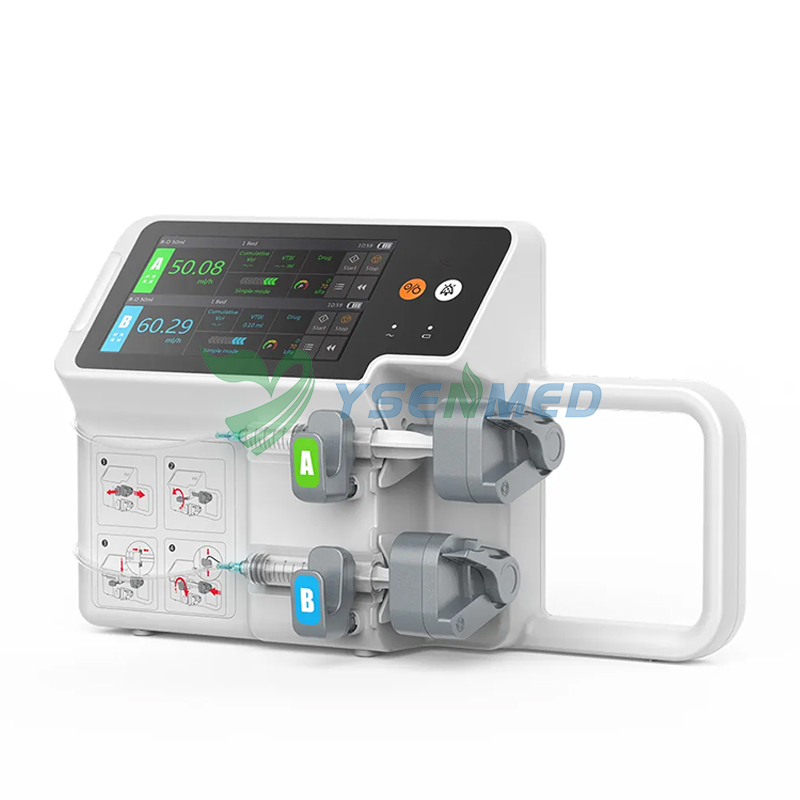

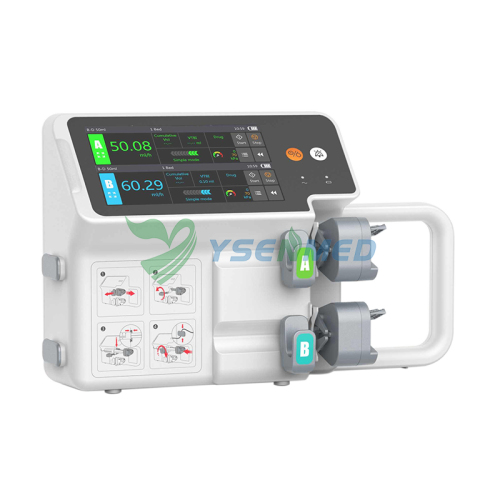

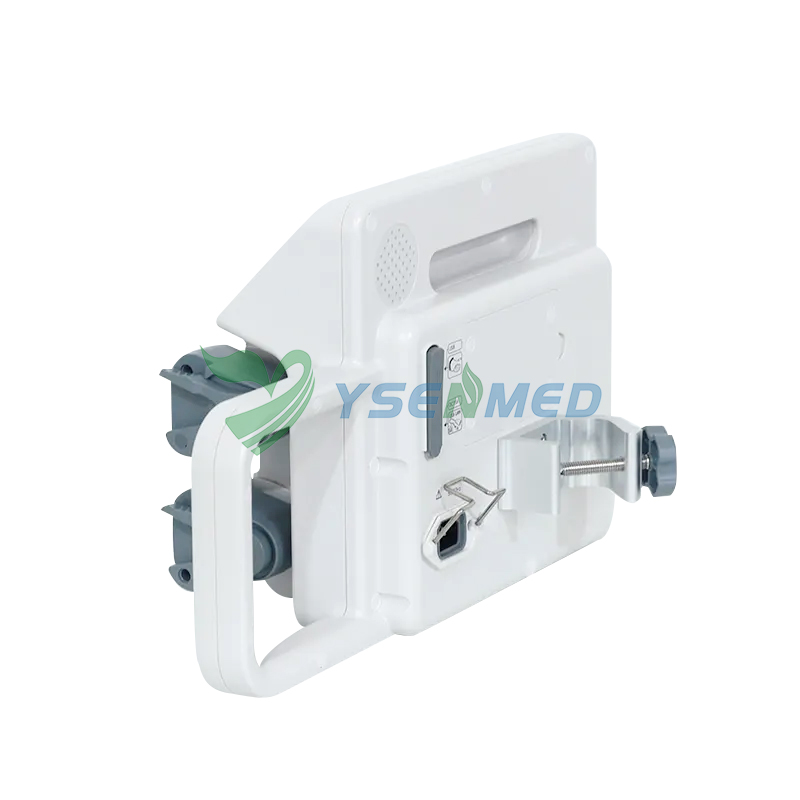

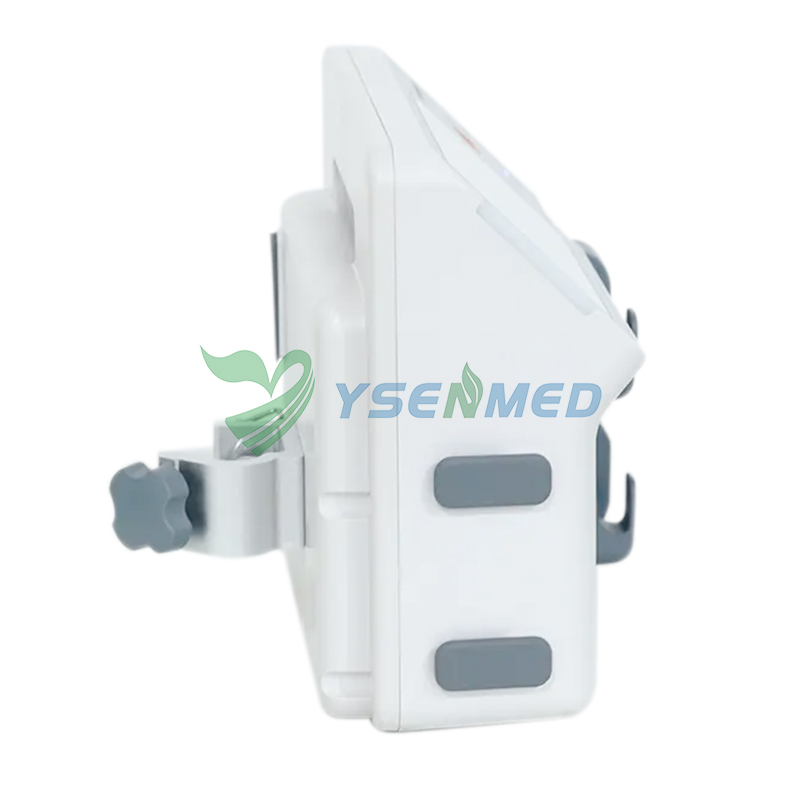

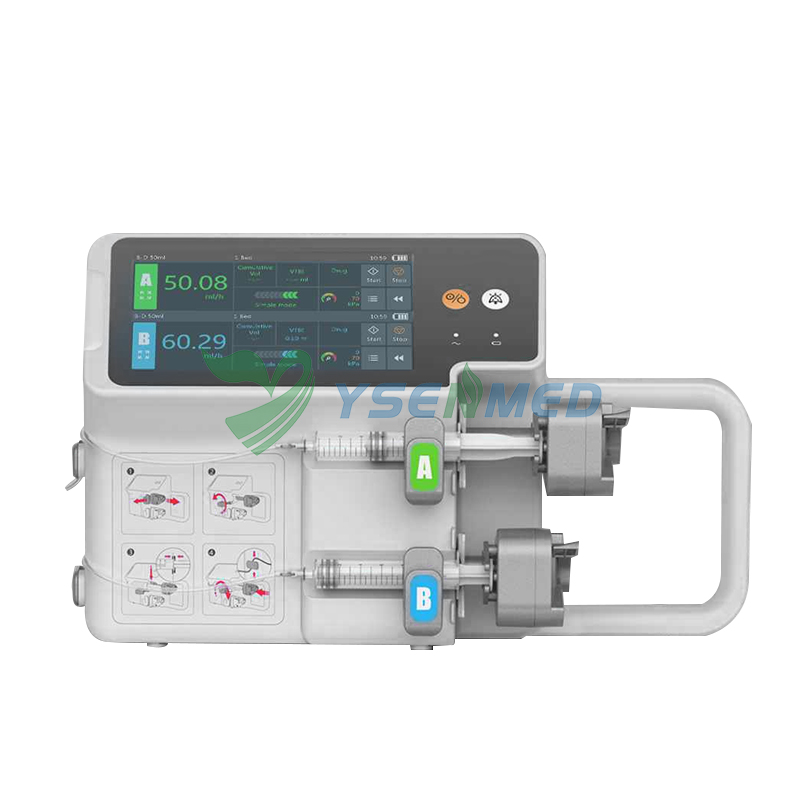

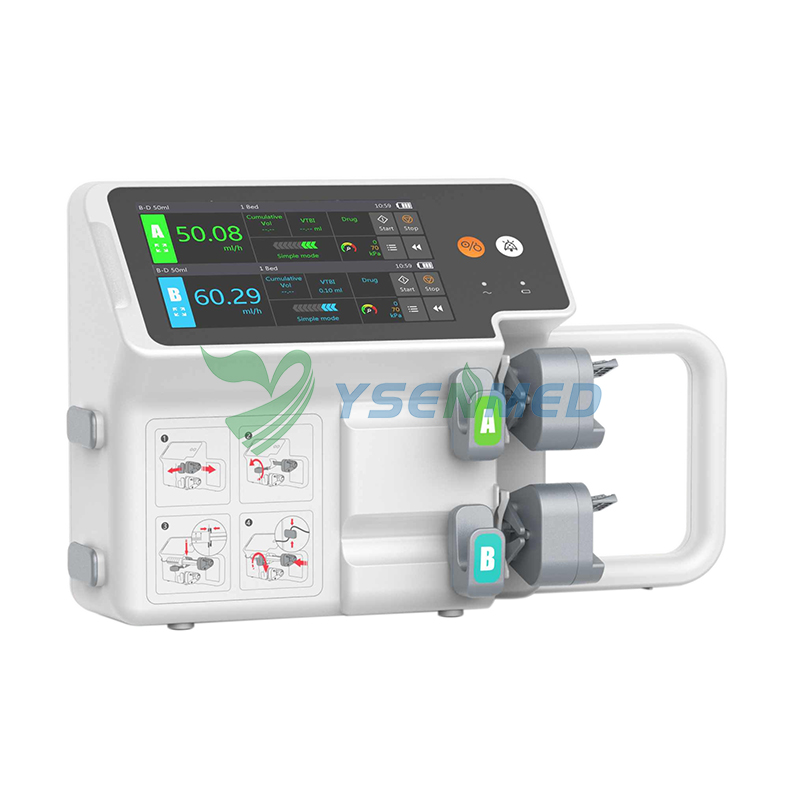

Dual channel Syringe Pump
Model:YSZS-DSP5

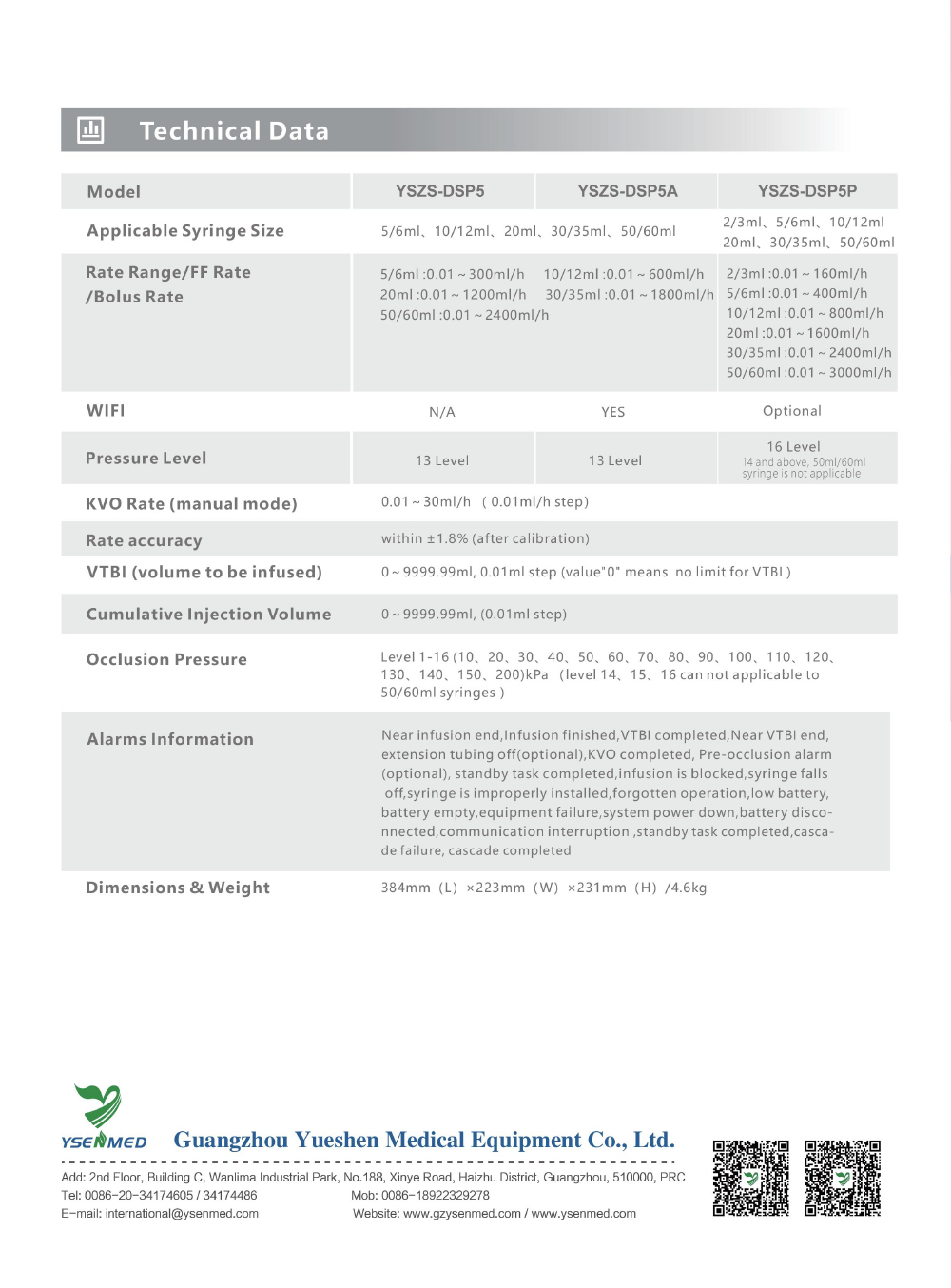

Technical Data
Model YSZS-DSP5 YSZS-DSP5A YSZS-DSP5P
Applicable Syringe Size 5/6ml、10/12ml、20ml 30/35m、50/60ml 2/3ml、5/6ml、10/12ml
20ml、30/35ml、50/60ml
Rate Range/FF Rate
/Bolus Rate 5/6ml:0.01~300mlh
20ml:0.01~1200ml/h
50/60ml:0.01~2400ml/h 10/12ml:0.01~600ml/h
30/35ml:0.01~1800ml/h 2/3ml:0.01~160ml/h
5/6ml:0.01~400ml/h
10/12ml:0.01~800ml/h
20ml:0.01~1600ml/h
30/35ml:0.01~2400ml/h
50/60ml:0.01~3000ml/h
WIFI N/A YES Optional
Pressure Level 13 Level 13 Level 16 Level
14 and above, 50ml/60ml
syringe is not applicable
KVO Rate (manual mode) 0.01~30ml/h(0.01ml/h step)
Rate accuracy within ±1.8%(after calibration)
VTBI (volume to be infused) 0~9999.99ml, 0.01mlstep(value"0" means no limit for VTBI)
Cumulative Injection Volume 0~9999.99ml, (0.01ml step)
Occlusion Pressure Level 1-16(10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150, 200) kPa (level14, 15, 16 can not applicable to 50/60mlsyringes)
Alarms Information Near infusion end, Infusion finished, VTBI completed, Near VTBI end, extension tubing off(optional), standby task completed, infusion is blocked, syringe falls off, syringe is improperly installed, forgotten operation, low battery, battery empty, equipment failure, system power down, battery disconnected, communication interruption, standby task completed, cascade failure, cascade completed
Dimensions &Weight 384mm(L)x223mm(W)x231mm(H)/4.6kg

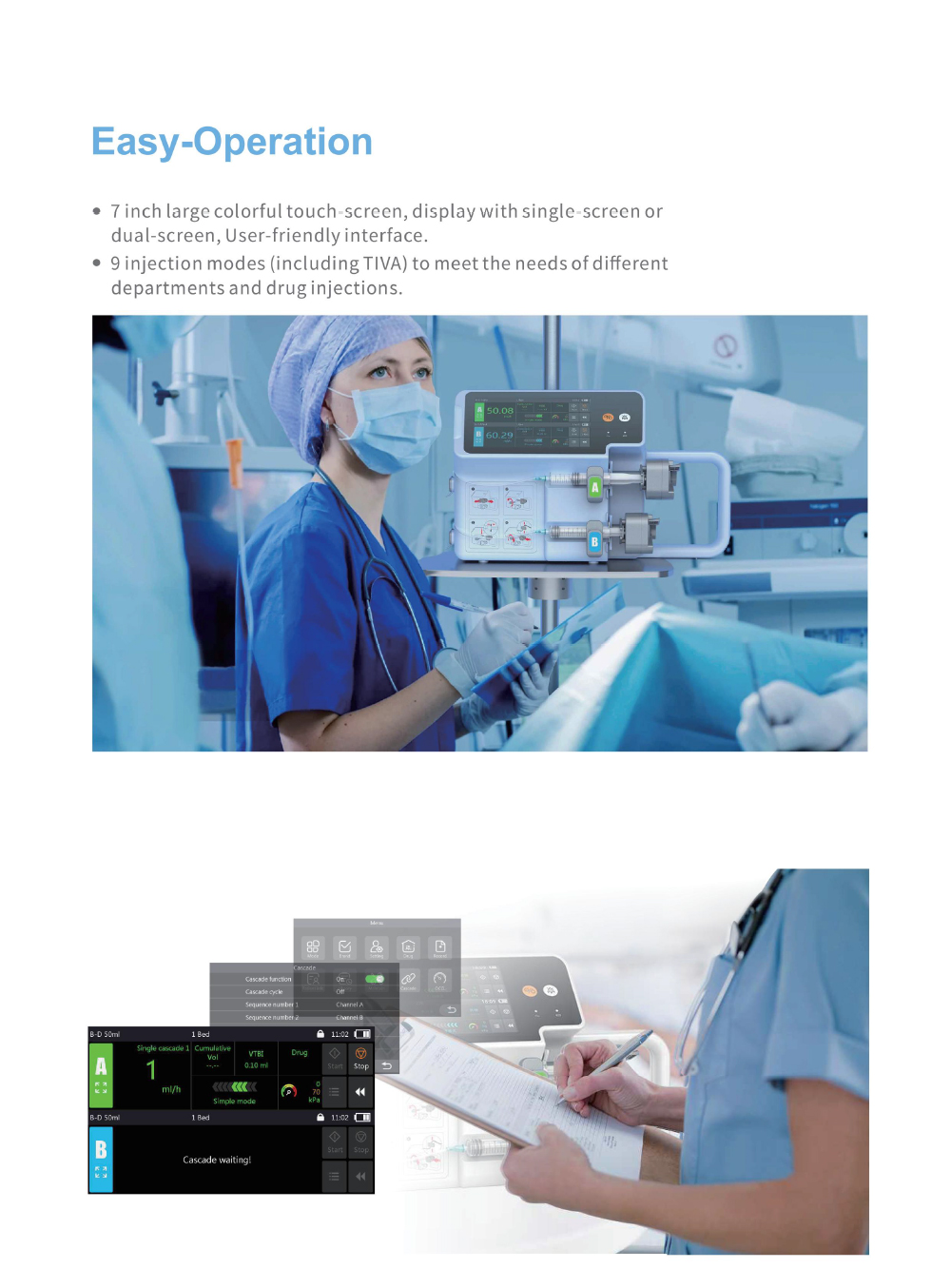

Easy-Operation
7 inch large colorful touch-screen, display with single-screen or dual-screen, User-friendly interface.
9 injection modes (including TIVA) to meet the needs of different departments and drug injections.

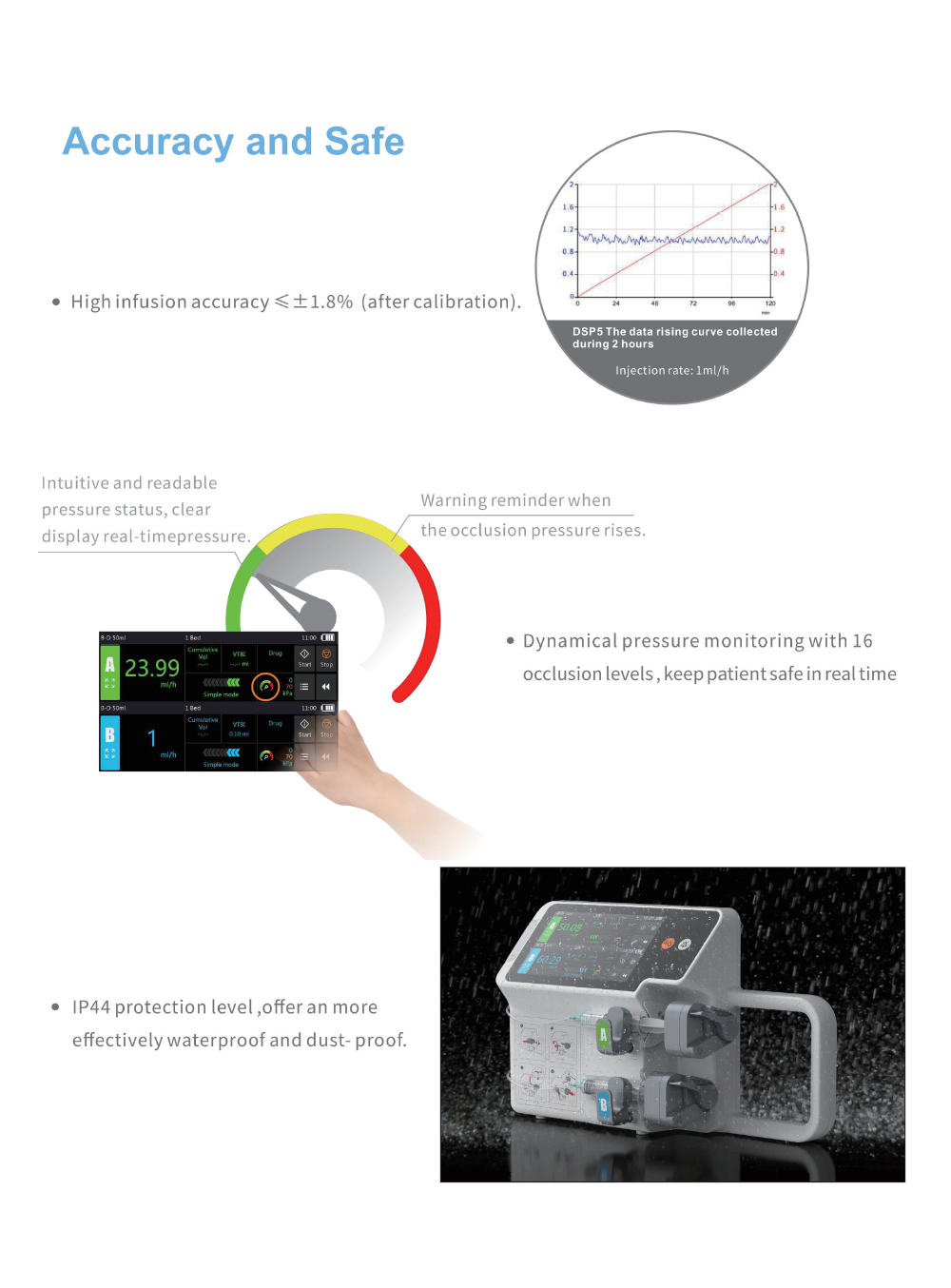

Accuracy and Safe
High infusion accuracy≤±1.8% (after calibration).
Dynamical pressure monitoring with 16 occlusion levels, keep patient safe in real time
