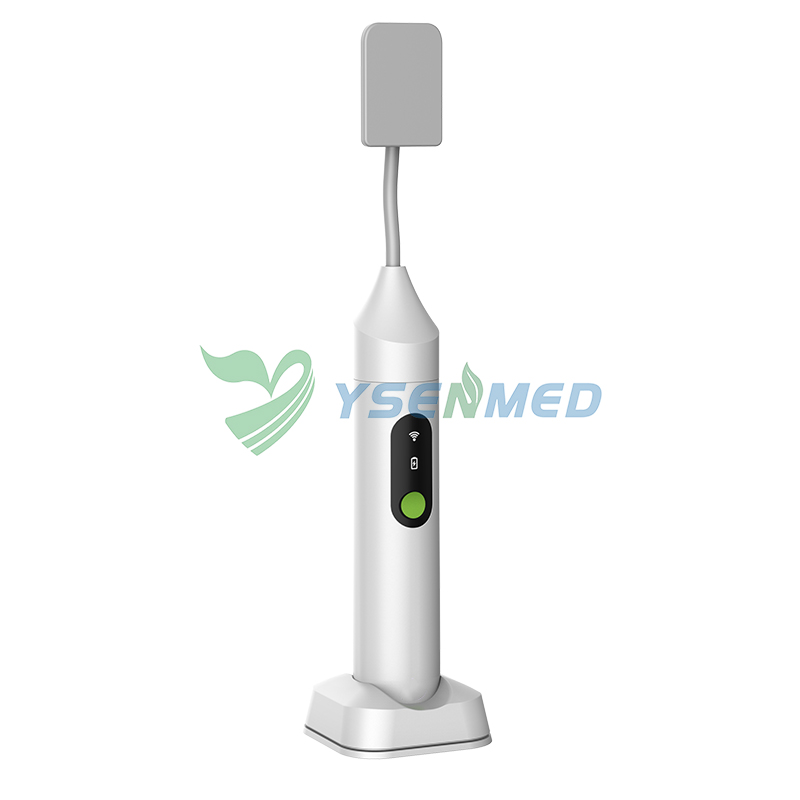

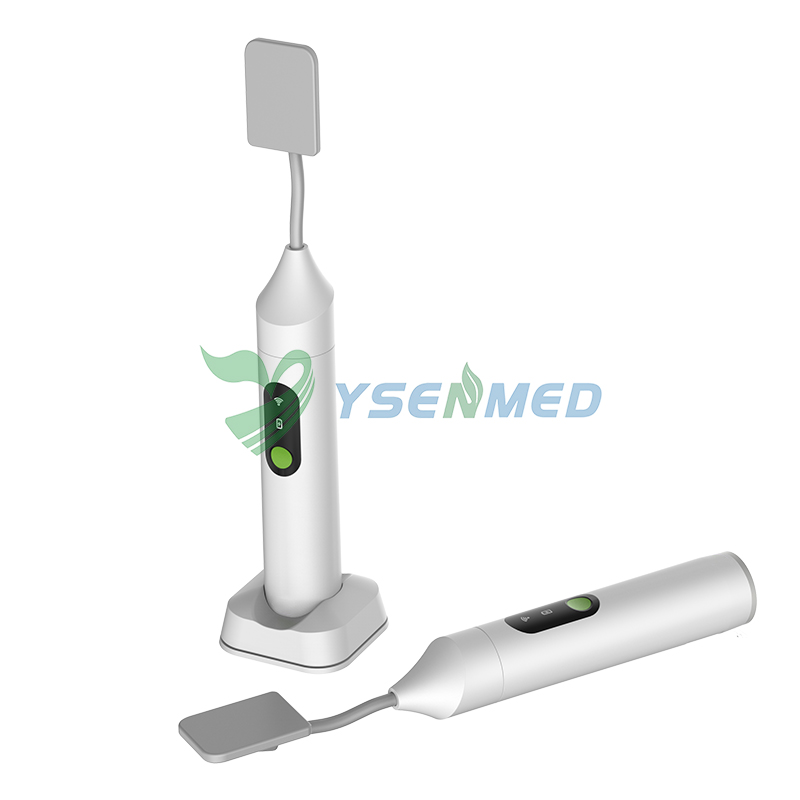

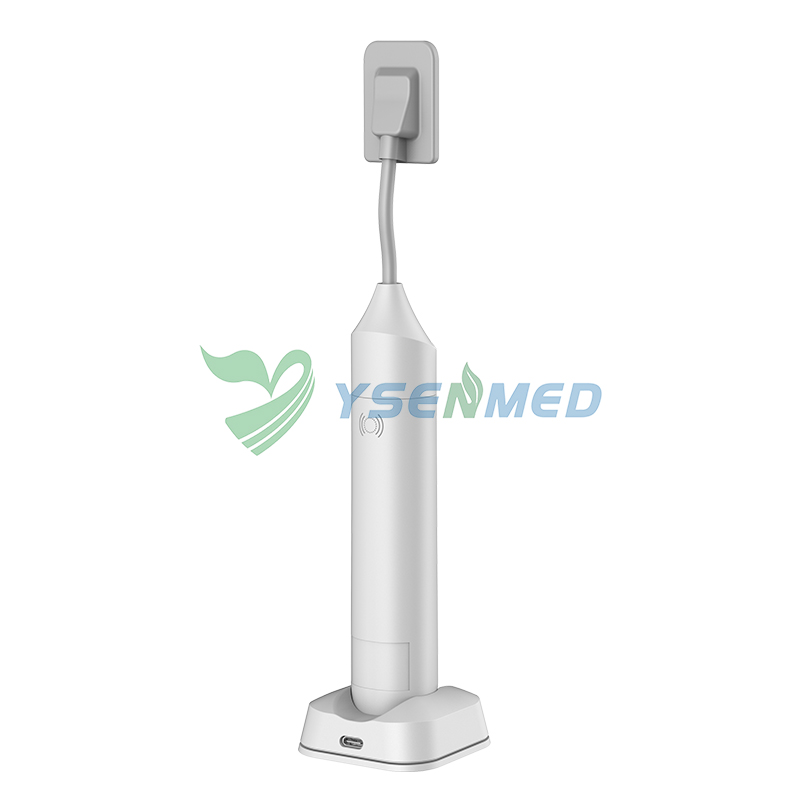

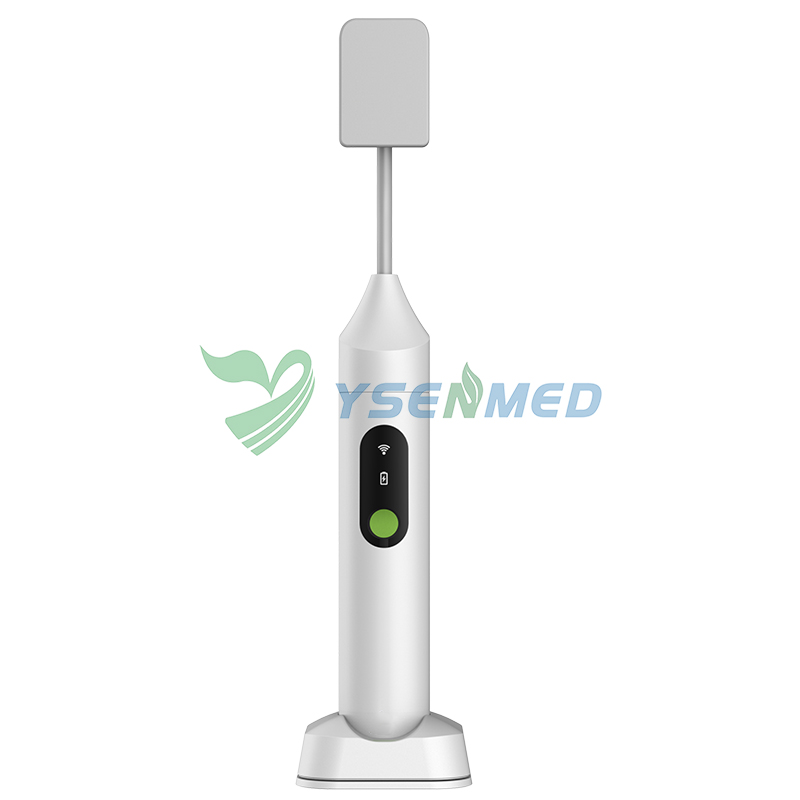

Digital Intra-oral Sensors

Model:YSRVG-2XW
Features
CMOS detector technology
Low dose clinical imaging
High resolution
Wide dynamic range
YSRVG-2XW suitable for adults intra-oral imaging
Slim, rounded corner and smooth edge
Wireless data transmission
AED trigger, fast and easy workflow
Durable material and components
Friendly software user interface

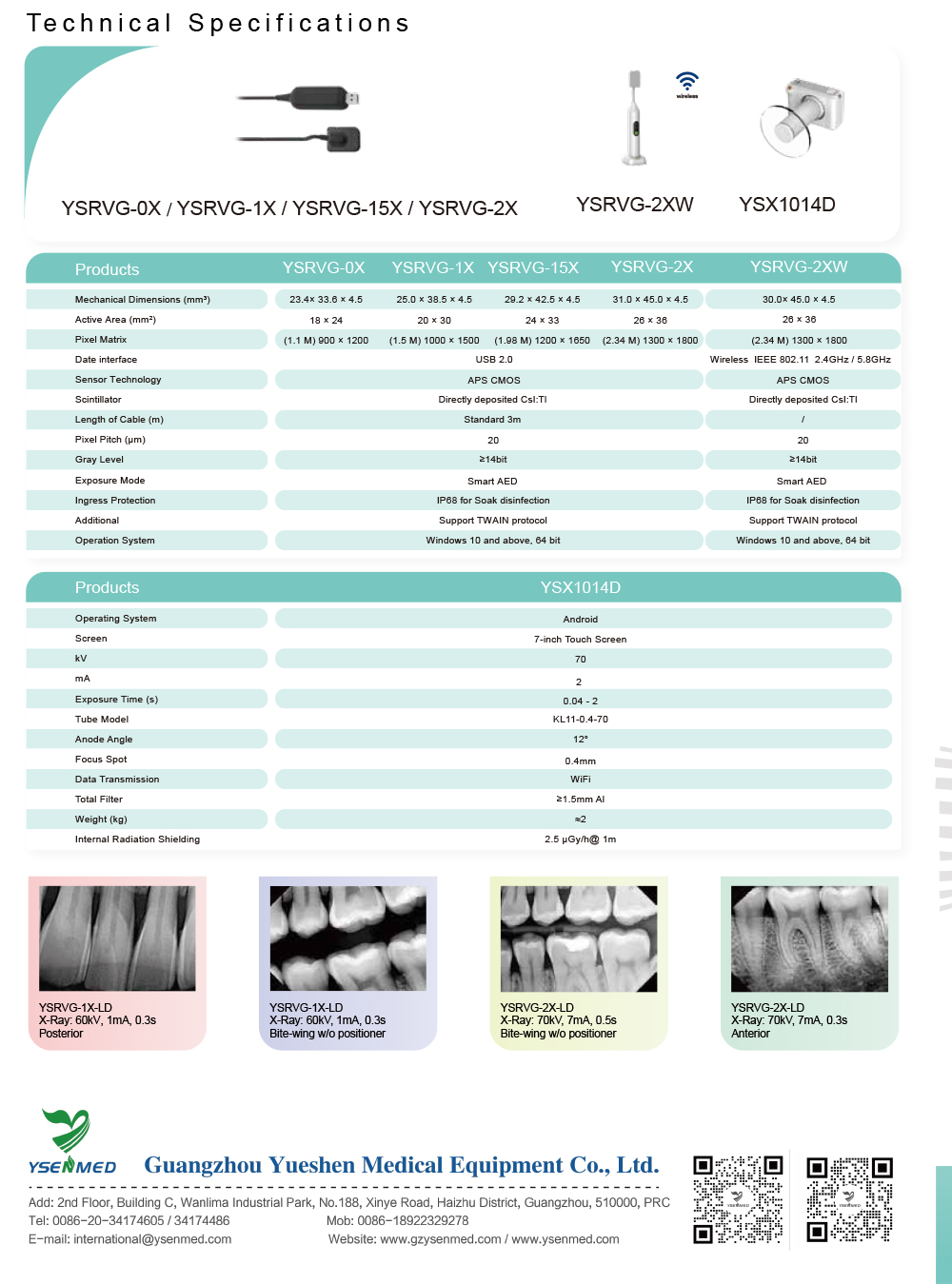

Technical Parameters
YSRVG-2XW
Detector Technology CMOS Dimensions (mm3) 30.4 × 41.9 × 4.5
Scintillator Direectly deposited CsI:TI Length of cable (m) /
Pixel Pitch (μm) 20 Housing material Kevlar
Active Area (mm²) 26x 36 X-Ray shielding Pb-shield behind active area
AD Conversion (bit) 14 Radiation dose ≥ 50Gy
Trigger Mode AED Ingress Protection IP68
X-ray Exposure Window (s) Max. 5s Operating Temperature (℃) 10 ~ 40
X-ray Energy Range (kV) 55~100kV Storage & Transport Temperature with Package (℃) -10~60
Data Interface 5G Wifi Operating Humidity (% RH) 20 ~ 90 (Non-Condensing)
Power Dissipation (W) ≤0.8W Storage & Transport Humidity with Package (% RH) 10 ~ 95 (Non-Condensing)
