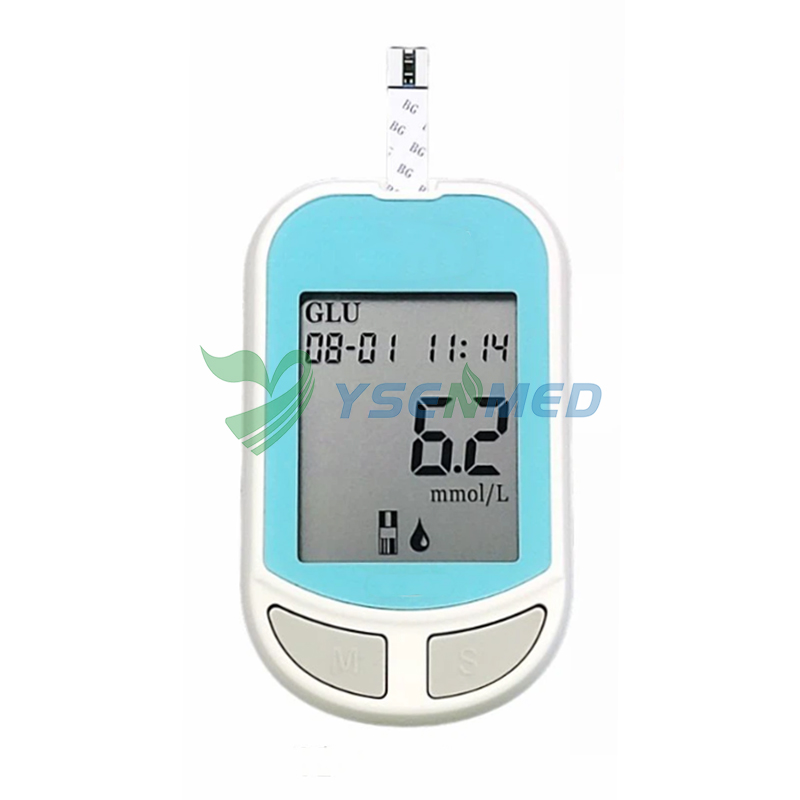

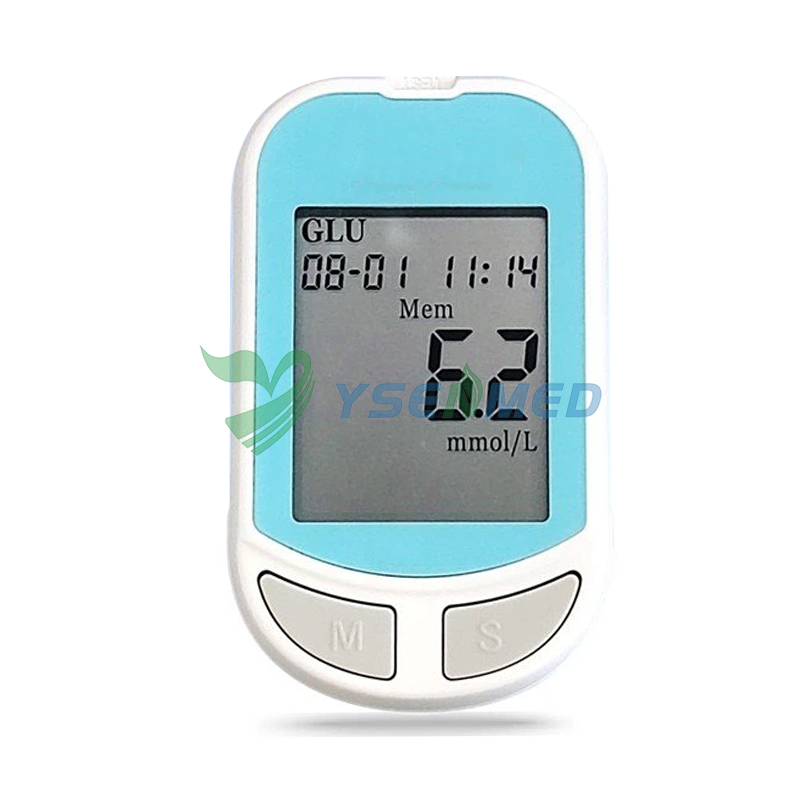

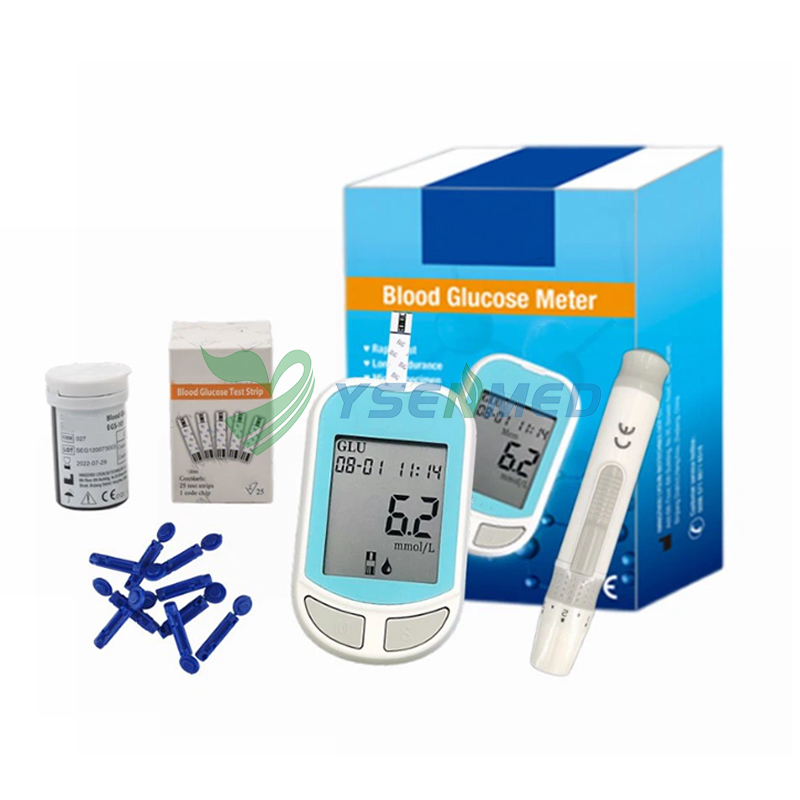

Digital Blood Glucose Monitor Blood Glucose Meter
Model:YSTE-BGM101
Principle of measurement The test is based on electrochemical sensor technology. The meter measures the electrical current generated by the reaction of glucose with the reagent of the strip,and displays the corresponding blood glucose level. The intensity of the current produced by the reaction depends on the amount of glucose in the blood sample.
Analysis Item: Glucose
Rapid Test
Test result in 5 seconds
Code
Code/No Code
Easy Operation
Automatic strip ejection
Intelligent Data
Independent statistics before and after meals
Test Results Specification
Methodology Electrochemistry Method
Measurement Range Glu:20~600mg/dL(1.1-33.3mmol/L)
Specimen Fresh capillary or venous whole blood
Power Source 3.0V CR2032 lithium battery
Battery Endurance Approximately 1,000 tests
Units of Measurement mmol/L, mg/dL
Memory 200 records
Automatic Shut Off 1 minute after displaying results
Meter Size 84.7*52*18mm(L*W*H)
Weight 50g
Meter Storage Conditions 0-55°C; ≤90% RH
System Operating conditions 8-37°C; 0-90% RH; altitude 3000m
Test strip Storage conditions 10~30°C
Warranty Period 2 years
Meter Shelf Life 5 years
Test Strip Shelf Life 2 years
Product advantages
Long-Endurance
1 battery for 1000 tests
Micro specimen and Rapid test in 5 seconds
Only need 1μL fresh cappilary or venous
