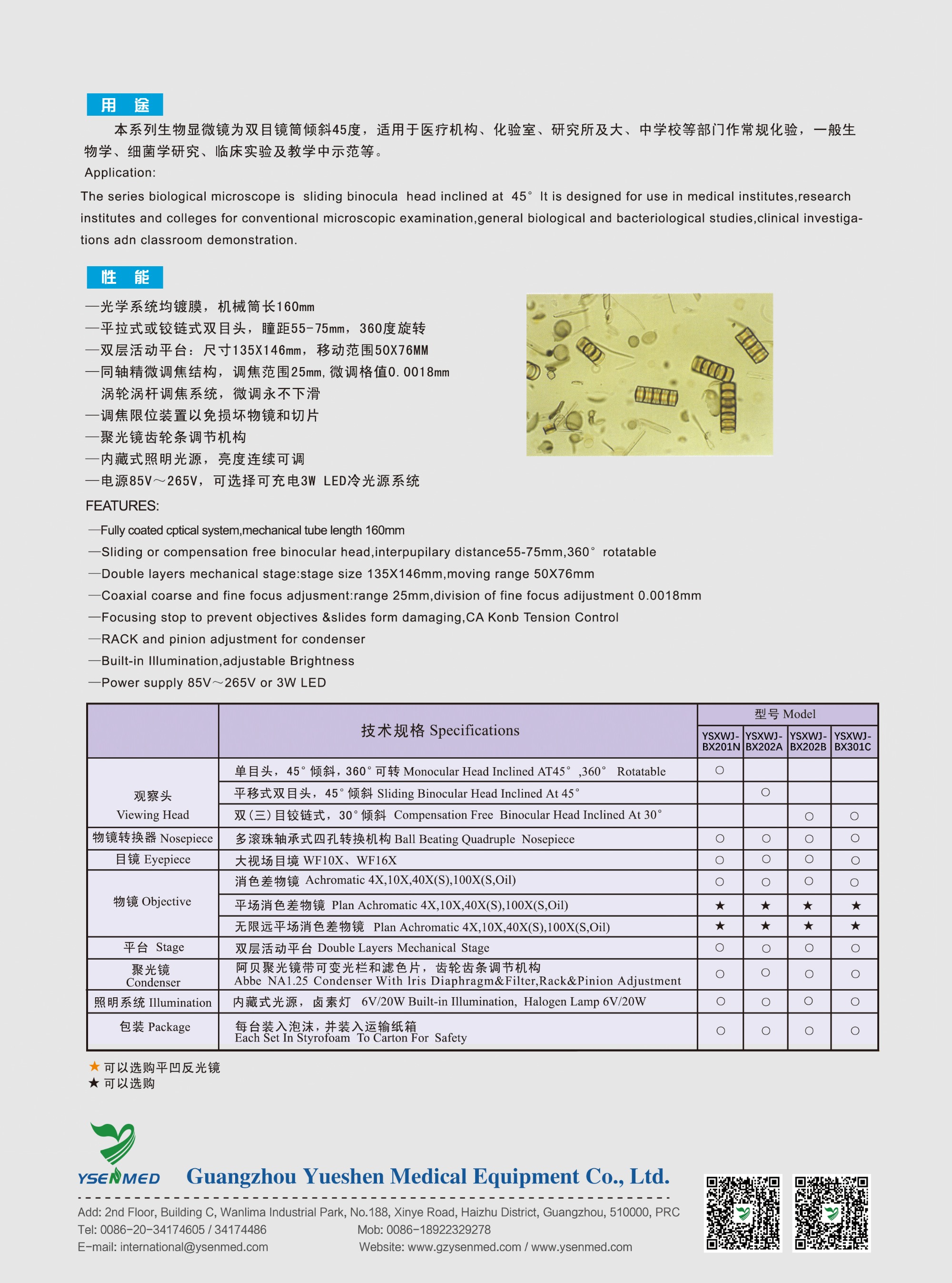

Features
Fully coated optical system, mechanical tube length 160mm.
Sliding or compensation-free binocular head, interpupillary distance 55-75mm, 360°rotatable.
Double layers mechanical stage: stage size 135X146mm, moving range 50X76mm.
Coaxial coarse and fine focus adjustment: range 25mm, division of fine focus adjustment 0.0018mm.
Focusing stop to prevent objectives & slides from damaging, CA Konb Tension Control.
RACK and pinion adjustment for the condenser.
Built-in Illumination, Adjustable Brightness.
Power supply 85V~265V or 3W LED.
Application

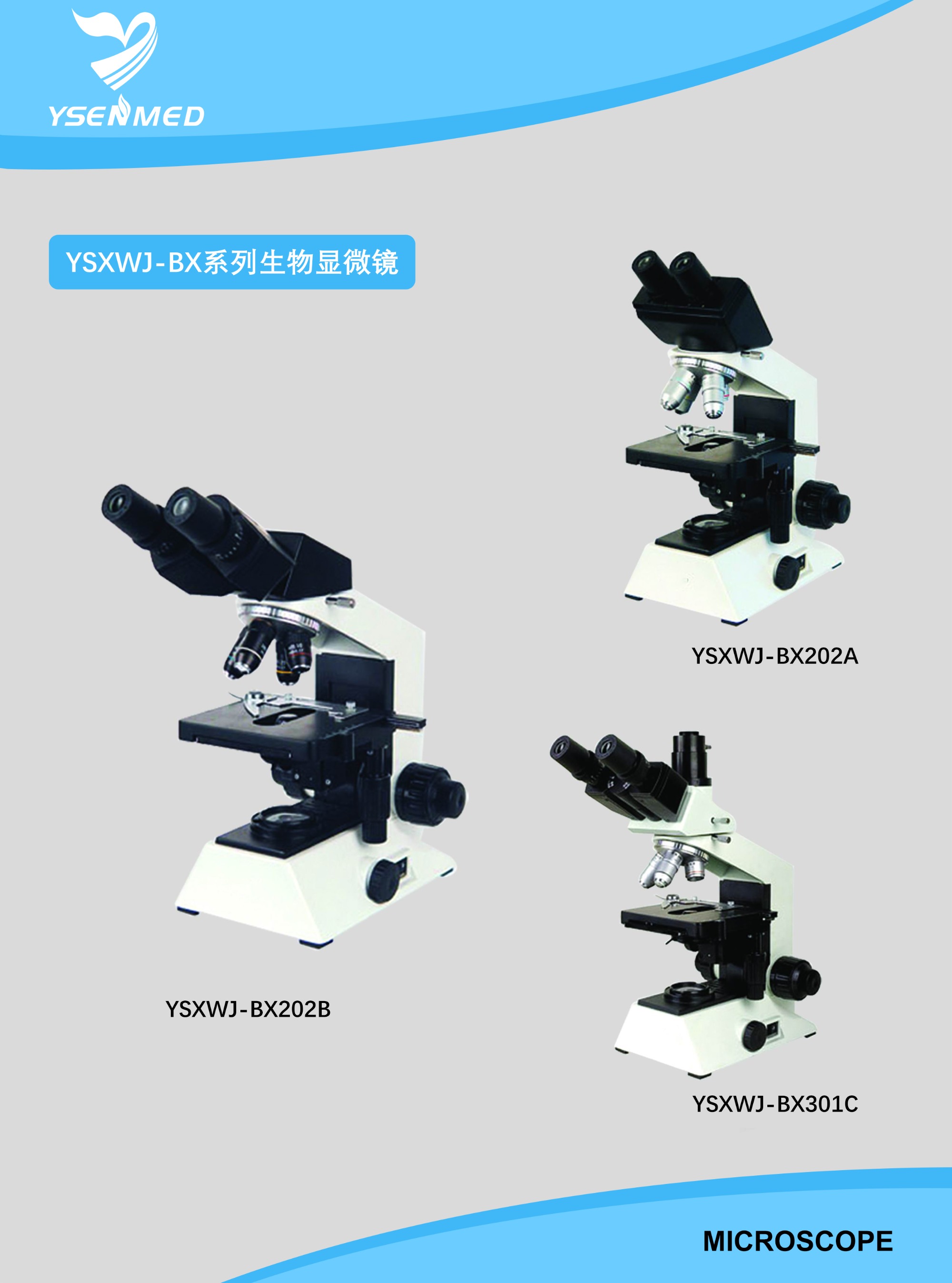

The series biological microscope is a sliding binocular head inclined at 45°.
