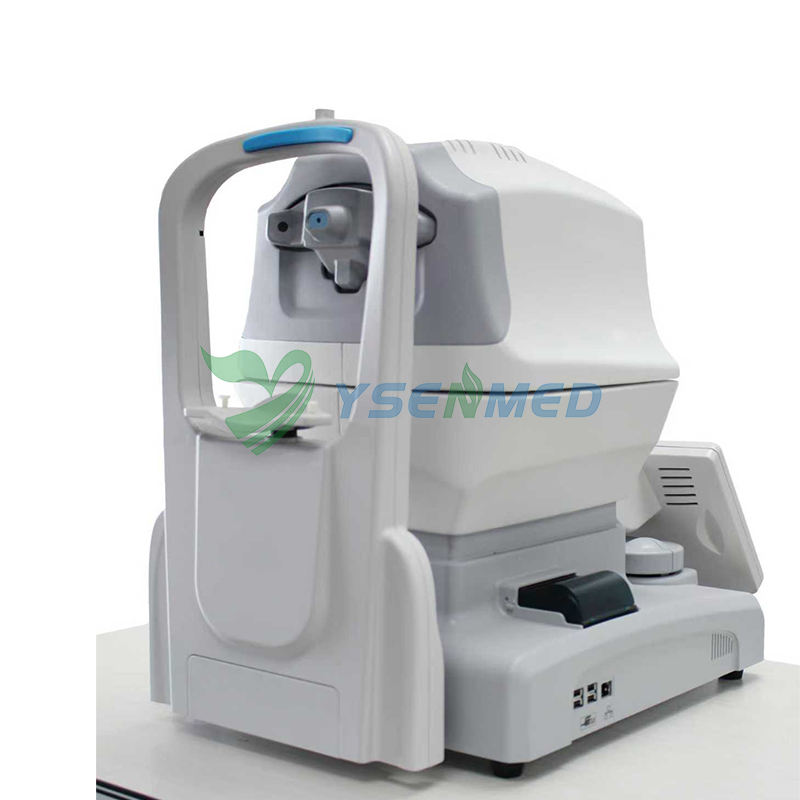

Auto Non-contact Tonometer YSYYJ1000

Model: YSYYJ1000
  • ModelYSYYJ1000
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • -
    +
    Categories:Tonometer
    Share:
    Description Get Price Review

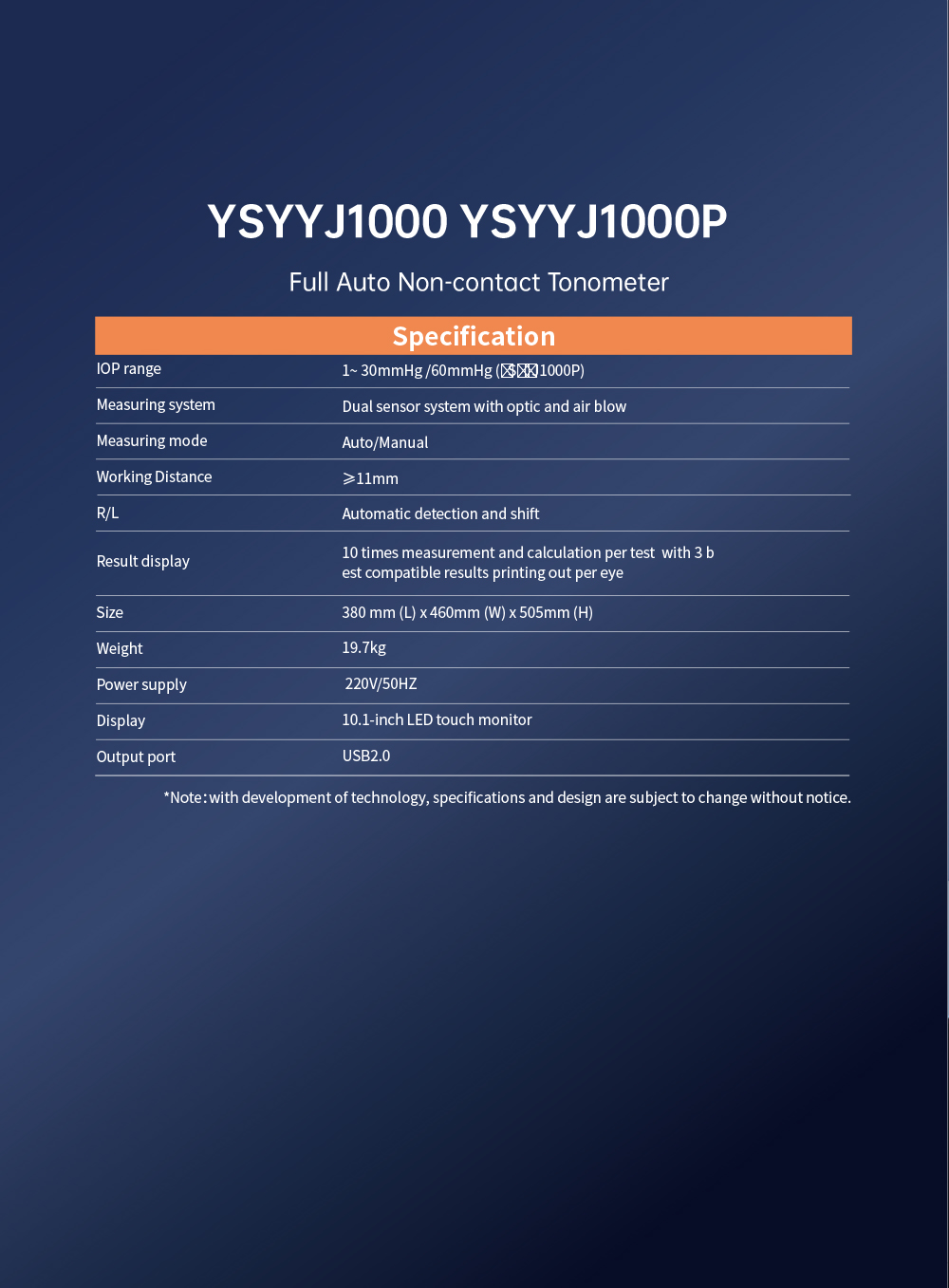

    Specifications



    Basic Specifications



    Intraocular pressure (IOP) measuring range: 1mmHg~ 30mmHg /1mmHg ~60mmHg ( precision of 1mmHg)

    Measuring system: dual sensor system of light and pressure

    Working distance:11mm

    R/L: automatic detection and display

    Measuring result: 10 times per eye; 3 times result printing per eye

    Recording: build-in printer

    Measuring mode: auto/manual

    Focus: when luminous spot is in the focus frame, 2 modes can be chosen.

          auto mode: auto intraocular pressure measurement

          manual mode: when it's good focus, the frame will turn yellow into green, and click to start the measurement

    Error indication: if the measurement signal is weak, the IOP will be enclosed by ( ), or display “ERR ”

    Safety limit button: install measurement for mini-mum distance between head and patient

    Safety functions: the distance between air nozzle and cornea is controlled in preset range(such as 11mm); it will stop going forward when the cornea is too closed to air head.

    Movement range:30mmfront to back)/ 90mm(left to right)/ 30mm(vertical)

    Jaw layer vertical movement: 0~65mm with under jaw layer

    Display mode: 10.1-inch HDMI color LED touch monitor

    Output port: USB2.0

    Working platform: electric elevating platform



    Others

    Size:380 mm (L) x 460mm (W) x 505mm (H)

    Weight:19.7kg

    Power supply: 220V/50HZ



    Notewith development of technology, specifications and design are subject to change without notice.

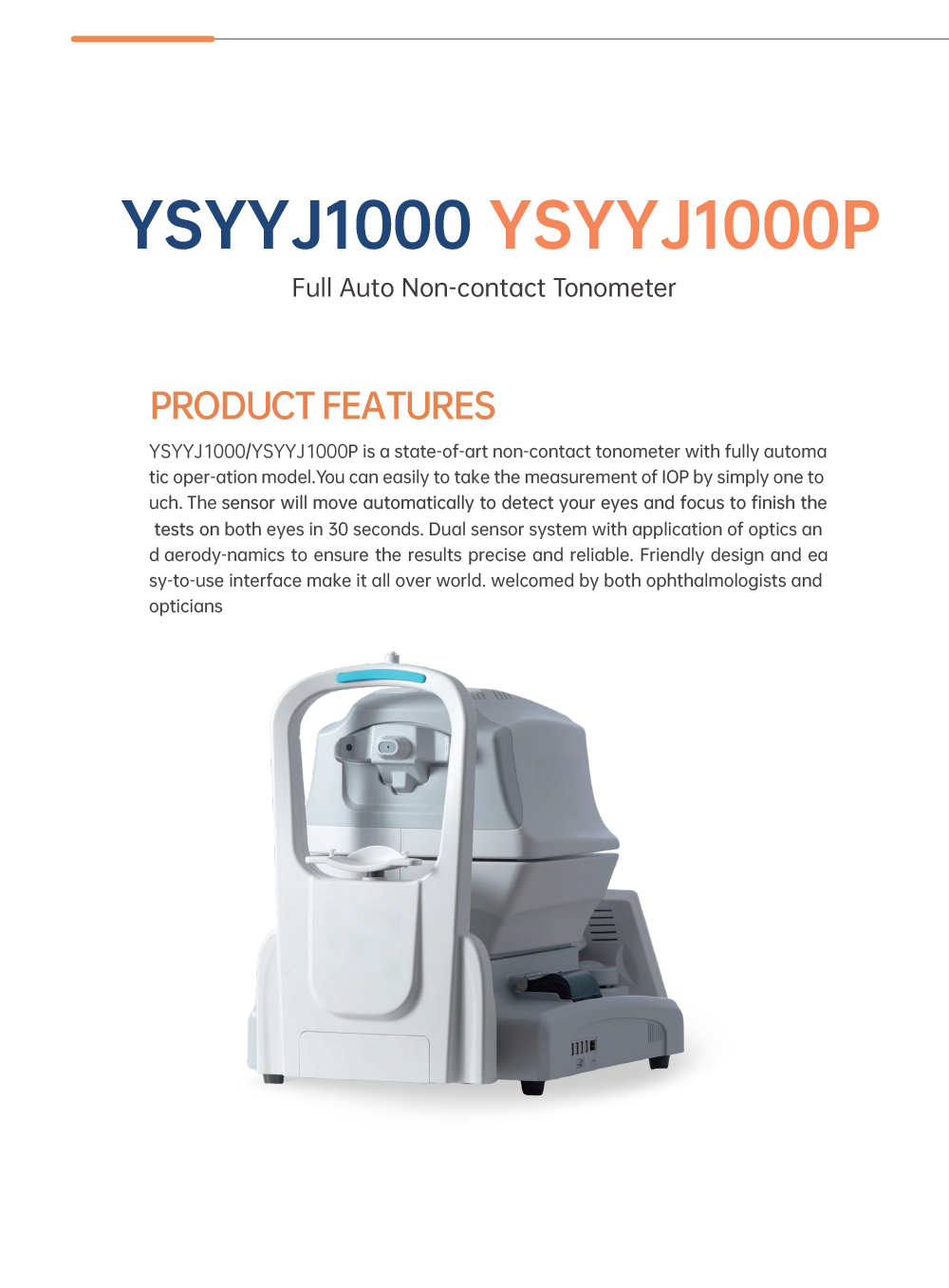

    Product features



    Auto tonometer utilizes image control and feature recognition for auto 3-D positioning of xyz with reliable judgment and measurement results, and easy to operate. The air non-contact approach to measure IOP can also be used for corneal thickness (YSYYJ1000P).

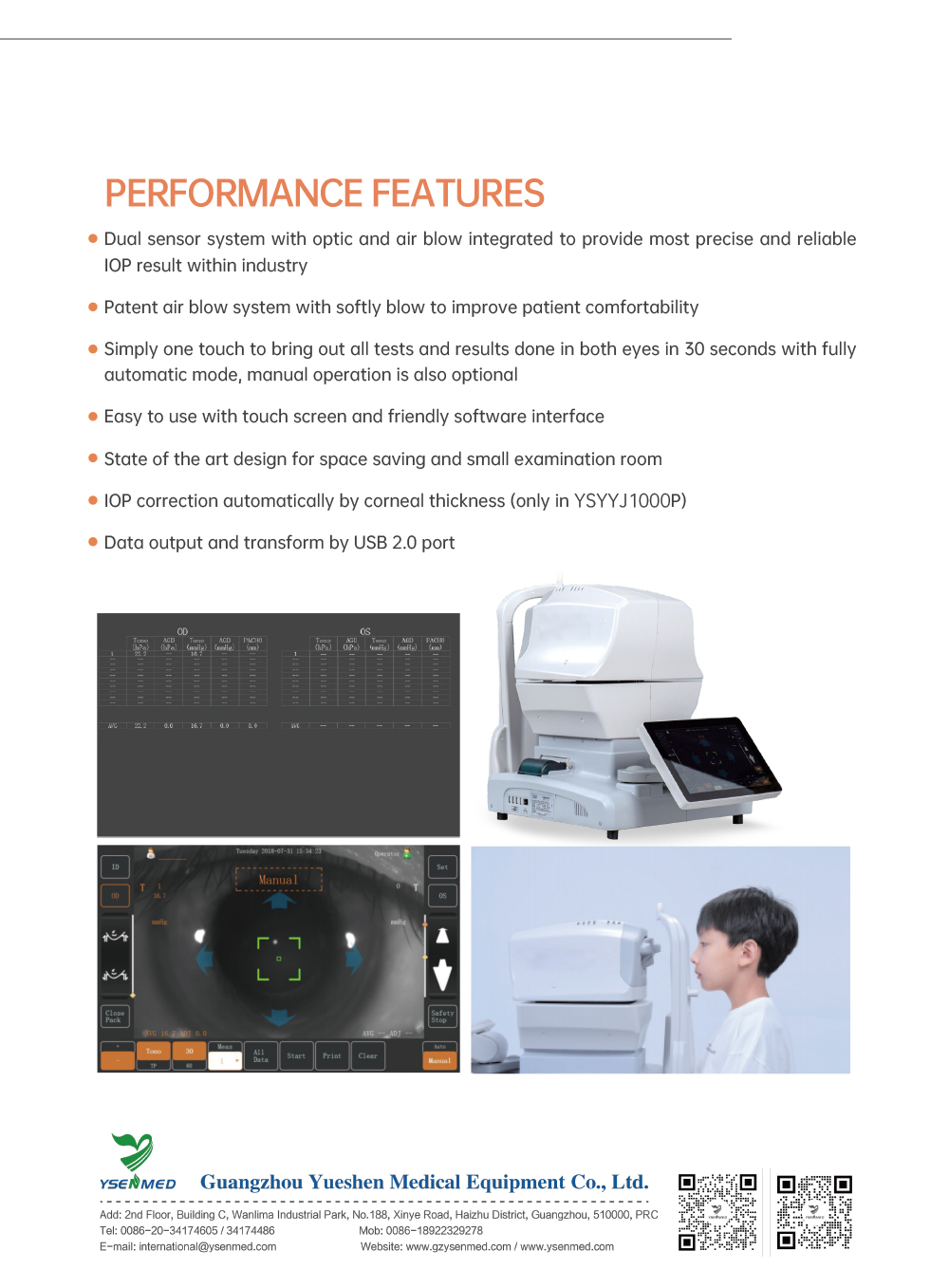

    Performance Features



    Auto 3-D positioning of xyz results in precise and reliable measurement

    Full-auto measurement for both right and left eye data without manual switch

    Easy to operate the tonometer with color touch monitor

    Stable data of IOP through soft air measurement

    To compensate corneal thickness measurement of IOP
