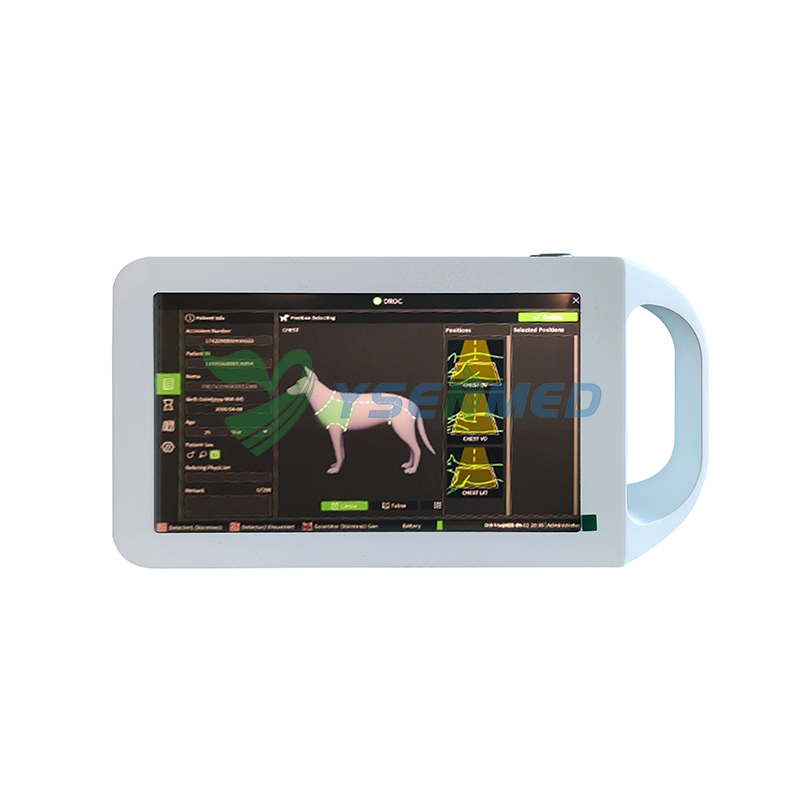

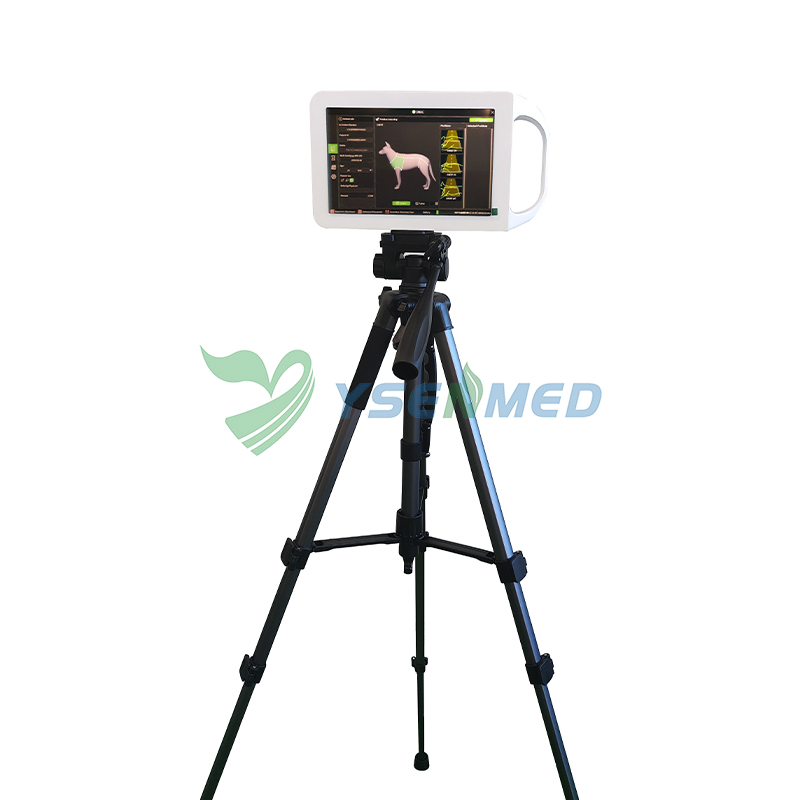

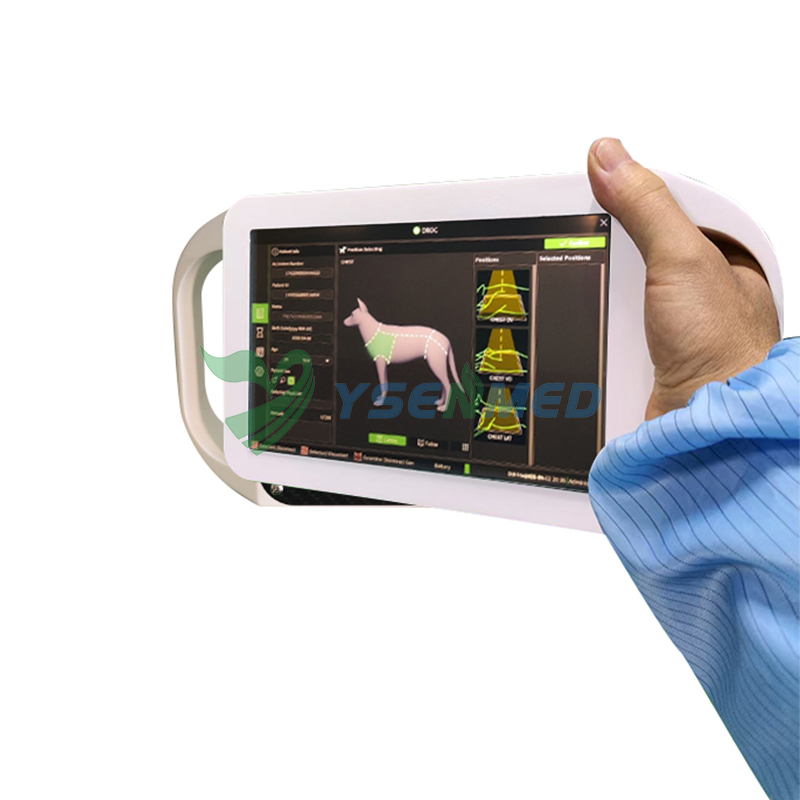

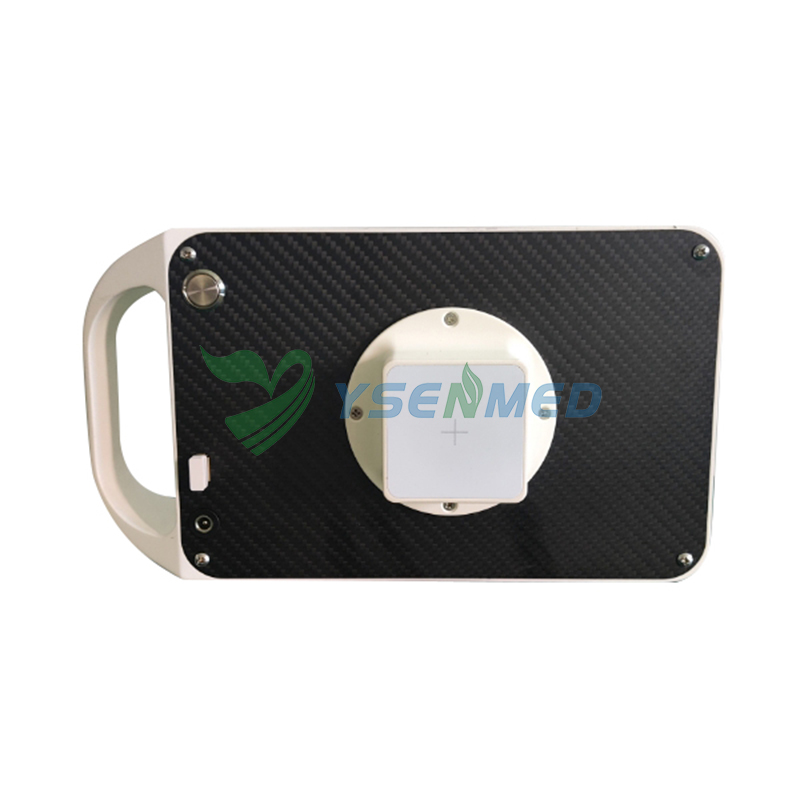

YSENMED 800W Veterinary Portable Handheld X-ray Unit
Model:YSX-P800W Vet
Technical parameters
Specification
Power Input Mono-phase, AC power 220V±10%
Frequency 50Hz/60Hz±1Hz
Output 25.2 VDC, 1.5A
Battery 22.2V (polymer lithium ion ), 5000mAh
kV (adjustable) 40 -85 kV (step:1 kV )
mA (adjustable) 1- 16mA (step:1 mA )
X-ray exposure time range 0.03-0.20secs (step: 10 millisecond )
0.010-4.00secs (step: 50 millisecond )
Screen 8" inches (resolution: 1280x800) IPS
X-ray tube Model
Inherent filter 0.5mm AL
Focus point 0.8X0.8mm
CPU 8G/16G, 256GeMMC, WIFI6
Dimension 280mm x 155mm x 65mm (length×width×height)
Weight 2.8kg±5%
