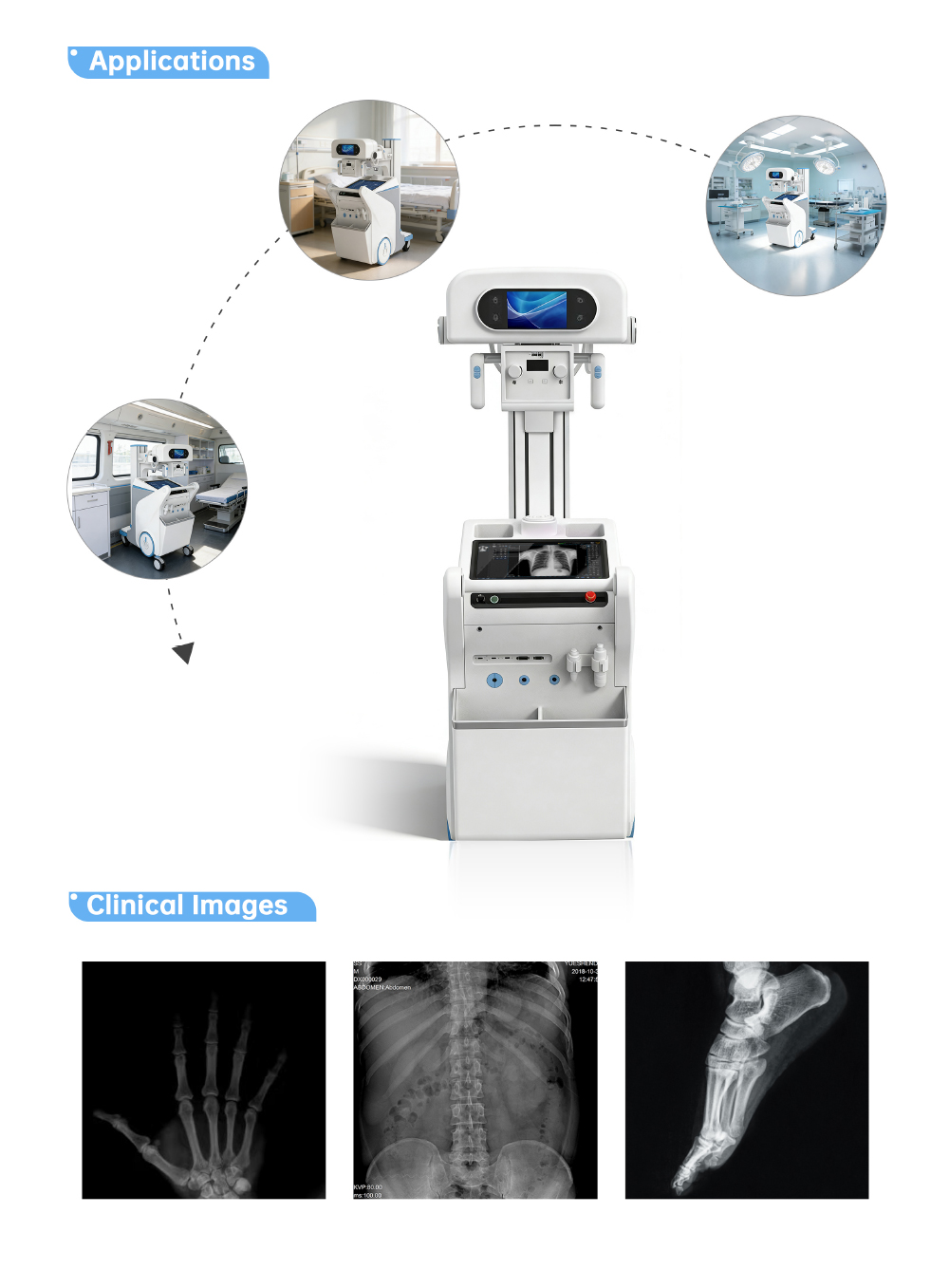

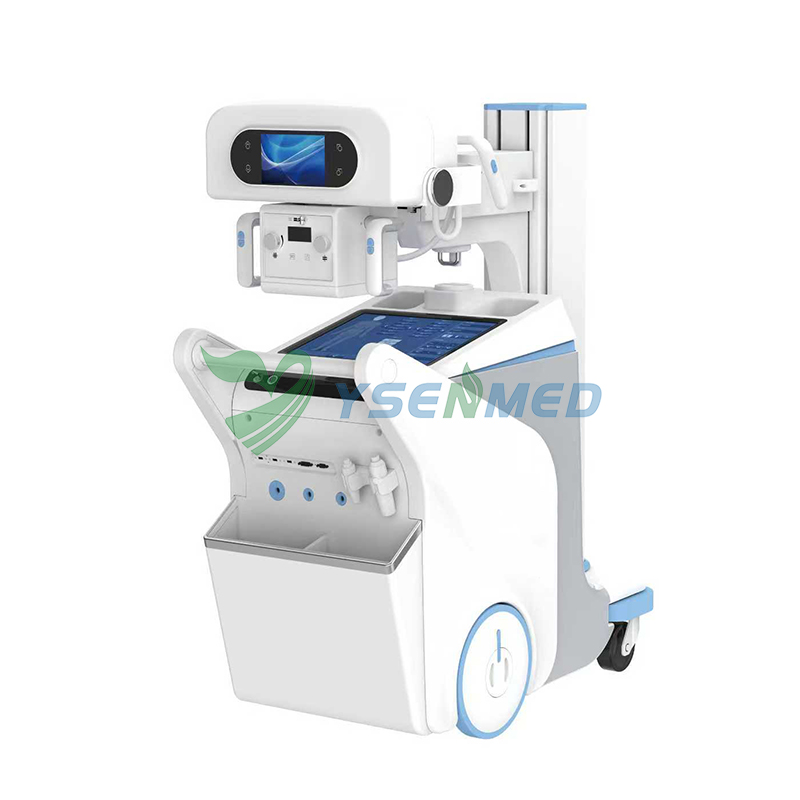

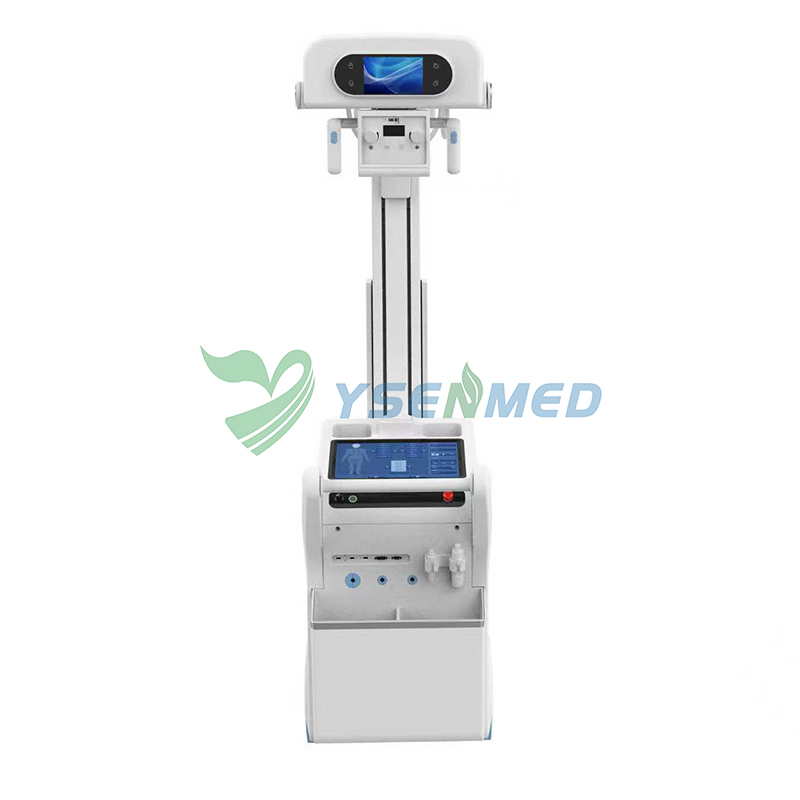

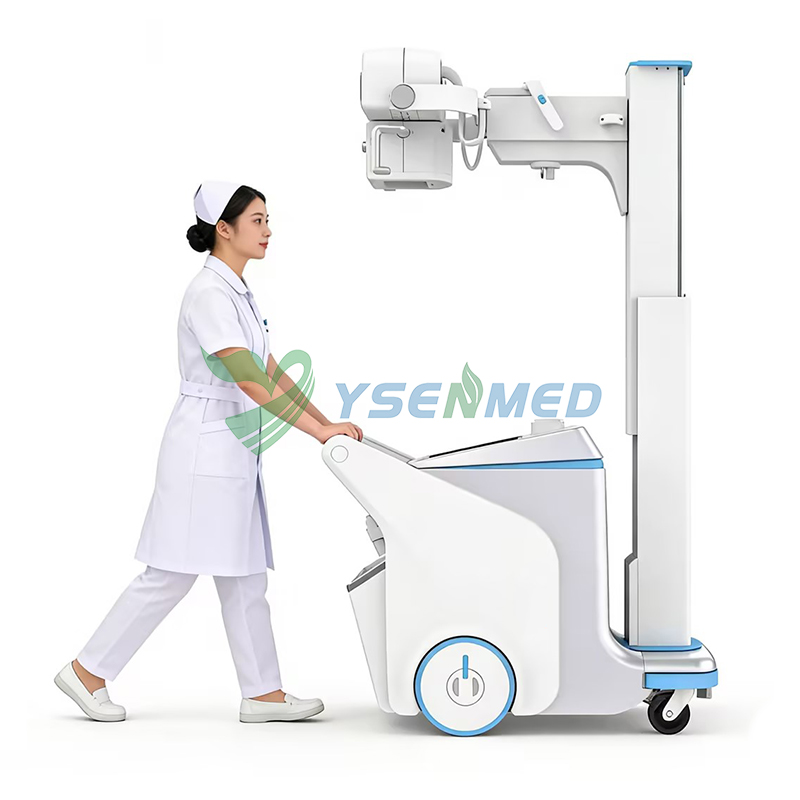

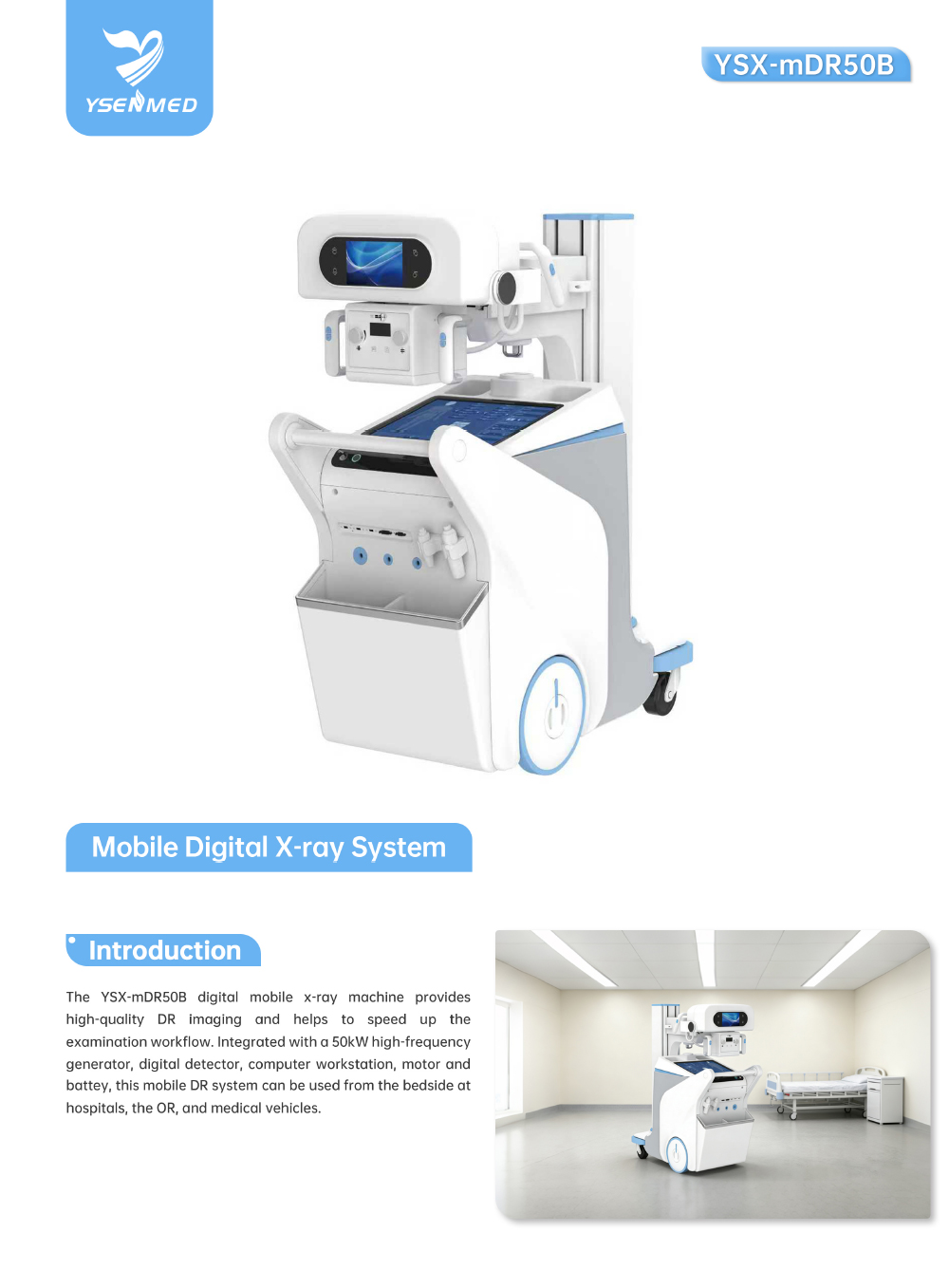

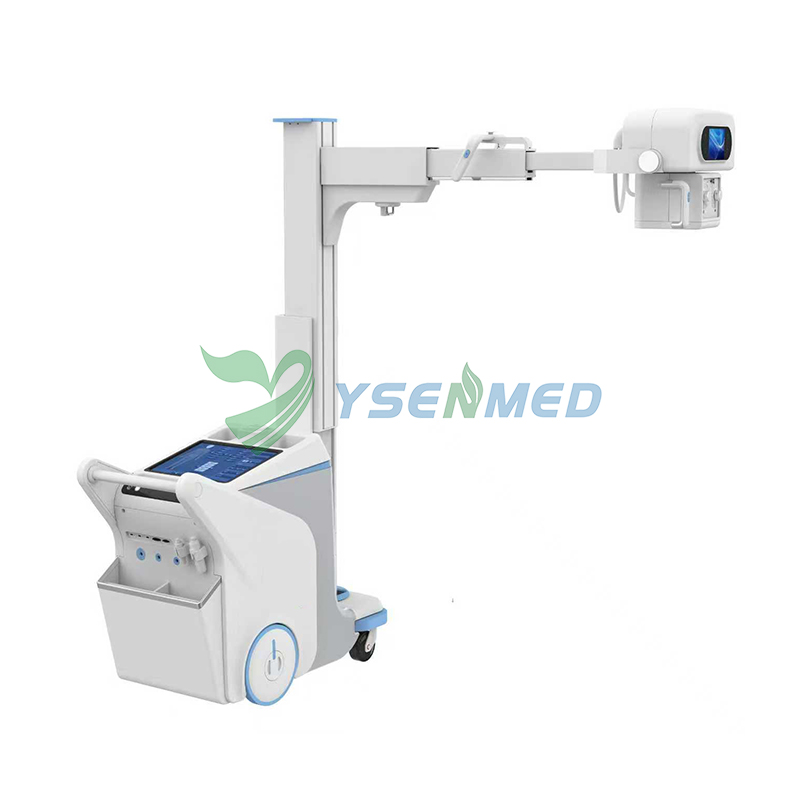

YSENMED 50kW Mobile Digital X-ray System
Model:YSX-mDR50B
Configurations
Brand Model Product Name Quantity
YSENMED YSTCQ-1417L Flat Panel Detector 14”x17” 1
YSENMED YSTX-3 DX Ray Diagnostic Workstation 1
YSENMED YSFSQ-M50A High Frequency Generator 1
YSENMED YSMXZ1301 X-Ray Tube 1
YSENMED YSXS-A1 Collimator 1
YSENMED YSMTYD50 Mobile Stand 1
/ Battery Power Unit 1
/ Tablet Option
Flat Panel Detector

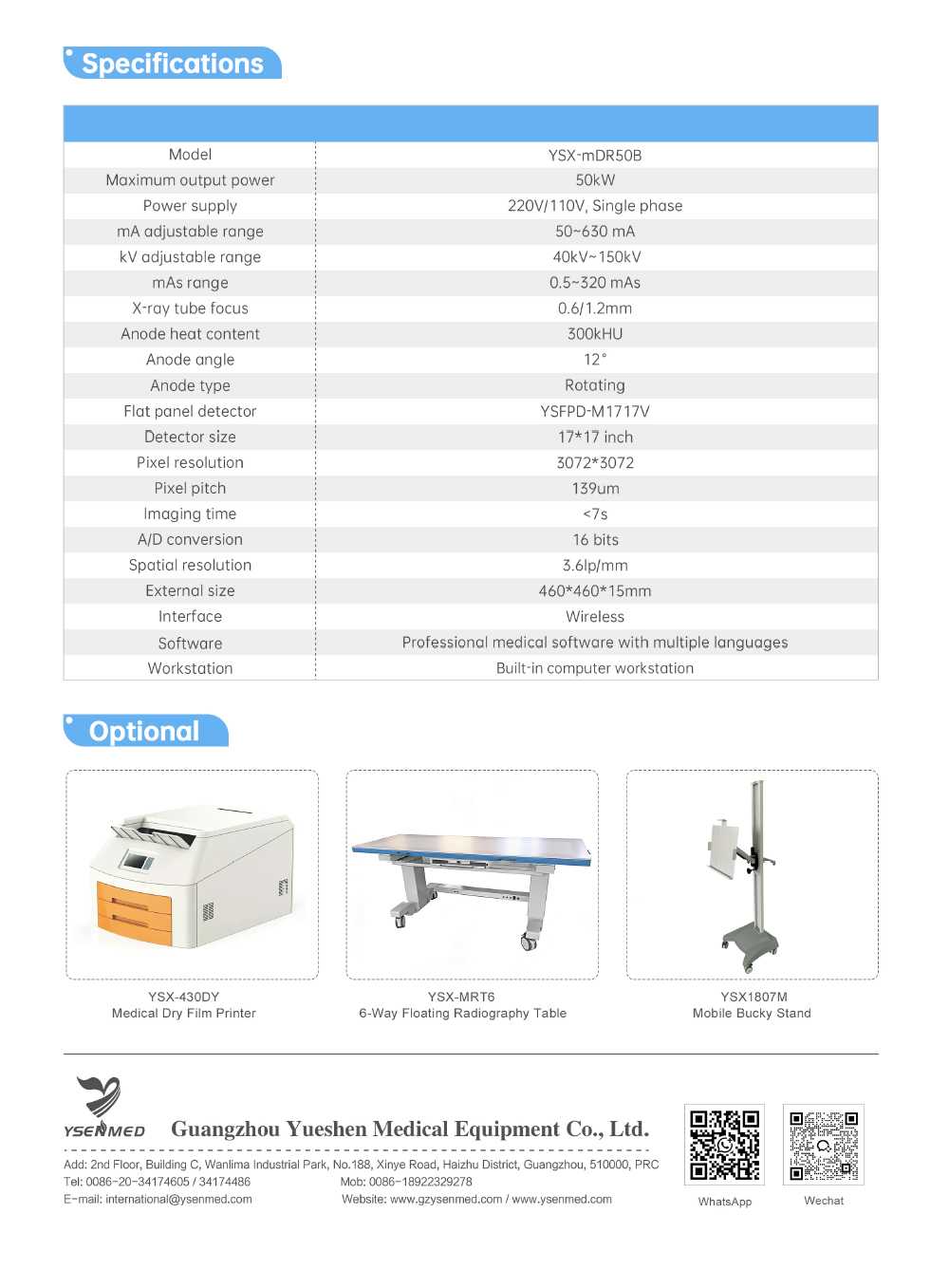

Specifications
Detector Technology: Wireless a-Si Flat Panel Detector
Scintillator Material: CsI
Images Size: 430mm x 430mm
Static Pixel Matrix: 3072 x 3072pixels
Effective Pixels: 9.4million
Pixel Size: 140μm
Spatial Resolution: 3.5lp/mm
Output Grayscale: 16bit
Acquisition time: ≤7s
Flat Panel Detector (Option)
Output grayscale: 16bit
Acquisition time: ≤6s
Preview time : ≤3s
High Frequency Generator
Specifications
Nominal output power: 50kW
kV range: 40~150kV, 1kV step
mA range: 50-630mA
mAs range: 0.5~320mAs
Input power: 220V/110V Single phase
X-ray tube
Specifications
Focus: 0.6/1.2mm
Voltage: 150kV
Anode Type: Rotating
Anode Heat Capacity: 300kHU
Anode Angle: 12°

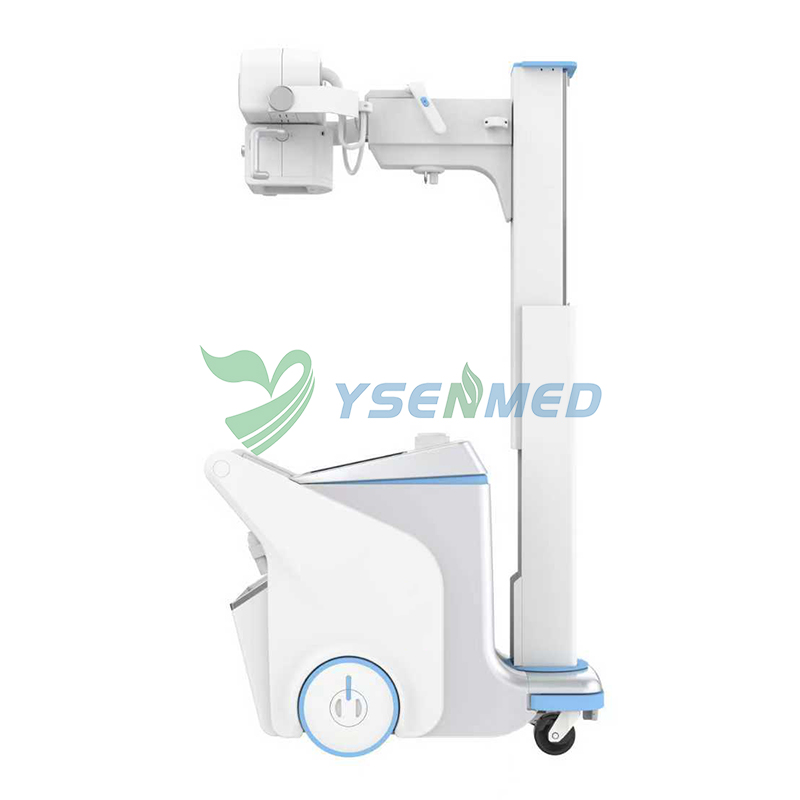

Mobile Stand
Specifications

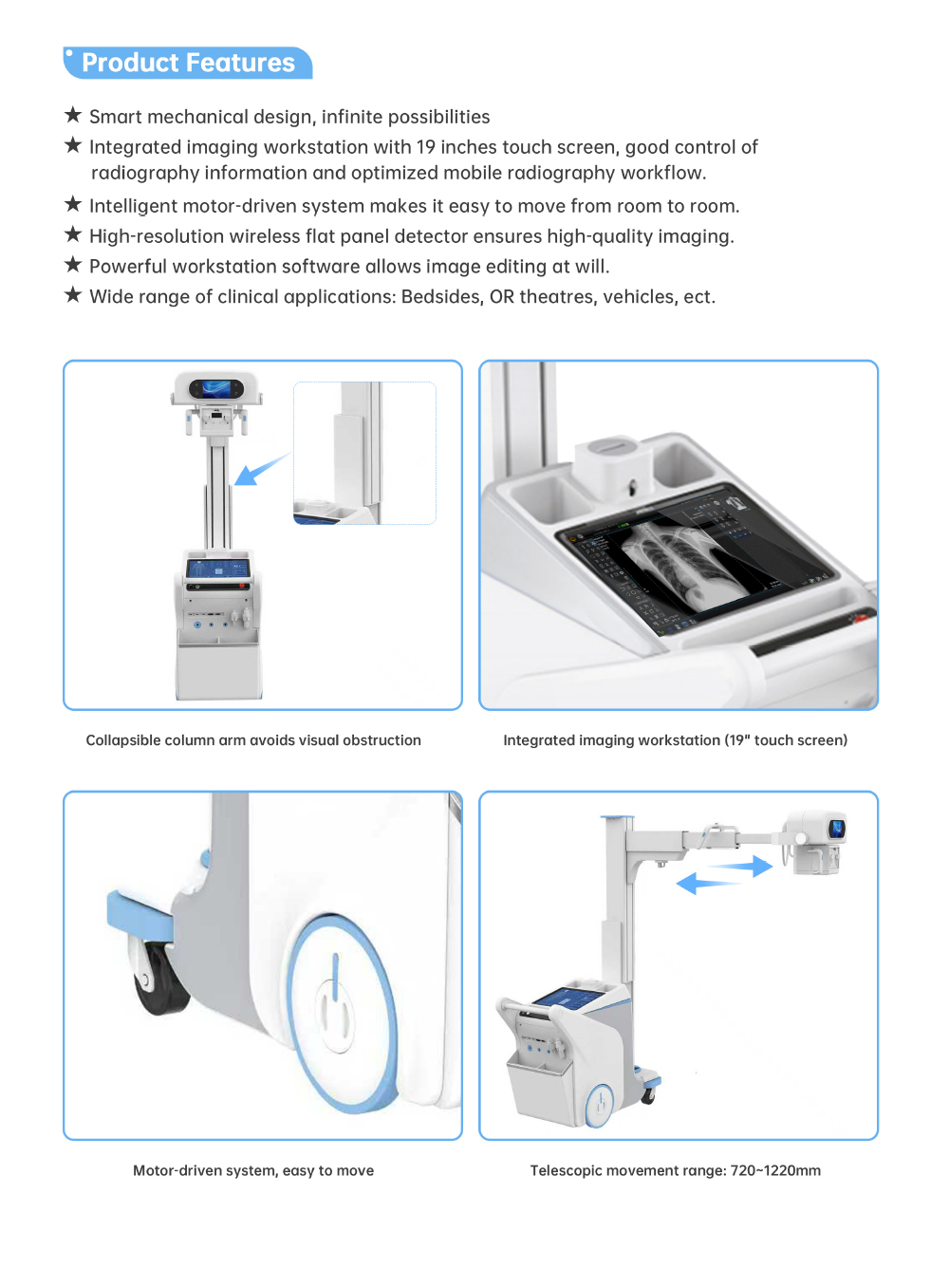

The Vertical Movement Range of X-ray Tube Center along the Column: 600mm-2100mm
The Telescopic Movement Range of X-ray Tube Center along the Column Side: 720~1220mm
Stand Column Horizontal Rotation Range: ±270°
Tube assembly tilting angle: -15° to +90°
Tube assembly rotation in horizontal: ±90°
Collimator Rotation Range along the vertical axis: ±90°
Mobile Stand Size: 1240mm×580mm×1385mm
Collimator
Specifications
Control: Manual
Filter: 1.2mm Al
Light: LED lamp
DX Ray Diagnostic Workstation
Specifications
Display size: 19inch
Pixel matrix: 3072 x 3072pixels
Patient Management: manual registration, WORKLIST automatic query.
Image Acquisition: automatic window adjustment, automatic cropping, automatic transmission.
Image Processing: image correction, image flipping.
Image Observation: window width window level adjustment, image flipping, image rotation, image scaling, and restoration.
Medical Record Report : automatic loading of patient information
Film Printing: support DICOM3.0 standard laser camera printing.
DICOM Transfer: send images to any PACS and workstation that complies with the DICOM 3.0 standard.
