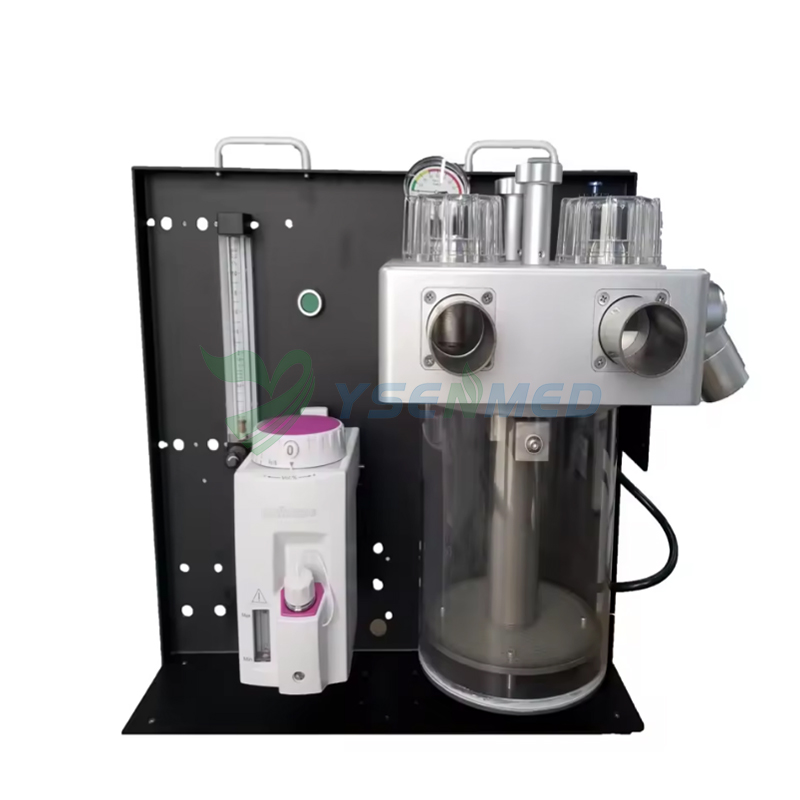

Large Animal Anesthesia Machine/Veterinary Anesthesia Machine
Model:YSAV790V

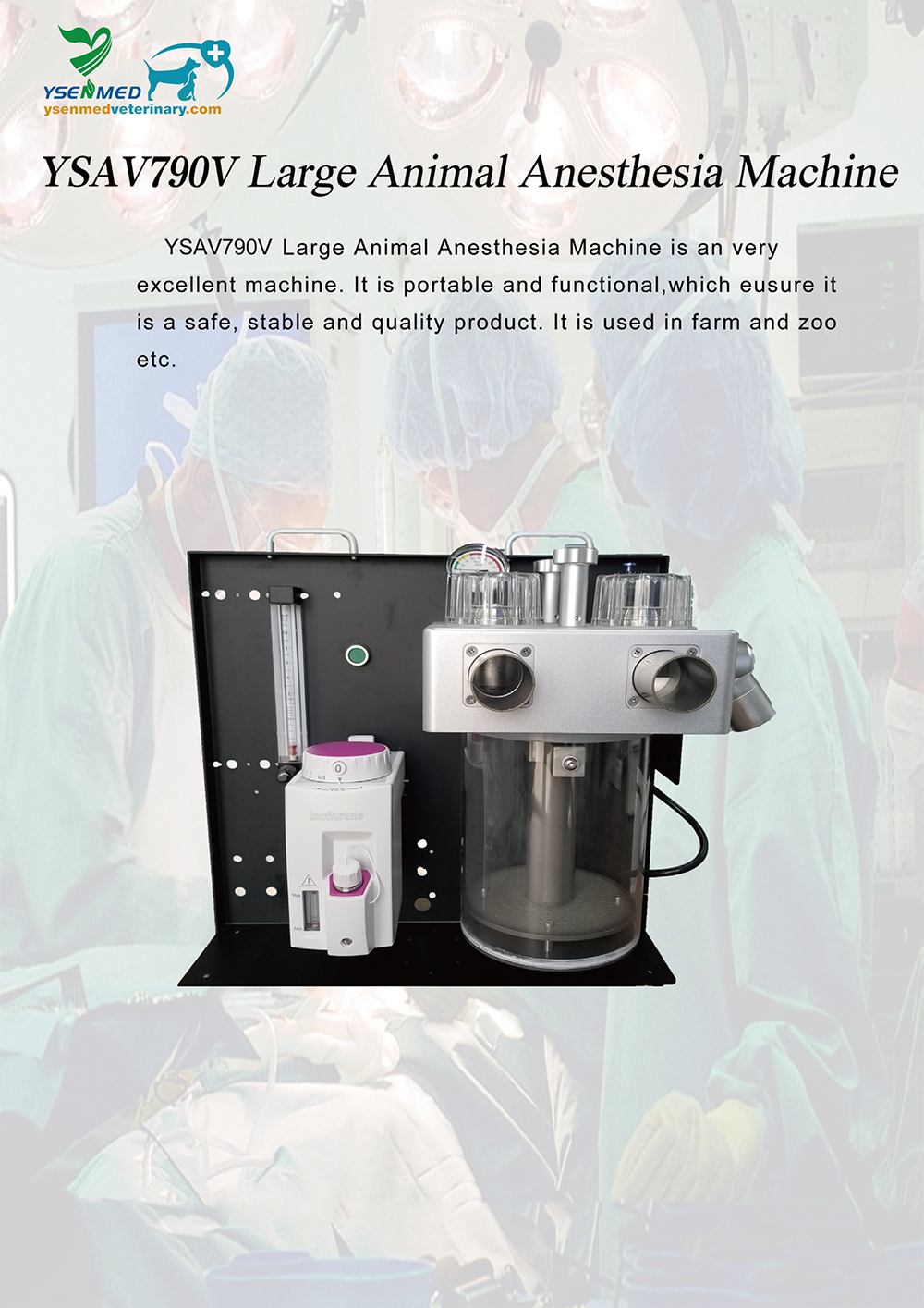

YSAV790V Large Animal Anesthesia Machine is an very excellent machine. It is portable and functional,which ensure it is a safe, stable and quality product. It is used in farm and zoo etc.

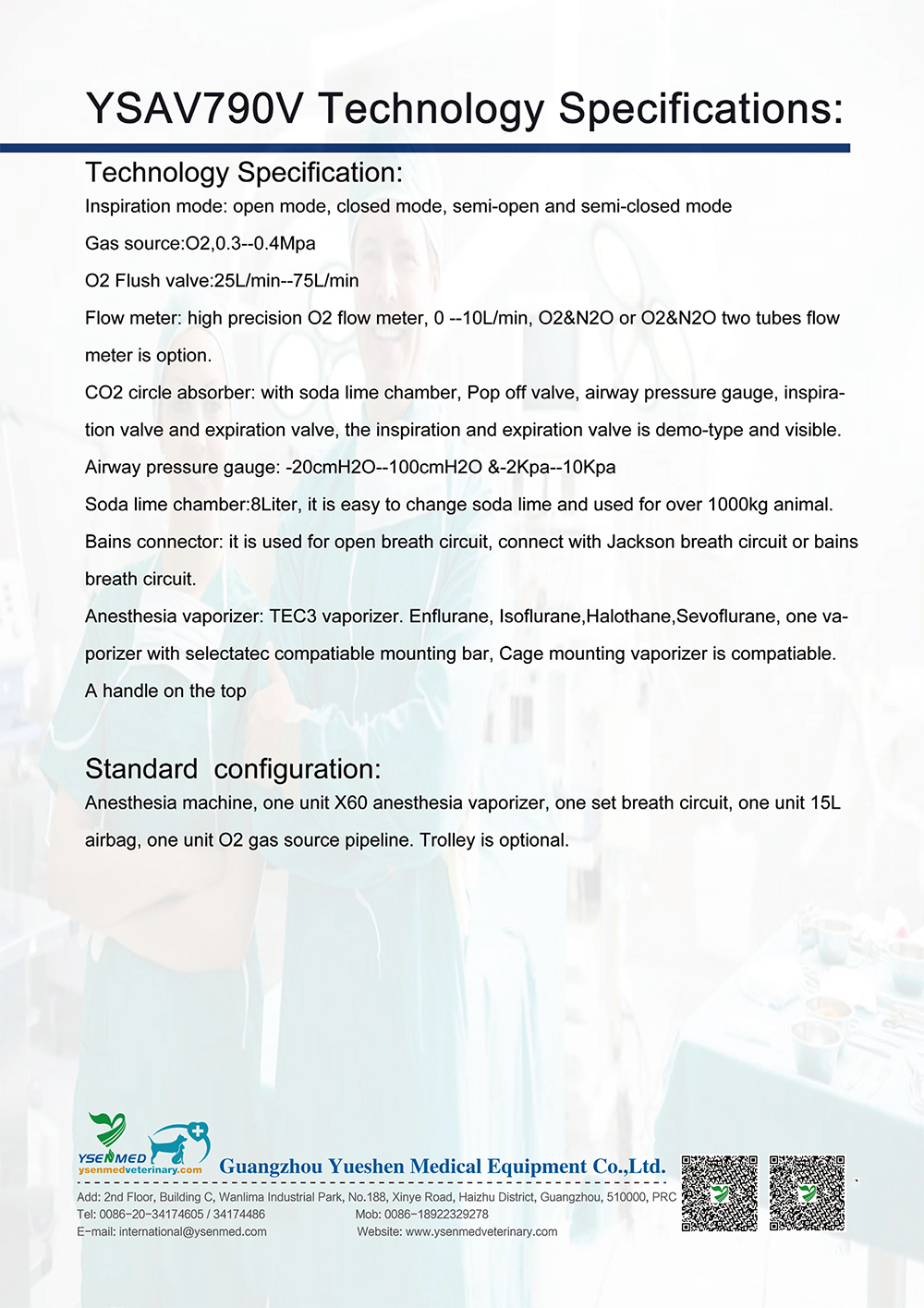

Technology Specification
Inspiration mode: open mode, closed mode, semi-open and semi-closed mode
Gas source:02,0.3--0.4Mpa
02 Flush valve:25L/min--75L/min
Flow meter: high precision 02 flow meter, 0 --10L/min, 02&N20 or 02&N20 two tubes flow meter is option.
CO2 circle absorber: with soda lime chamber, Pop off valve, airway pressure gauge, inspiration valve and expiration valve, the inspiration and expiration valve is demo-type and visible.Airway pressure gauge:-20cmH20--100cmH20 &-2Kpa--10Kpa
Soda lime chamber:8Liter, it is easy to change soda lime and used for over 1000kg animal.
Bains connector: it is used for open breath circuit, connect with Jackson breath circuit or bains breath circuit.
Anesthesia vaporizer: TEC3 vaporizer. Enflurane, Isoflurane, Halothane, Sevoflurane, one vaporizer with selectatec compatiable mounting bar. Cage mounting vaporizer is compatiable.A handle on the top.
Standard configuration
