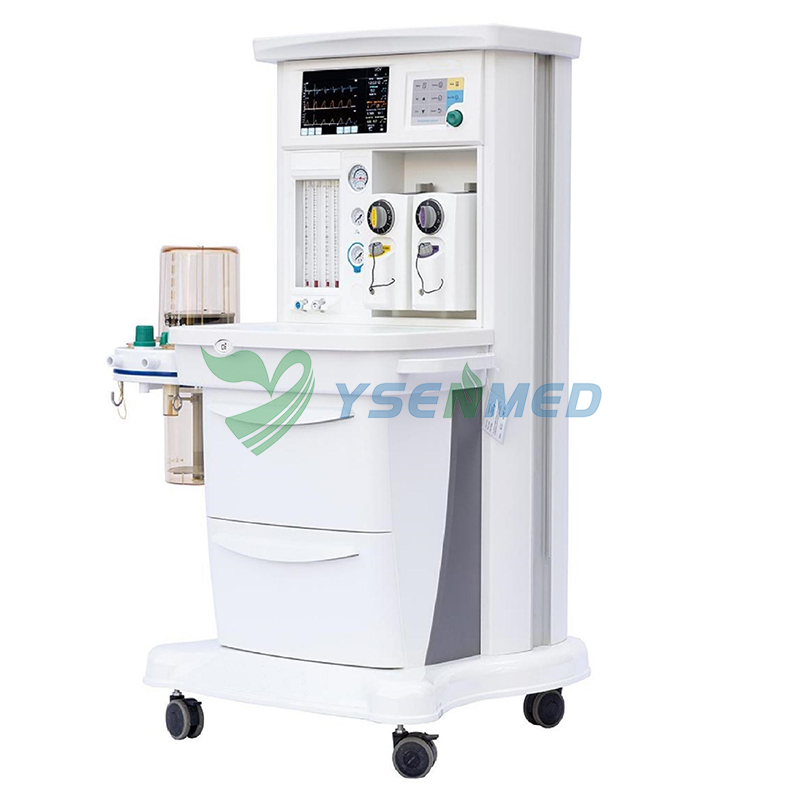

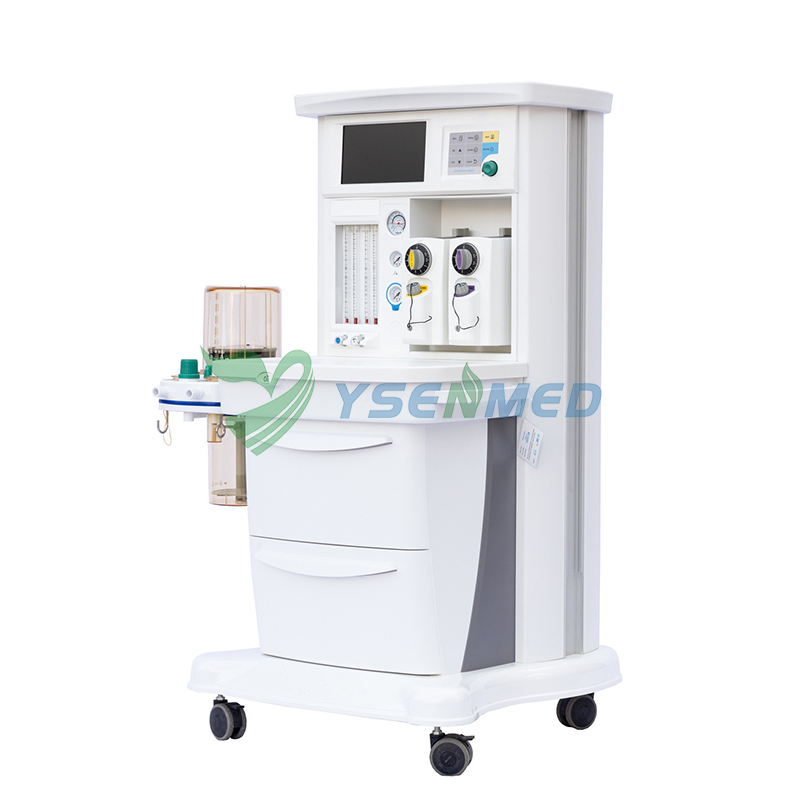

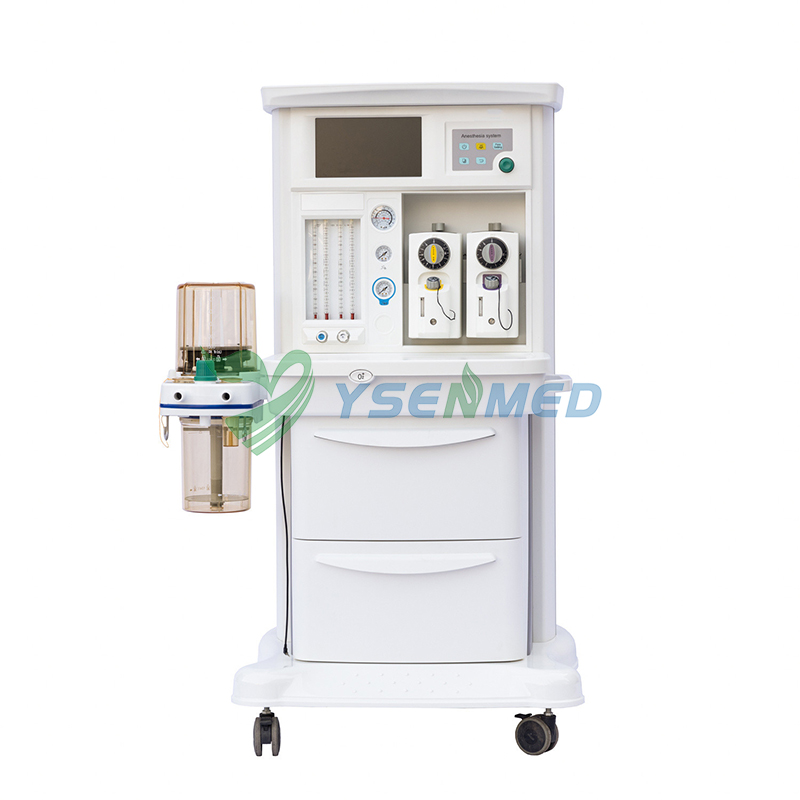

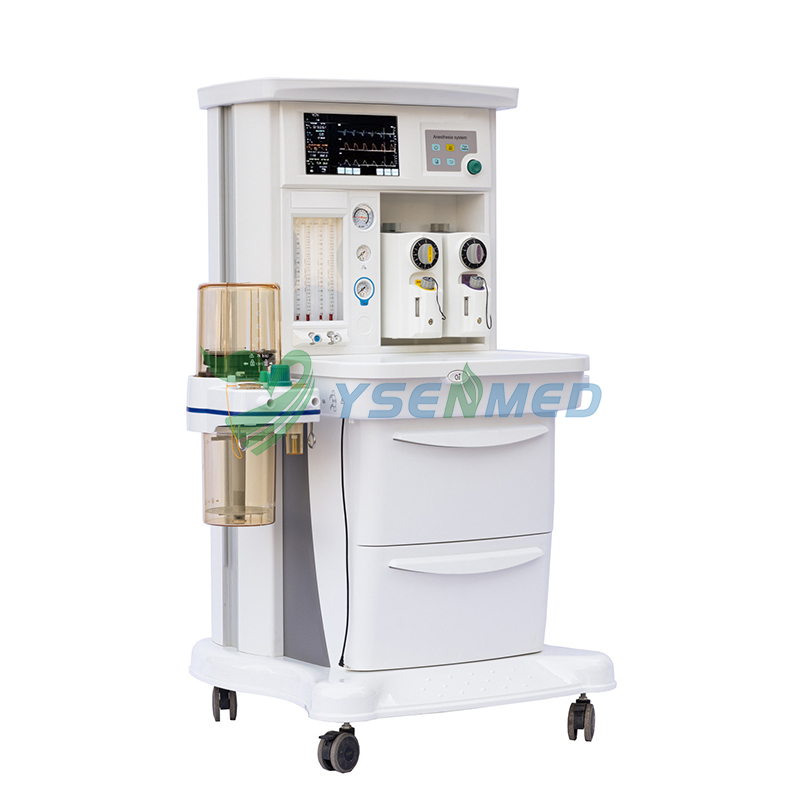

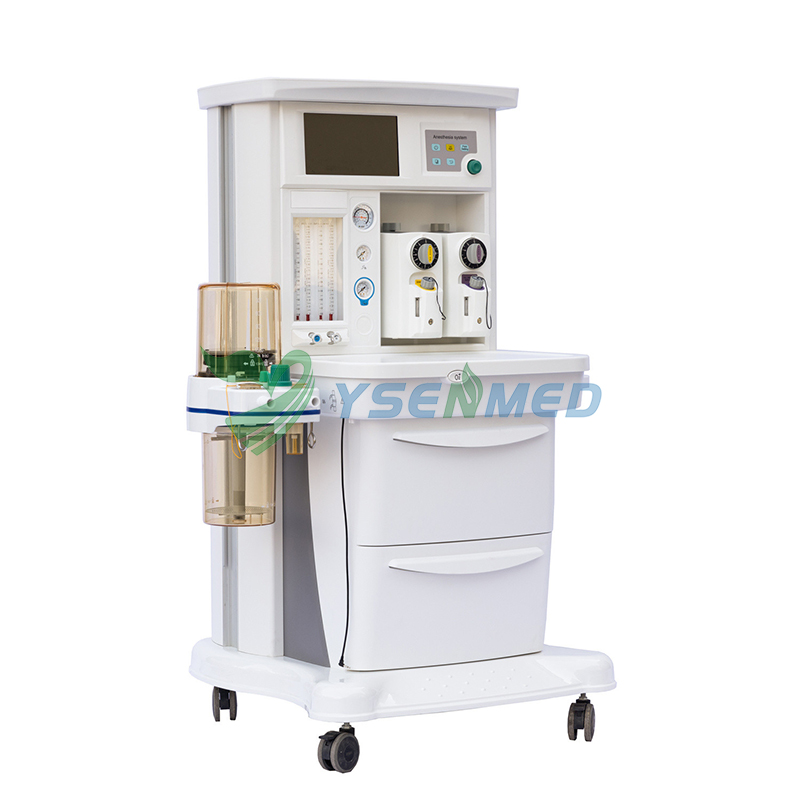

Medical Anesthesia Machine
Model:YSAV6201A

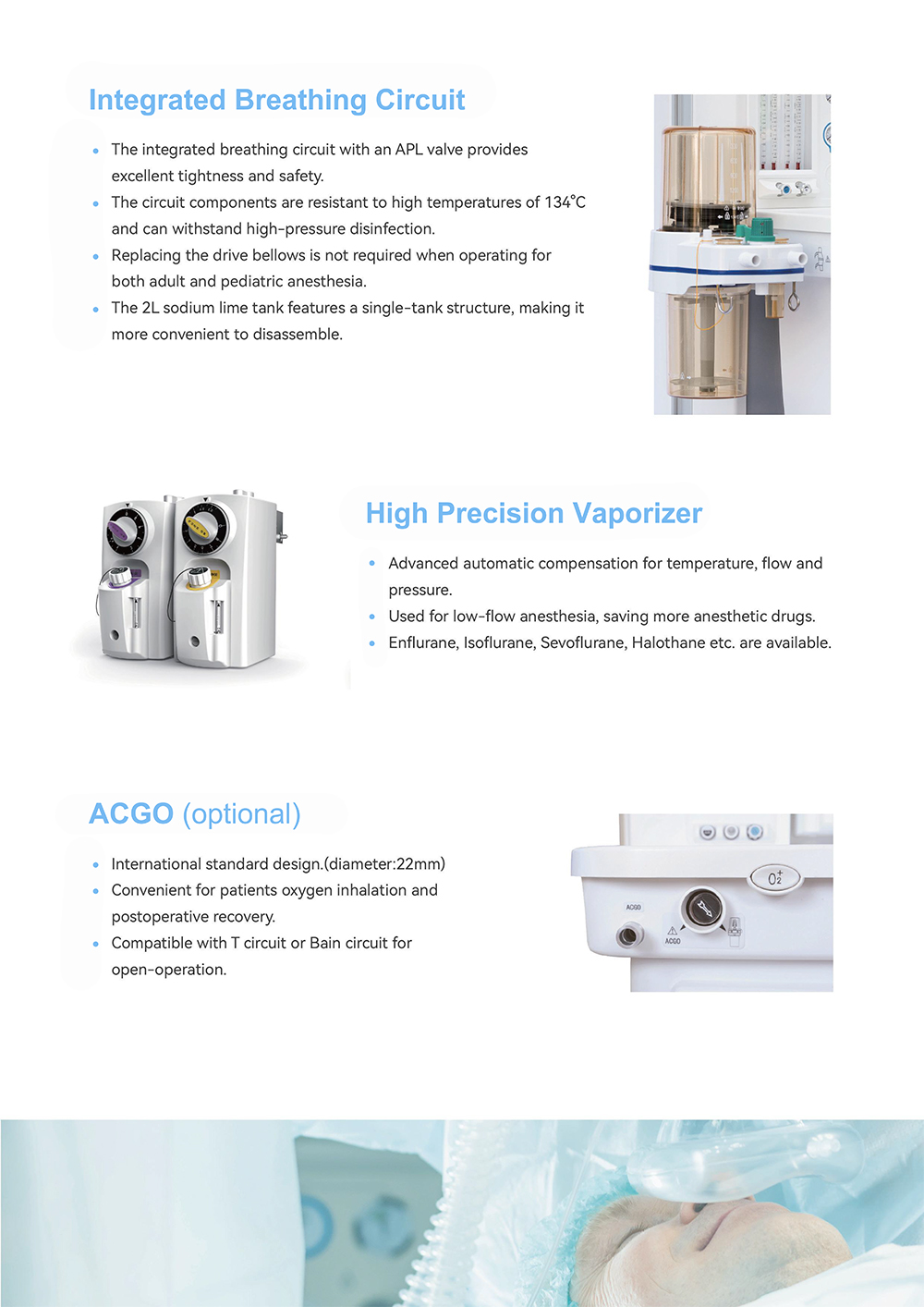

Integrated Breathing Circuit
The integrated breathing circuit with an APL valve provides excellent tightness and safety.
The circuit components are resistant to high temperatures of 134°C and can withstand high-pressure disinfection.
Replacing the drive bellows is not required when operating for both adult and pediatric anesthesia.
The 2L sodium lime tank features a single-tank structure, making it more convenient to disassemble.
High Precision Vaporizer
Advanced automatic compensation for temperature, flow and pressure.
Used for low-flow anesthesia, saving more anesthetic drugs.
Enflurane, lsoflurane, Sevoflurane, Halothane etc, are available.
ACGO (optional)
International standard design.(diameter: 22mm)
Convenient for patients oxygen inhalation and postoperative recovery.
Compatible with T circuit or Bain circuit for open-operation.

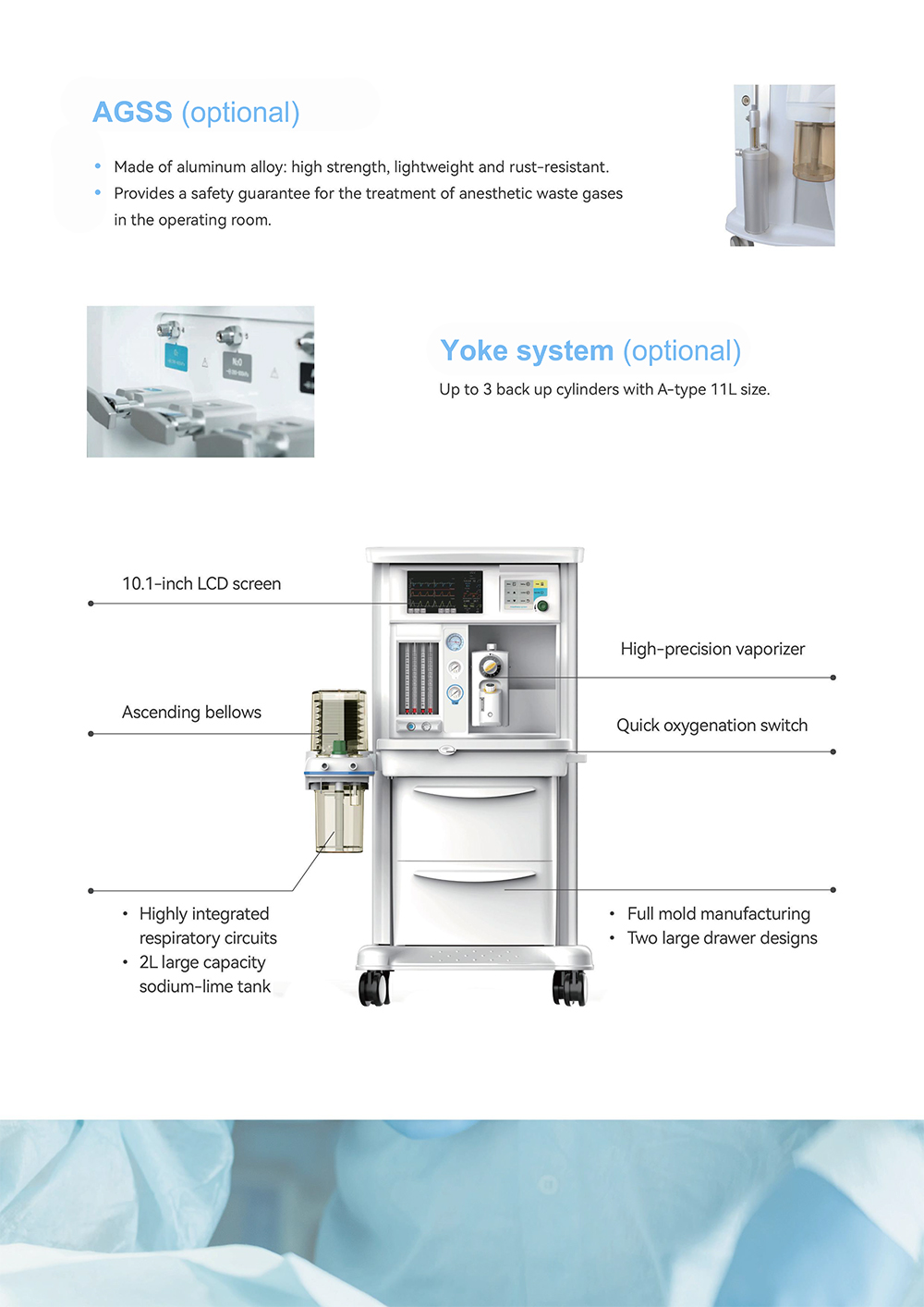

AGSS (optional)
Made of aluminum alloy: high strength, lightweight and rust-resistant.
Provides a safety guarantee for the treatment of anesthetic waste gases in the operating room.
Yoke system (optional)
Up to 3 back up cylinders with A-type 11L size.

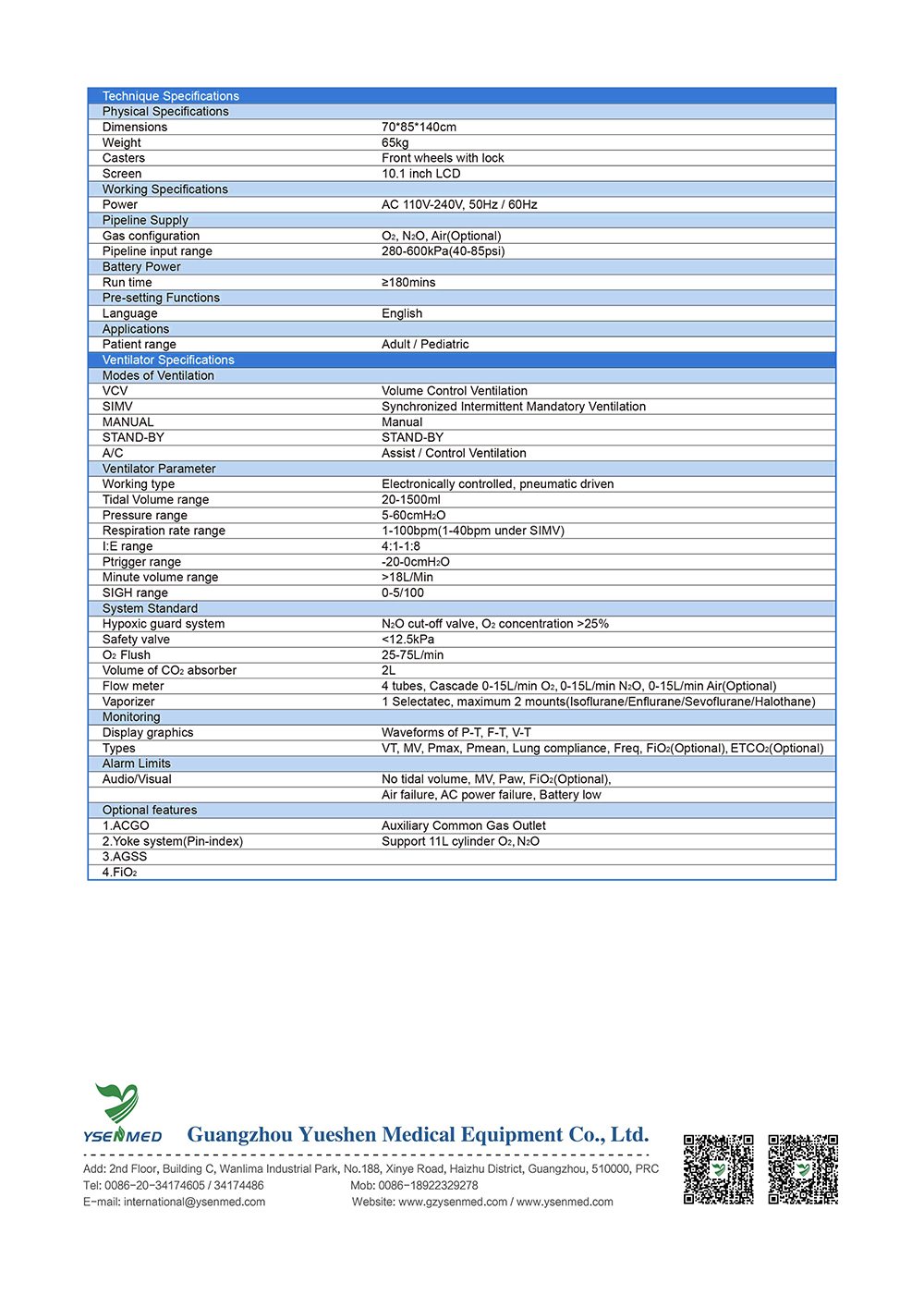

Technique Specifications
Physical Specifications
Dimensions: 70*85*140cm
Weight: 65kg
Casters: Front wheels with lock
Screen: 10.1 inch LCD
Working Specifications
Power: AC 110V-240V, 50Hz/60Hz

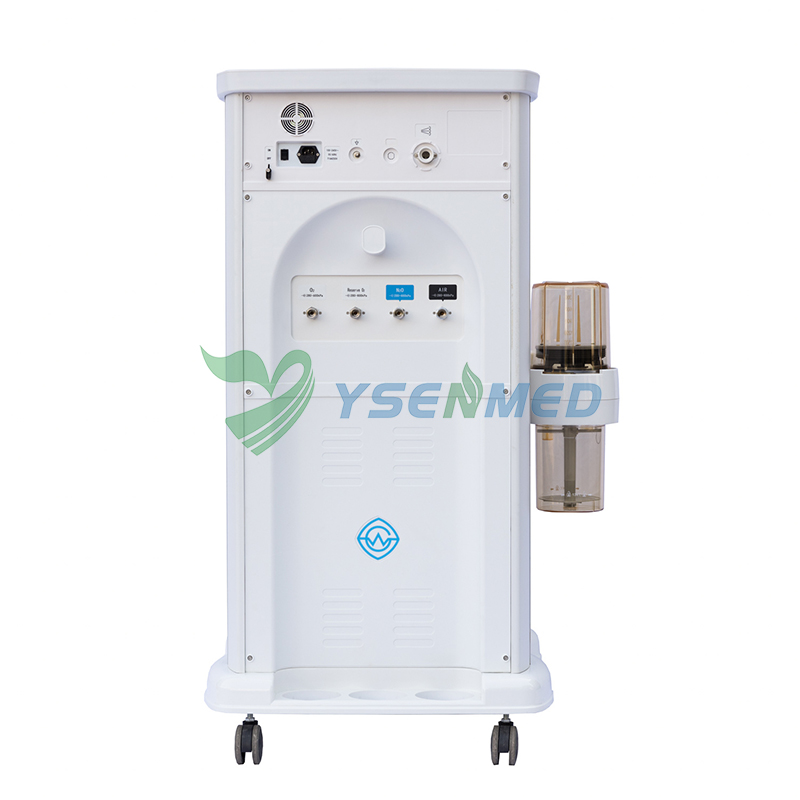

Pipeline supply
Gas configuration: O2,N2O, Air(Optional)
Pipeline input range: 280-600kPa(40-85psi)
Battery Power
Run time: ≥180mins
Pre-setting Functions
Language: English
Applications
Patient range: Adult /Pediatric
Ventilator Specifications
Modes of Ventilation
VCV: Volume Control Ventilation
SIMV: Synchronized Intermittent Mandatory Ventilation
MANUAL: Manual
STAND-BY: STAND-BY
A/C: Assist / Control Ventilation
Ventilator Parameter
Working type: Electronically controlled, pneumatic driven
Tidal Volume range: 20-1500ml
Pressure range: 5-60cmH2O
Respiration rate range: 1-100bpm(1-40bpm under SIMV)
l:E range: 4:1-1:8
Ptrigger range: -20-0cmH2O
Minute volume range: >18L/Min
SlGH range: 0-5/100
System Standard
Hypoxic guard system: N2O cut-off valve, O2 concentration >25%
Safety valve: <12.5kPa
O2 Flush: 25-75L/min
Volume of CO2 absorber: 2L
Flow meter: 4 tubes, Cascade 0-15L/min O2, 0-15L/min N2O, 0-15L/min Air(Optional)
Vaporizer: 1 Selectatec, maximum 2 mounts
(lsoflurane/Enflurane/Sevoflurane/Halothane)
Monitoring
Display graphics: Waveforms of P-T, F-T, V-T
Types: VT, MV, Pmax, Pmean, Lung compliance, Freq, FiO2(Optional), ETCO2(Optional)
Alarm Limits
Audio/Visual: No tidal volume, MV, Paw, FiO2(Optional), Air failure, AC power failure, Battery low
Optional features
1.ACGO: Auxiliary Common Gas Outlet
2.Yoke system(Pin-index): Support 11L cylinder O2, N2O
3.AGSS
