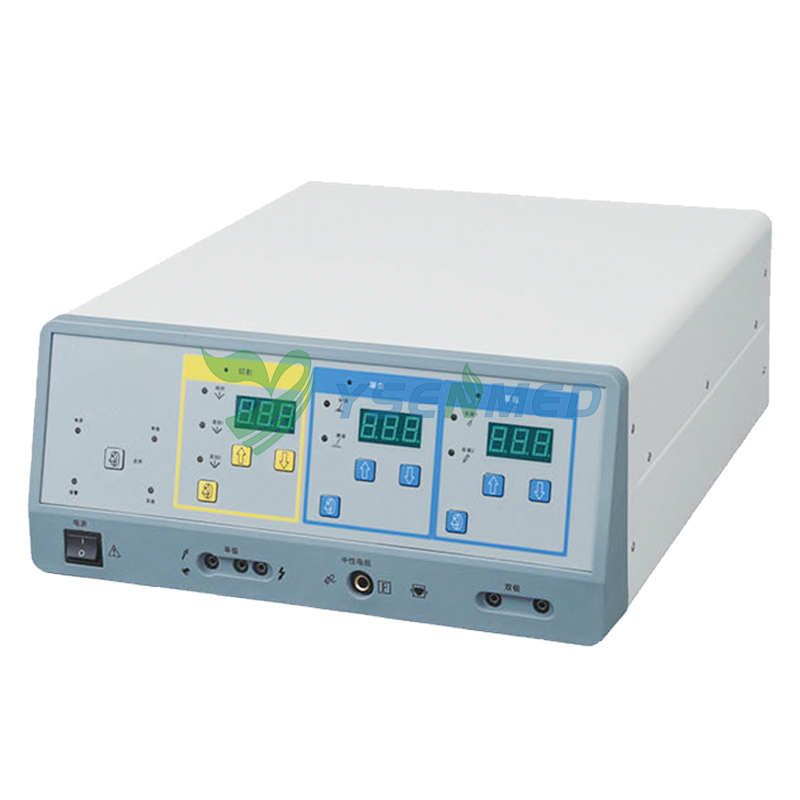

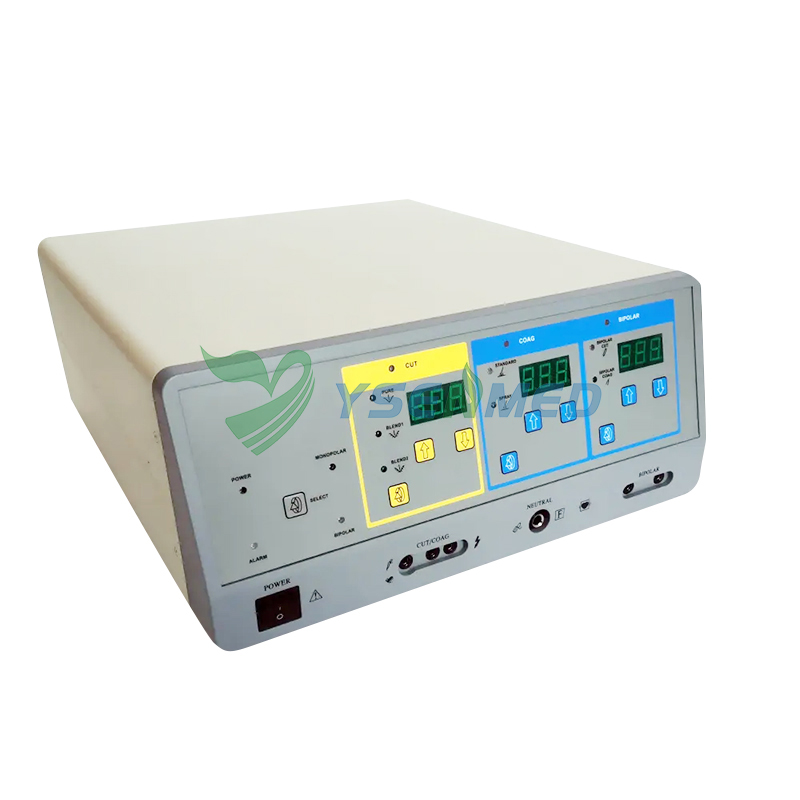

YSENMED medical 400W high frequency electrosurgical generator electrocautery machine
Model:YSESU-400Y
Introduction
High-frequency Electrosurgical Unit is an advanced electro surgery equipment for incision and coagulation of the biological tissue through the high frequency current.It is an excellent substitute for mechanical scalpels due to its simple & safe operation,fast tissue incision and blood coagulation. It is wide use in General surgery,Gynecology,Urology,Oncology, Orthopedics etc.
Features

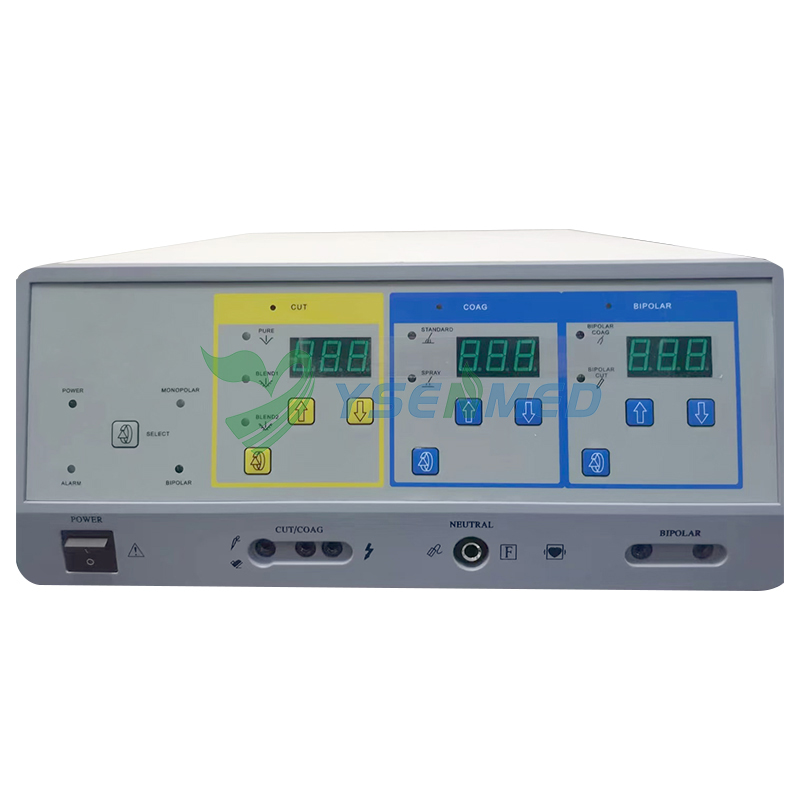

3-zone LED display for clear operating selection;
Advanced & accurate power output control technology;
Multi-function ESU with max 7 working modes;
Dual power output methods by hand switch or foot switch;
Minimal sticking & carbonization, reduce the surgery damage,
Auto detection ofimpedance to protect the patient (REM function).
Different & adjustable operation sounds in case of misoperation,
Support underwater cutting(TURP etc).
OEM projects welcome
Specification
Function Work Mode Frequency Rated Power Gain Interval Form of HF Current
Monopolar
Cut Pure Cut
Blend 1
Blend 2 500KHz
500KHz
500KHz 0-400W/300Ω
0-250W/300Ω
0-200W/300Ω 5 Watt Sine Wave
Modulate Sine Wave
Modulate Sine Wave
Coag Standard
Spray 500KHz
500KHz 0-100W/300Ω
0-70W/300Ω 5 Watt Modulate Sine Wave
Modulate Sine Wave
Bipolar Bipo Cut
Bipo Coag 500KHz
500KHz 0-100W/50Ω
0-70W/50Ω 5 Watt Sine Wave
Modulate Sine Wave

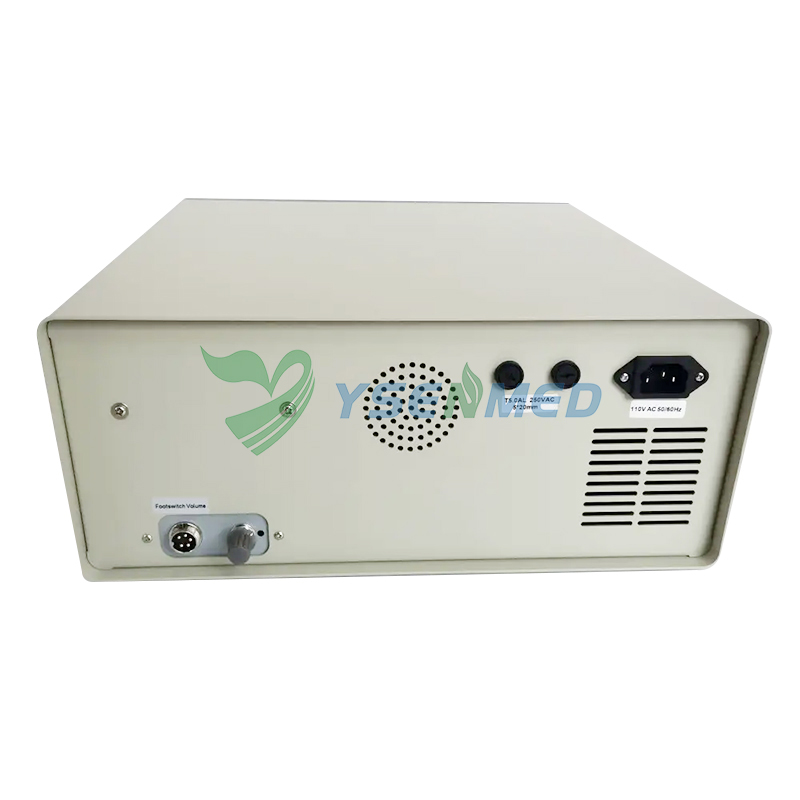

Power Supply
110V,50/60Hz or 220V,50/60Hz
Dimension
Product:421(L)x357(W)x162(H)mm
Package:520(L)x445(W)x305(H)mm
Weight
Net Weight: 8.7kG
Gross Weight: 14.5KG
Standard Accessory
