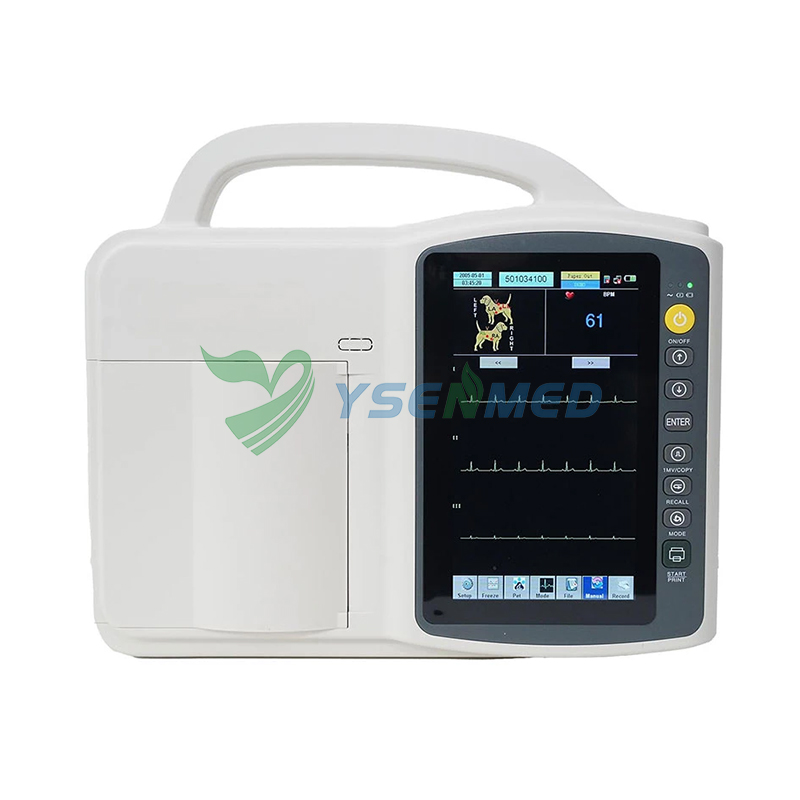

3-channel Veterinary ECG EKG Machine
Model:YSECG300SV

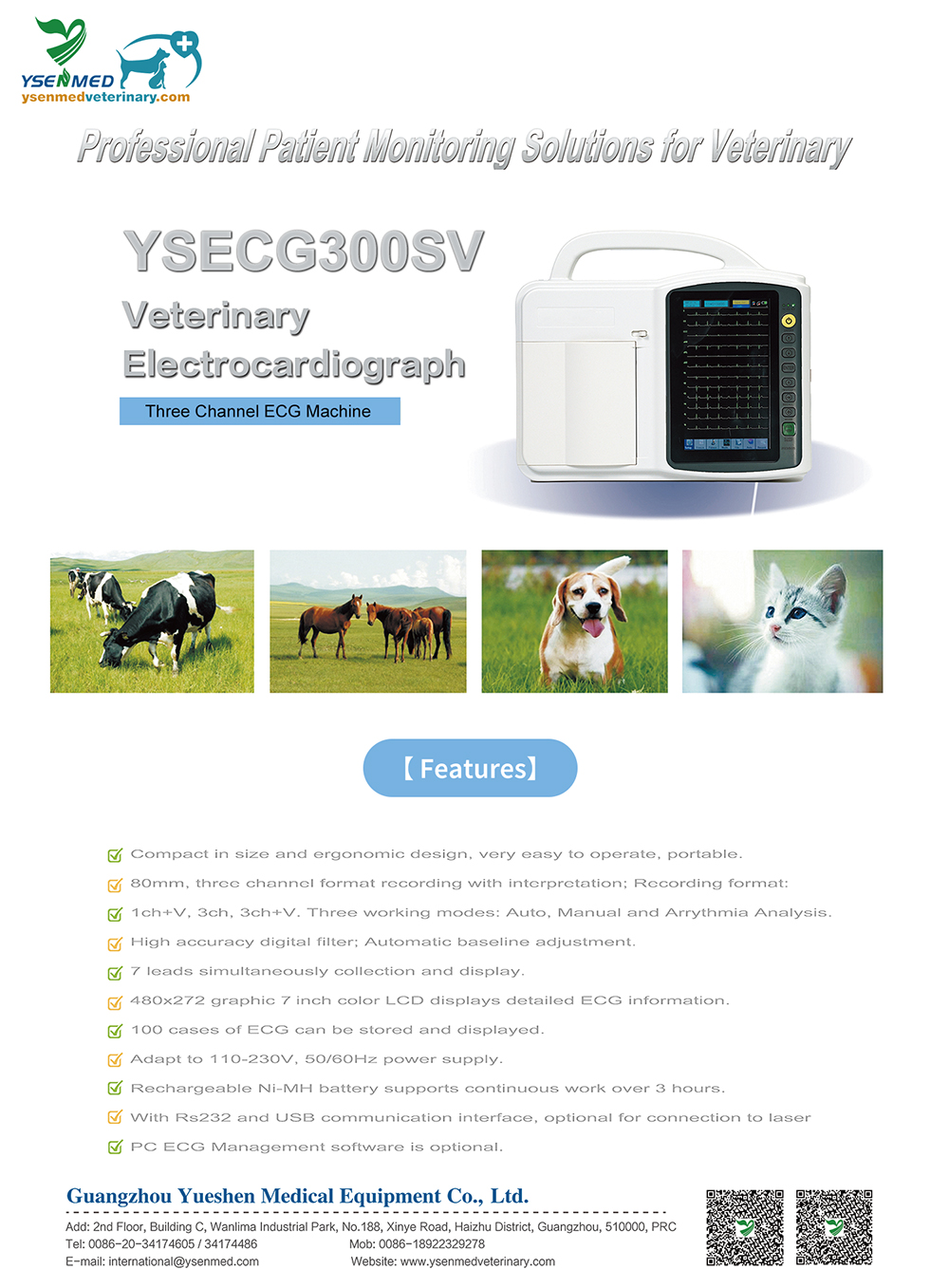

Features
Compact in size and ergonomic design, very easy to operate, portable.
80mm, three channel format recording with interpretation; Recording format.
1ch+V, 3ch, 3ch+V. Three working modes: Auto, Manual and Arrythmia Analysis.
High accuracy digital filter; Automatic baseline adjustment.
7 leads simultaneously collection and display.
480x272 graphic 7 inch color LCD displays detailed ECG information.
100 cases of ECG can be stored and displayed.
Adapt to 110-230V, 50/60Hz power supply
Rechargeable Ni-MH battery supports continuous work over 3 hours.
With Rs232 and USB communication interface, optional for connection to laser.
PC ECG management software is optional.

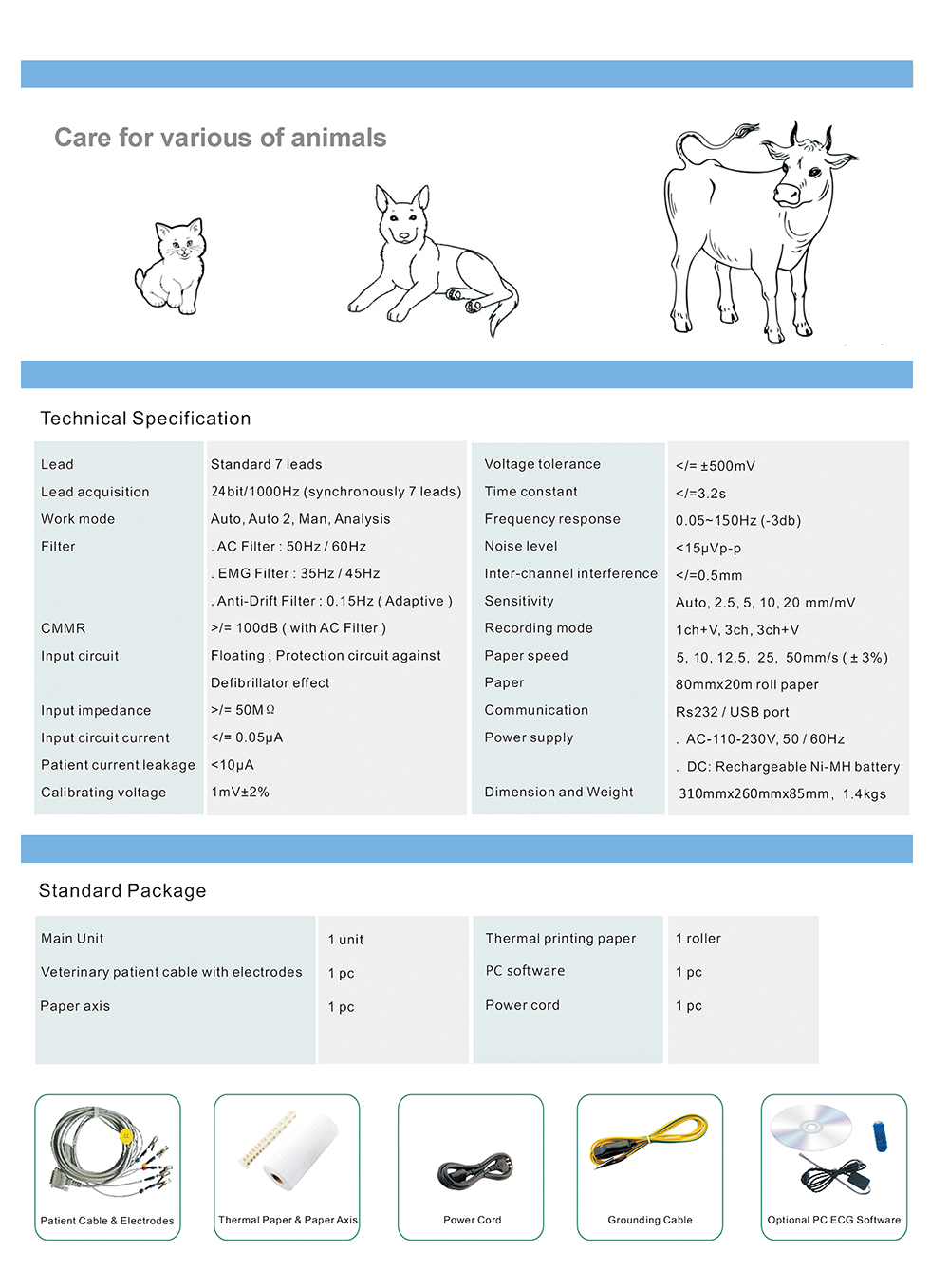

Technical Specification
Lead: Standard 7 leads
Lead acquisition: 24bit/1000Hz(synchronously 7 leads)
Work mode: Auto, Auto 2, Man, Analysis
Filter:
AC Filter: 50Hz/60Hz
EMG Filter: 35Hz/45Hz
Anti-Drift Filter: 0.15Hz(Adaptive)
CMMR: >/= 100dB(with AC Filter)
Input circuit:
Floating; Protection circuit against
Defibrillator effect
Input impedance: >/= 50MΩ
Input circuit current: = 0.05μA
Patient current leakage: <10μA
Calibrating voltage: 1mV±2%
Voltage tolerance: =±500mV
Time constant: =3.2s
Frequency response: 0.05~150Hz(-3db)
Noise level: <15μVp-p
Inter-channel interference: =0.5mm
Sensitivity: Auto, 2.5, 5, 10, 20 mm/mV
Recording mode: 1ch+V, 3ch, 3ch+V
Paper speed: 5, 10, 12.5, 25, 50mm/s(±3%)
Paper: 80mmx20m roll paper

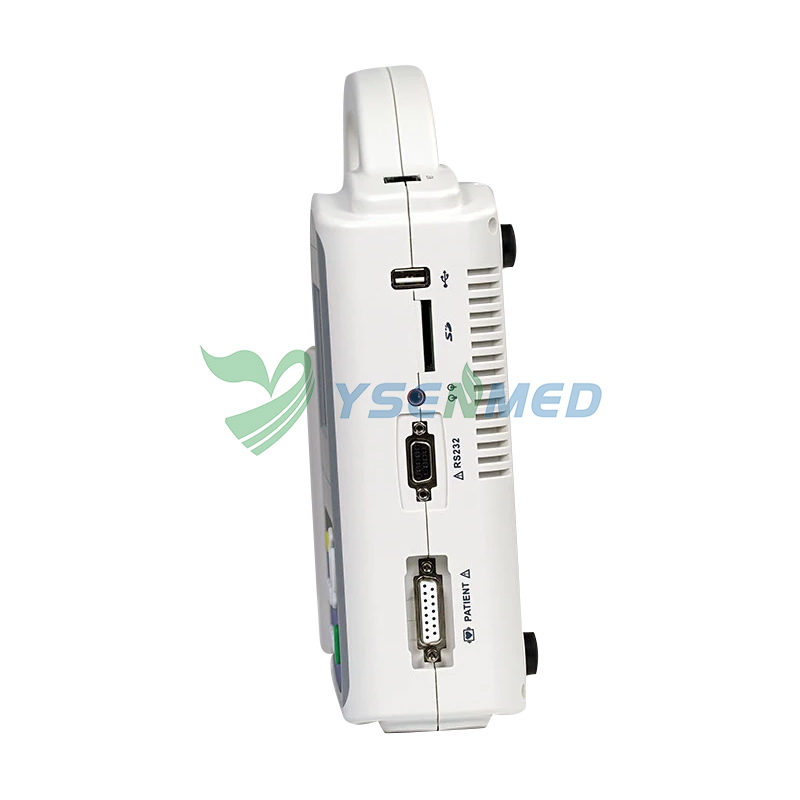

Communication: Rs232/USB port

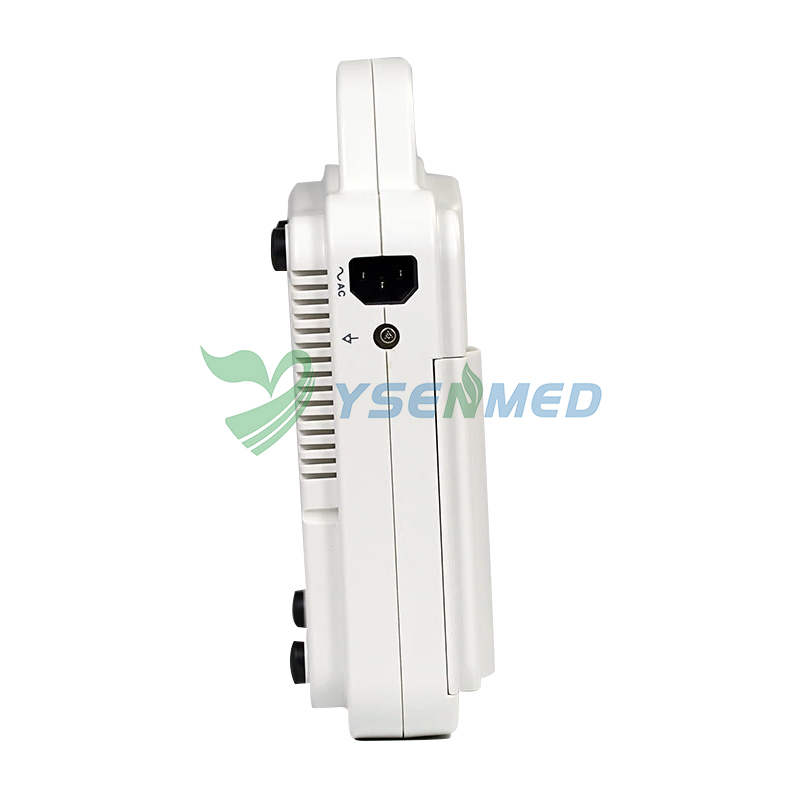

Power supply:
AC-110-230V, 50/60Hz
DC: Rechargeable Ni-MH battery
Dimension and Weight: 310mmx260mmx85mm, 1.4kgs
Standard Package
Main Unit: 1 unit
Veterinary patient cable with electrodes: 1 pc
Paper axis: 1 pc
Thermal printing paper: 1 roller
PC software: 1 pc
